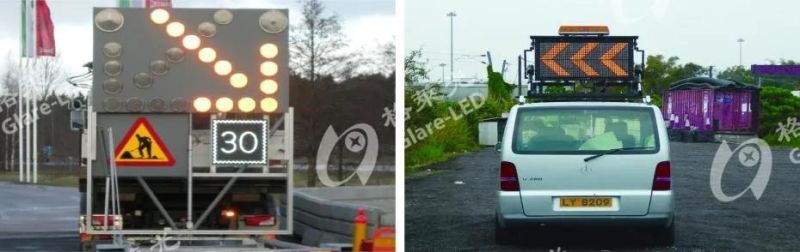

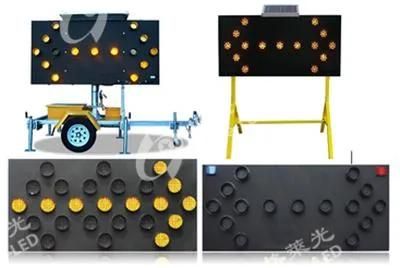

Road construction often leads to road congestion even traffic accidents. LED Car-oriented board is mainly for temporary ease road congestion when there is a traffic jam, the glowing LED indicator arrow provides drivers with a clear direction, which plays an important role in avoiding accidents and insuring the smooth of roads. And it is essential for (especially for the highway) construction work vehicles. LED car-oriented board is generally composed of LED light tubes, which has led traffic lamps with high brightness and they are controlled by the control system. A combination of different light blinking tubes can display different directions or instruction graphics, solar panels can also be installed. PARAMETERSParametersProduct name | 15 LEDs Guide Display | 22 Light tube LED Guide Display | 25Light tube LED Guide Display |
LED Tube | 15pcs | 22pcs | 25pcs |
Wave length | 590-594nm | 590-594nm | 590-594nm |
Color | Yellow or Red | Yellow or Red | Yellow or Red |
Brightness | 6000mcd above | 6000mcd above | 6000mcd above |
Life time | 100000 hours | 100000 hours | 100000hours |
Viewing angle | 30° | 30° | 30° |
Viewing distance | ≥1000m | ≥1000m | ≥1000m |
Protection level | IP65 | IP65 | IP65 |
Material | Aluminum ,Iron alloy,plastic | Aluminum ,Iron alloy,plastic | Aluminum ,Iron alloy,plastic |
Product size | 1200*600*70mm | 1200*600*70mm | 1500*750*70mm |
Guide function | Left ,right ,Left and right | Left ,right,left and right | Left ,right,left and right |
Working voltage | DC12V or 24V | DC12V or 24V | DC12V or 24V |
Working temp | -40ºC~+80ºC | -40ºC~+80ºC | -40ºC~+80ºC |
PRODUCT FEATURENovel structure, good- looking appearance;
Aluminum carton or sheet metal iron etc, with a waterproof level of IP65;
Energy saving, LED light-emitting adopted, low power consumption;
Visual distance more than 1000 meters;
Unique optical system, uniform chroma;
Long service life ≥100000 hours;
Flexible control methods, manual control or remote control;
Application Area Widely used in expressway, toll gate, tunnel, etc...
