Basic Info.

Model NO. SF08 Pixel Density 15625 DOT/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, FCC Cabinet Color Black Cabinet Material Die Cast Aluminum Best Viewing Distance >16m Module Size 320*160 Cabinet Size 960mm*960mm LED Nationstar SMD2727 IC Mbi5124 Power Supply G-Energy Install Type Outdoor Fixed Transport Package Plywood Case or Flight Case Specification Cabinet size 960*960*110mm Trademark None Origin Shenzhen, China HS Code 8528591090 Production Capacity 4000 M2/Month

Product Description

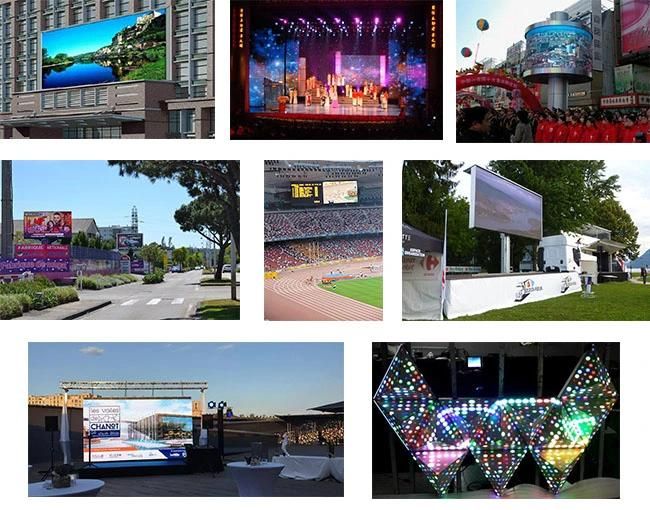

Application:
1. It's a kinds of advanced LED screen for outdoor fixed installation.
2. It is slim and light weight cabinet design.



Product feature:
1. Slim and light weight cabinet design, nice cabinet outlook.
2. High brightness.
3. High quality.
4. High waterproof and protection grade.



Specification:

1	Model No.	SF08
2	Pixel Pitch (mm)	8
3	Module Size (mm)	320*160
4	Module Resolution (pixels)	40*20

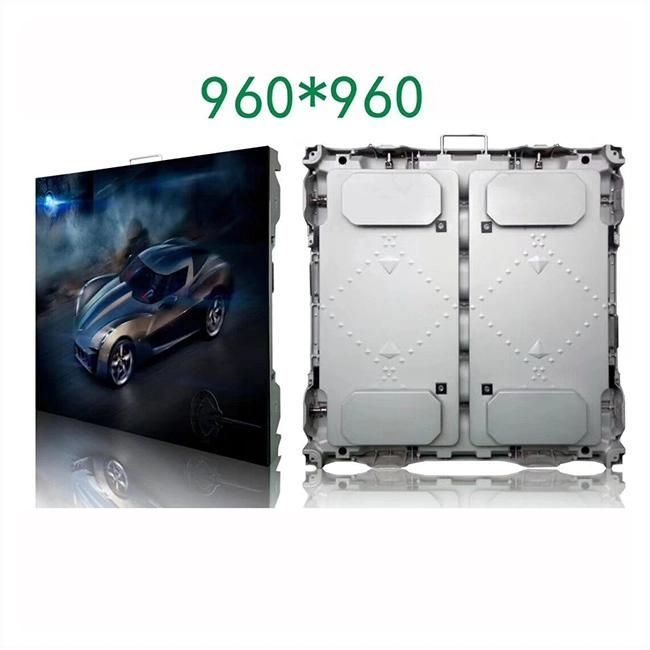

5	Cabinet Size (mm)	960*960*110
6	Cabinet Resolution (pixels)	120*120
7	Pixel configuration	1RGB
8	LED Encapsulation	SMD2727 NationStar
9	Work Voltage (DC)	5V
10	Driver Mode (Scan)	1/4
11	Cabinet Weight (kg)	30KG
12	Physical Density (pixels)	15625
13	Brightness (NIT)	6300
14	Gray Scale (BIT)	14
15	Contrast Ratio	3000:1
16	Refresh Rate (Hz)	1920
17	Viewing Angle (H/V)	±140°/±140°
18	Protection Grade	IP65
19	MAX Power Consumption (W/m²)	1000
20	Average Power Consumption (W/m²)	300
21	Work Temperature	-20ºC~50ºC
22	Work Humidity	10%RH~90%RH
23	Optimal Viewing Distance	≥16m
24	Input AC Power	110V or 240 V, 50Hz or 60Hz

The advantages:
1. Light weight.
2. Easy installation.
3. High brightness.
4. Reliable quality grarantee.
5. Superb ingress protection.
6. The color of the cabinet can be chosen.





About us:
We are a trade factory in Shenzhen with 6 years experience. There are professional develop engineers, experienced sales engineers, and skillful workers.
1. If you want to develop a new design LED screen, please contact us. We can help you.
2. If you have a new project/order but don't know how to process it, please contact us. We can help provide the best solutions/scheme, and guide you.
3. If you are searching for alternative suppliers, please contact us. We are professional.


Factory:
(The pictures below were taken during night, after most of the workers off work)
1. Skillful workers who have worked more than 6 years in our factory.
2. High technology auntomatic machines.
3. Aging test + Grayscale test for each module.



Delivery and payment:
1. Production time for 0-200 m² LED screen is about 25 days. (Including aging test).
2. Payment term: T/T, 30% in advance and 70% before shipping.
3. Trade term: FOB Shenzhen, CIF, DDU, DDP.
4. Plywood case or flight case provided.
