Item

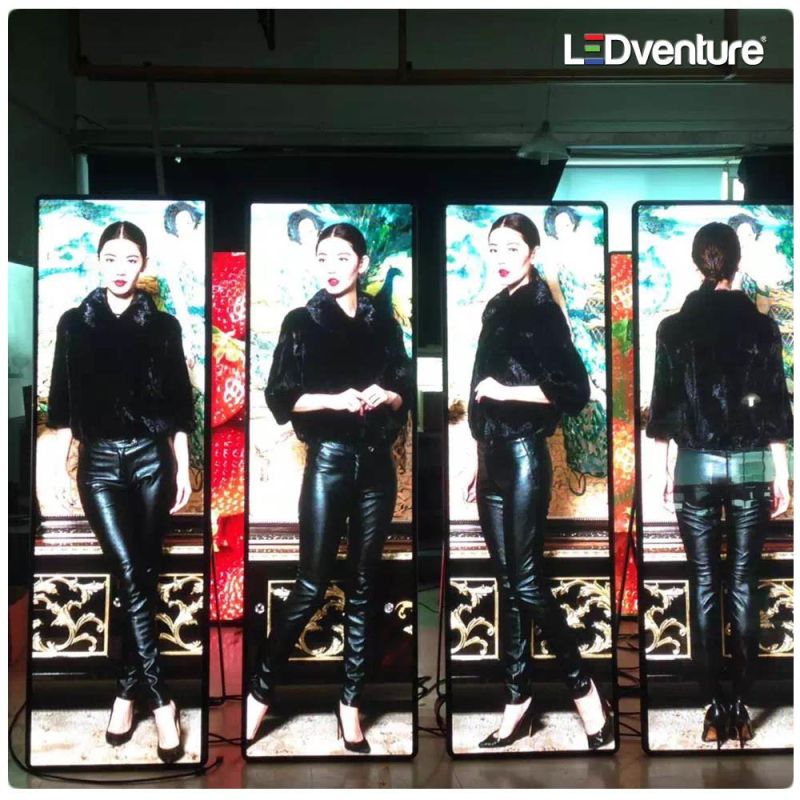

Indoor Outdoor Standing Poster Advertising Series LED Display Screen

Model Number

IPA-P3

Pixel Pitch

3mm

Pixel Density(pixels/M2)

111111 pixels

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size(mm)

192x192mm

Module Resolution(pixels)

64*64 pixels

Min.Viewing Distance(m)

3 meters

Brightness(nits)

1000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/16 Scan

Protection Level

IP31

Cabinet Size(mm)

576x1920mm



Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

<100 meters

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization



Part 5: Installation Methods

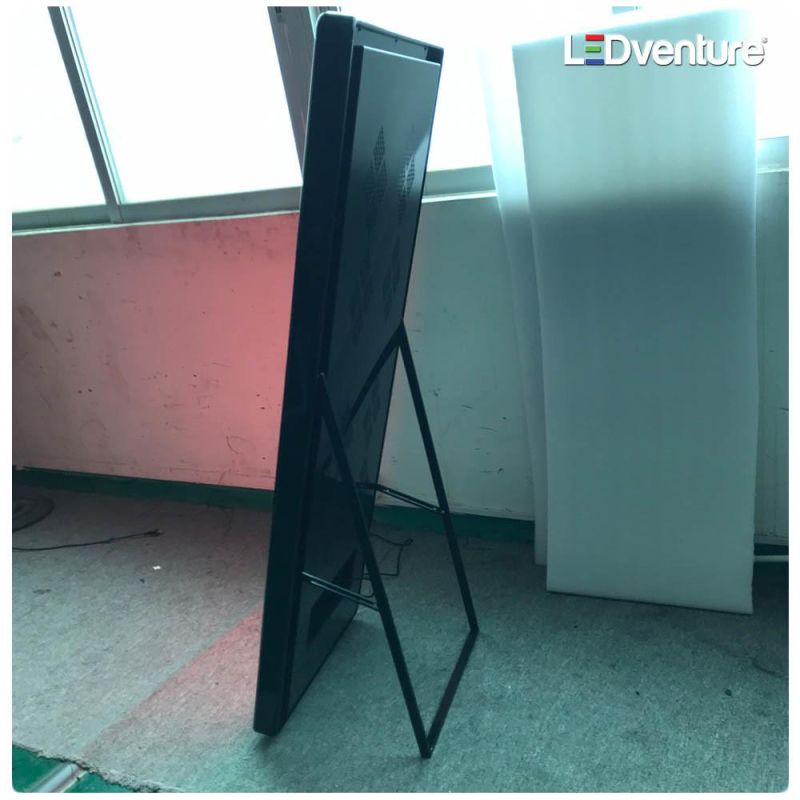

Standing use, no installation required, easy to move and carry

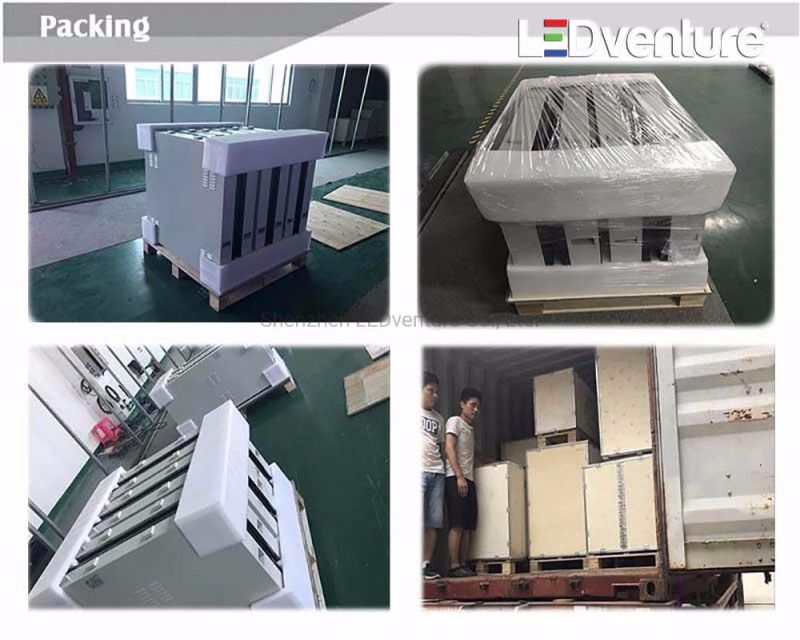

Part 6: Packing and Shipping



Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

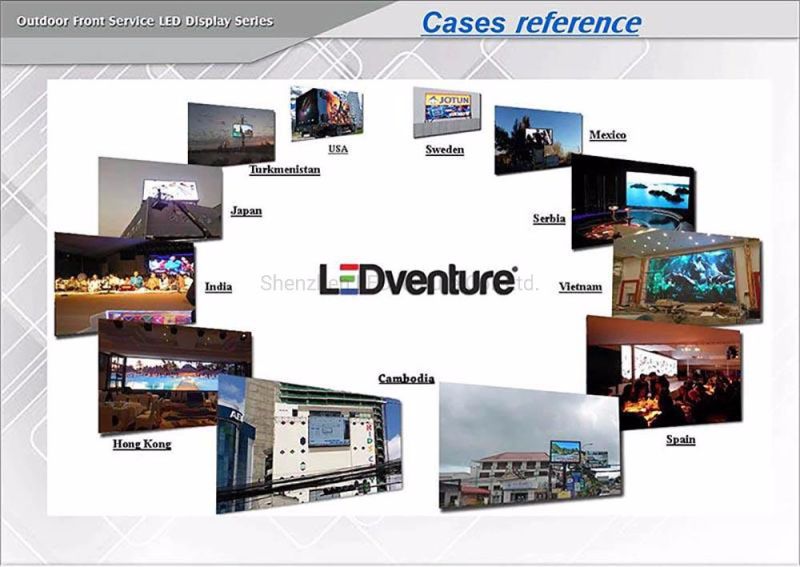

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
