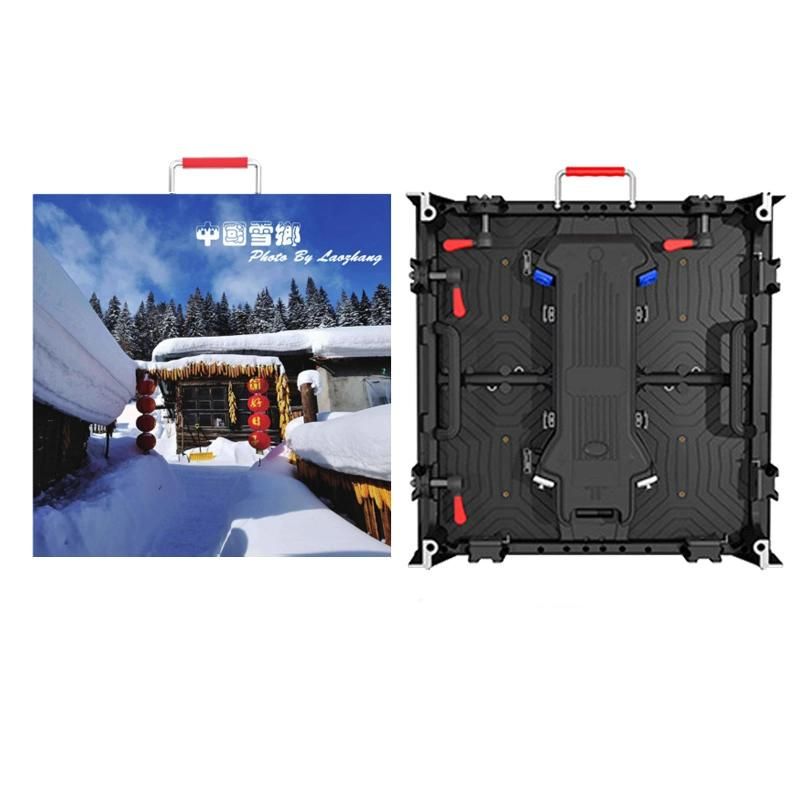

1Pixel Pitch5.95 mm2Pixel Configuration3 in1, SMD35353Module Resolution 42dots  * 42 dots                 4Module Pixles1764 dots5Module Size250 mm* 250 mm  Cabinet Specification1Cabinet Size(WXHXD)500 Lx 1000 H  mm2Cabinet Resolution84 x168pixels3Module Quanity2*4=8 pcs4Cabinet Pixels14112 dots5Pixel Density65410 dots/m26Average Power Consumption300 W/m27Max. Power Consumption 750 W/m28Cabinet MaterialDie Casting Aluminum9Cabinet Weight12KG/PCSScreen Parameters1led lamp SMD35352Cabinet  Size500 mm x 500mm or 500mm x 1000mm3Brightness≥6500 CD/sqm 4Brightness(Max./Min.)1.2:15Driving Method1/7constant current6View AngleHorizontal 140° Vertical 140°7Optimal Viewing Distance4M --50 M8Brightness ControlRed,Green and Blue 256 Grade/Each9Fresh requency> 1920 HZ10Frame Frequency60 Hz11Input VoltageAC220V/50Hz or AC110V/60Hz12Defects Rate≤0.0000113Power ConsumptionMax.: 950 W/sqm                          Average: 350W/sqm14screen Weight≤12 kg/ cabinet15MTBF>10,000 hours16Life span≥100,000 hours17Module Display Brightness Uniformity<2%18Earth Leakage Current< 3mA19Protective GradeIP 6520Temperature-operating-25ºC~65ºC 21Humidity-operating10%~95%22Controlling systemLINSN Or Nova.To use the current-sharing backup power supply ,to keep the displays work well always ,never failure..Automatically to detect the power supply working status..Gilded contectors to connect all modules together to make it more reliable compare with use flat-cable.Ultra slim and light.High contrast ratio, high gray scale, wide viewing angle..Standard cabine

Specail design PCB board to use high refresh rate nxp245 IC , SUM20167

 Specail design hub card to connector all the modules , instead of the flat signal cable to make signal more steady

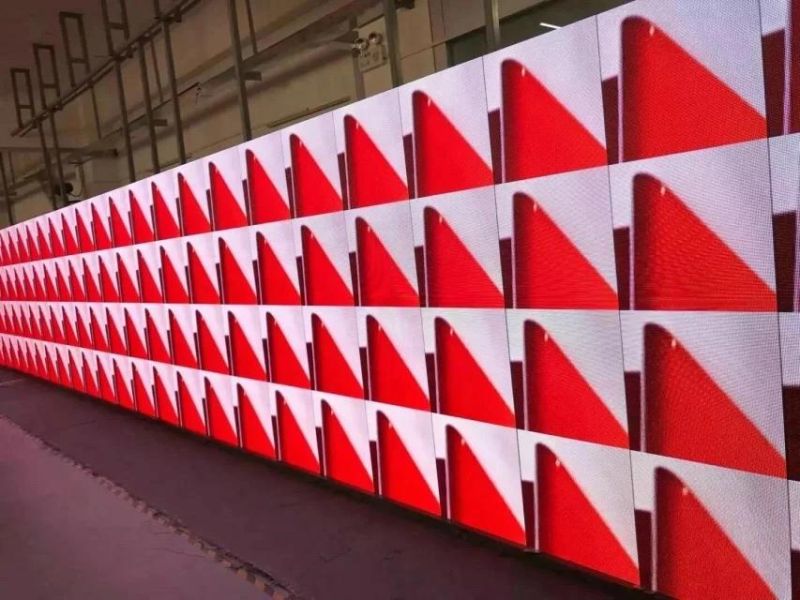

LED Screen aging :
