Basic Info.

Model NO. led display p2.97 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001 Product Name P2.97 Indoor LED Display Driver IC Mbi5153 Bightness CD/Sqm 1000 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Refresh Rate 1920Hz Color Temperature 6500K-9500K Warranty 3 Years Transport Package Wooden Case, Flight Case, and Carton Specification 500*500mm Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 1000sqm/Month

Product Description

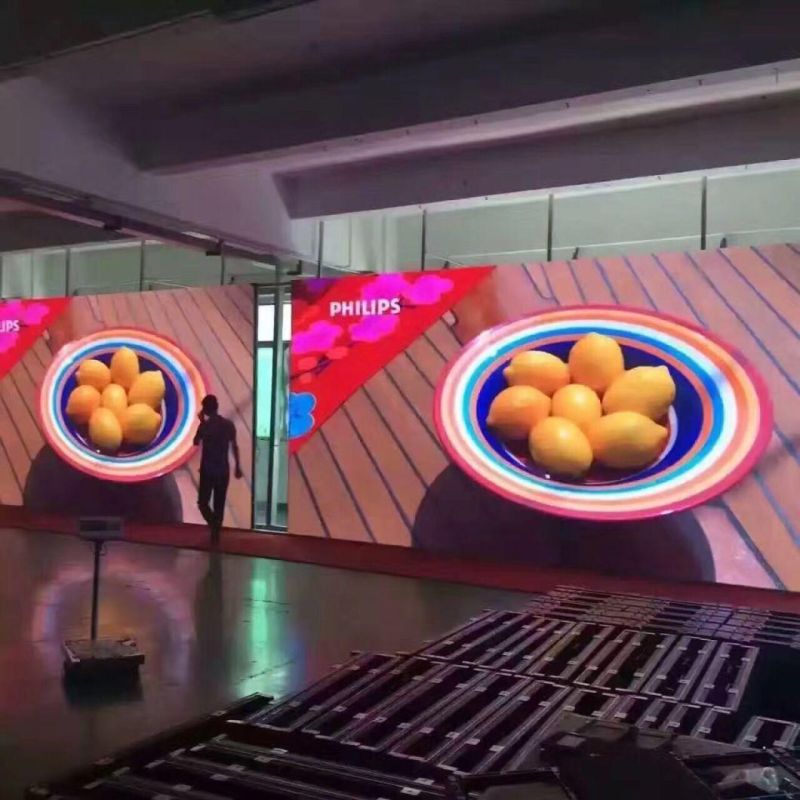

Indoor P2.97 Full Color LED display Screen Signage for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

Standard cabinet size of 500mm x 500mm, it is very convenient to set up a golden16:9 aspect ratio screen.

Light weight of only 10kg/ panel, with exquisite cabinet size, the LED panel would get less chance to be damaged during the installation.

Seamless connection. The cabinet is die-casted by high precision CNC machine , plus dual locks are armed on each side of the cabinet, so the installation is more secure and gapless.

Front access design available. The module, power supply & receiving card could be removed from the front side. That makes the way of installation more flexible.

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

Product descripition:

NO.:	Product name	P2.97 high definition rental led display
1	Pixel Pitch(mm)	2.97mm
2	Pixel configuration	1R1G1B/SMD2121  lamp
3	Pixel density	112896 dots/m2
4	Brightness	1000cd/m2
5	Module size(W*H)	250*250mm
6	Module Resolution (W*H)	168 dots x168 dots
7	Module weight	600g
8	Cabinet size (W*H)	(500mm×500mm)
9	Drive IC	MBI5153
10	Drive mode	1/32 scan
11	Viewing Angle(V/H)	140 ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (80%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 900w/m2; Average:300w/m2
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥3840 HZ
22	Control Method	Synchronized with computer monitor
23	Color Temperature	6500K-9500K
24	LED control system	LINSN,Nova-star,Colorlight is selectable
25	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
26	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
27	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
