Item

P4.81 Full Front Service Outdoor LED Module

Model Number

P4.81

Pixel Pitch

4.81mm

Pixel Density(pixels/M2)

43264 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar, SMD

Module size(mm)

250x250mm

Module Resolution(pixels)

52*52

Min.Viewing Distance(m)

5

Brightness(nits)

>6000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/16 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

500x1000mm / 1000x1000mm (Optional)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ|60hz

Refresh Rate

>1920hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

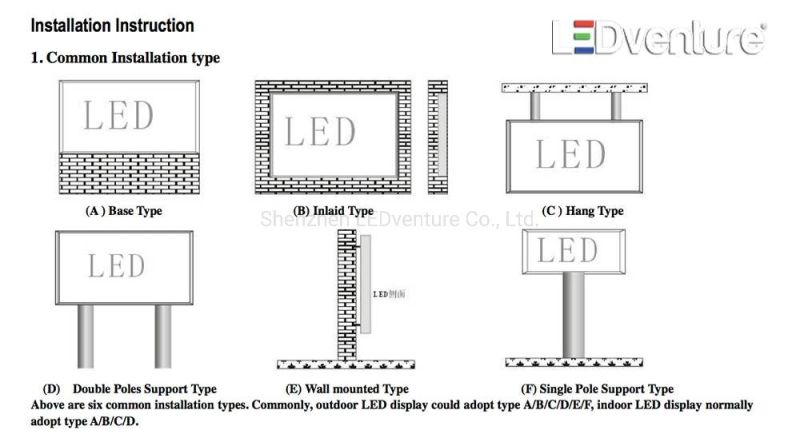

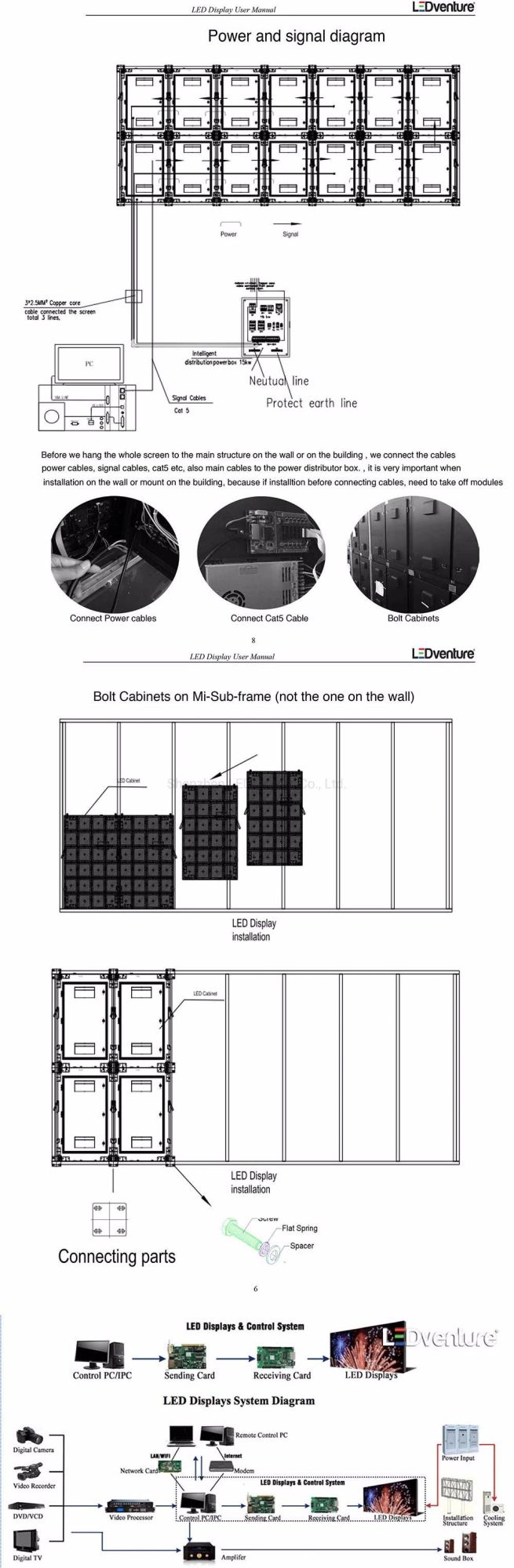

Part 5: Installation methods, outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.




Part 6: Packing information by plywood cases, packing well and easy to load
Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

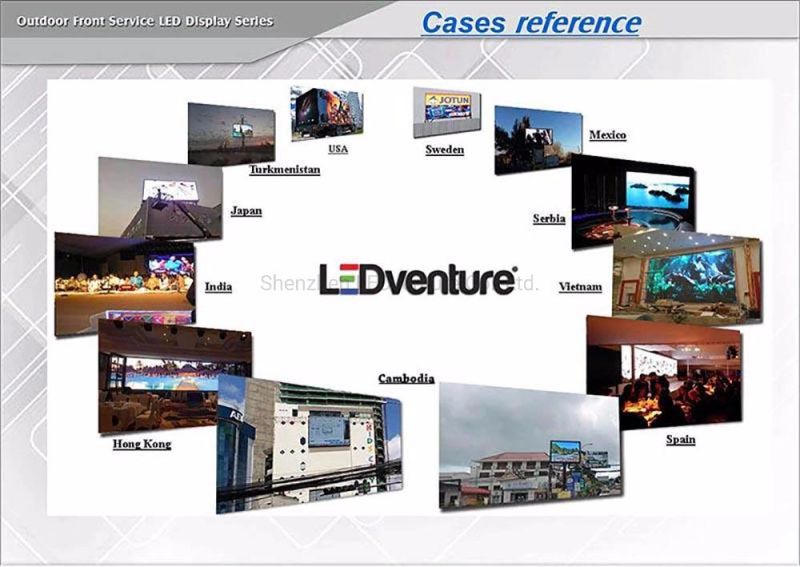

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
