Item

Indoor Full Color Advertising LED Video Wall

Model Number

Pixel Pitch

2.5mm

Pixel Density(pixels/M2)

160000 pixels

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size(mm)

320x160mm

Module Resolution(pixels)

128*64p

Min.Viewing Distance(m)

2 meters

Brightness(nits)

800

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/32 Scan

Protection Level

IP31

Cabinet Size(mm)

640x480mm (option)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

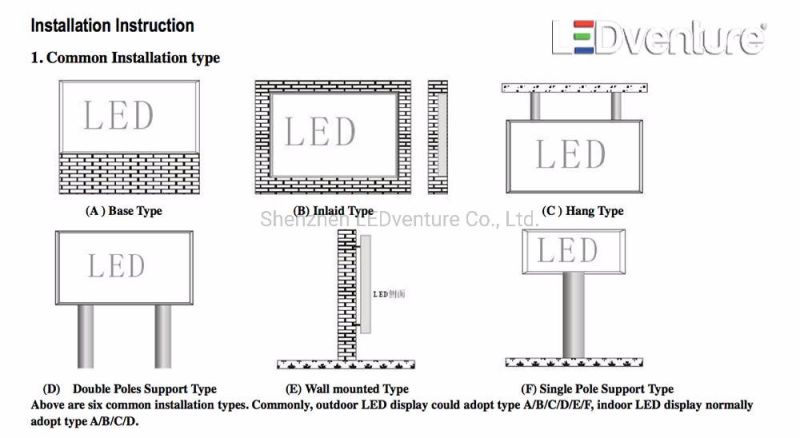

Part 5: Installation Methods

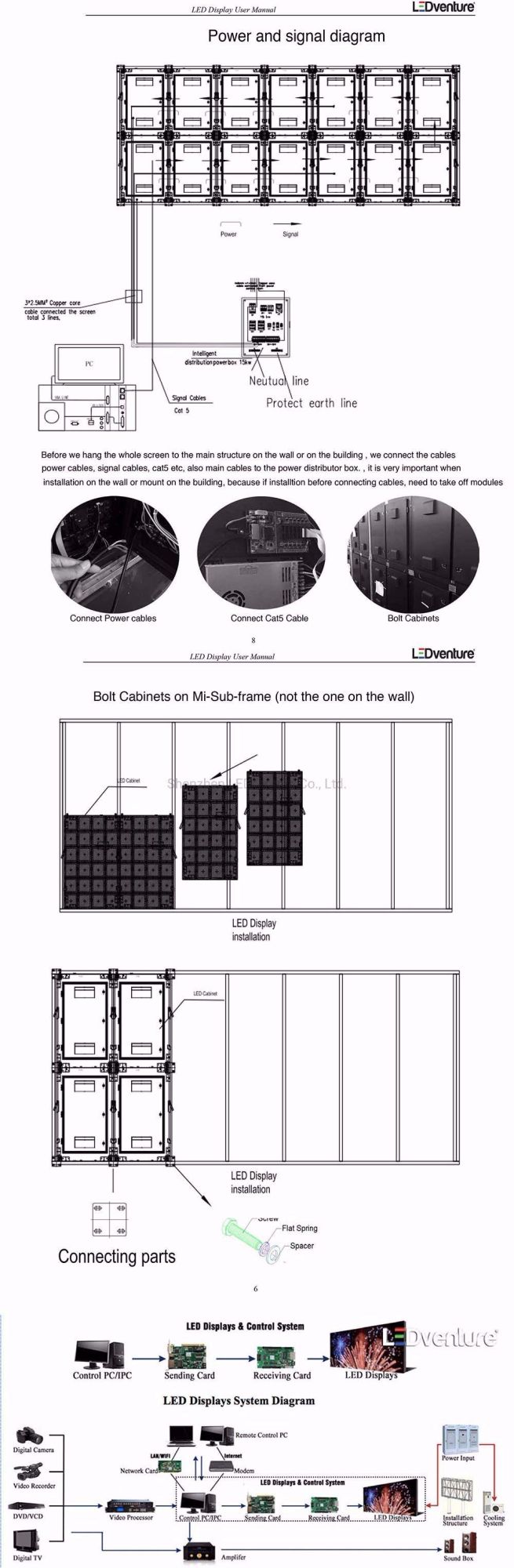

Indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc



Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia

Address: LEDventure Buliding,Lebao Industrial Park,Fengxin RD,Guangming New District,Shenzhen,China.
