LED LampTypeSMD2121 black bodyBrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(250-300mcd )Chip parametersGreen (520-525nm) IV:(450-550mcd)Chip parametersBlue (470-475nm) IV:(100-120mcd)LED ModulePixel Pitch4mmModule Size256×128mmModule Resolution64×32=2048(Dots)Module Weight0.3kgLED CabinetPixel Density62500 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution192×192=36864(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)768×768×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet3×6=18(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum-magnesium alloy CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight18kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>1300cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle140(Horizontal), 140(Vertical)Life-span100, 000 hoursNearest Viewing Distance7mProtection Level(front/back)IP43/IP54Power Consumption (Max)1000 w/sqmPower Consumption (Average)300 w/sqmMalfunction Dot Rateless than 0.0001Working Temperature-15^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1000HzDrive Mode/Driver PositionConstant driving 1/16 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10, Windows 7 and XPSoftwareLED Studio (FWS-linsn)Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,German,CertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)

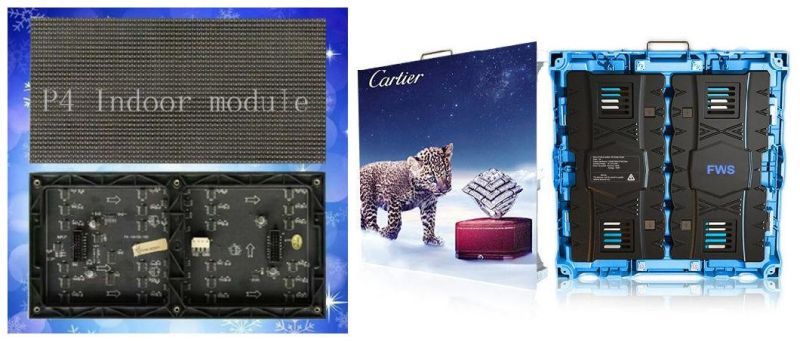

LED Module& Aluminum Cabinet

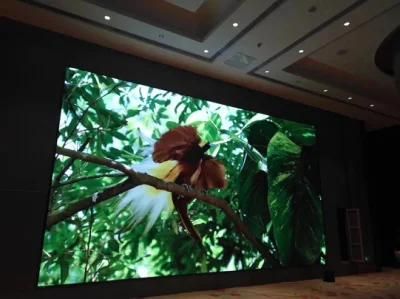

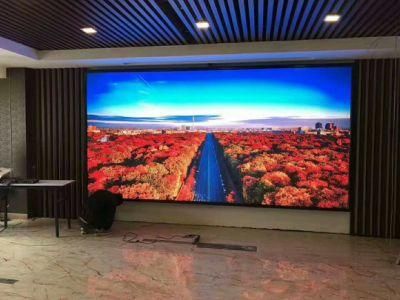

Case

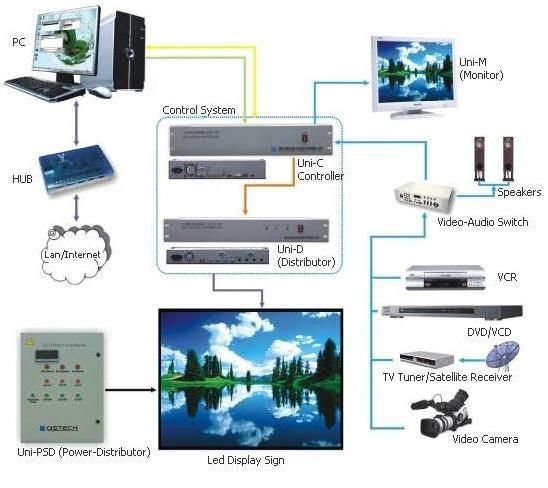

Control system

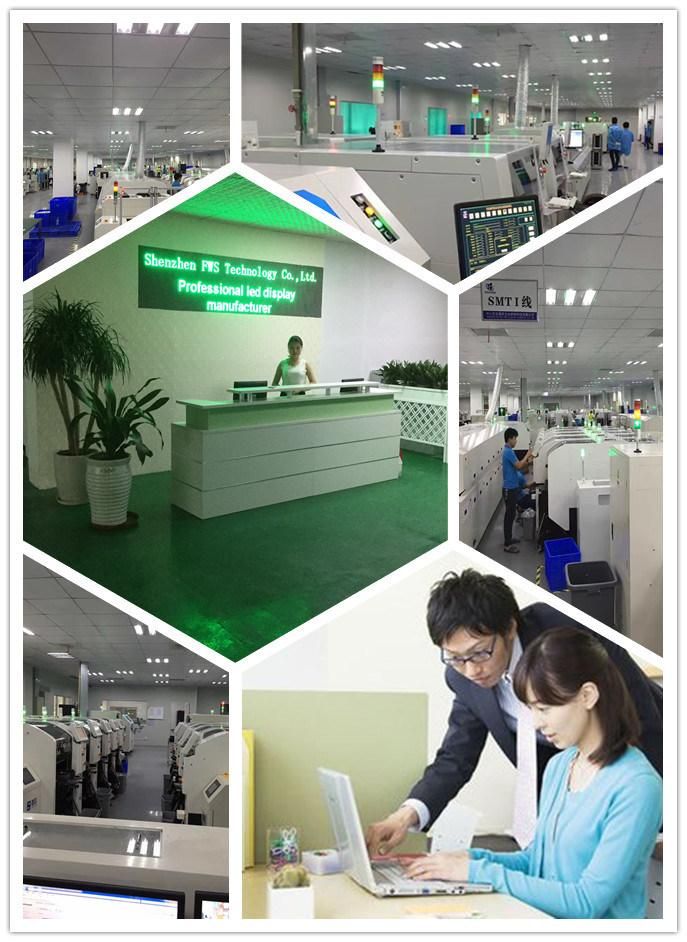

Our factory
