Basic Info.

Model NO. P1.923 LED display System Operating Platform Windows 7 / Windows Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Die Casting Aluminum 400*300mm Bightness CD/S 900CD/S Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Transport Package Wooden Case Flight Case and Carton Specification ce 3c rohs fcc iso 9001 iso 14001 Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 1000sqm/ Month

Product Description

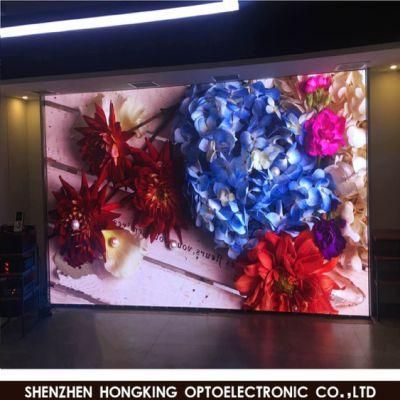

P1.9 Indoor Full Color LED Display Screens Wall for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807



1.Most of our product use material as follow:
    king light or Nationstar LED lamp
    MBI 5124 IC  Driver IC
    pcb 1.6mm ,mask and base
   have 2-3 years warranty.
2. If you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor;  fixed installation or rental?
4. intallation place pictures will be better;

1.· Durable, reliable, precisely made Aluminum die-casting, fanless design Small expansion coefficient
2.  Spring locks connect the cabinets vertically,
3. Signal and power indicator & reset button well shows the working condition of the whole screen;
4. Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet;
5. Light-weight 4.6kg/pc.  for panel with light-weight sub-frame structure design
6. Nanotechnology and unique positioning system, making the installation and dismantlement in one step; Product descripition:

NO.:	Product name	P1.923 display screen
1	Pixel Pitch(mm)	1.9 mm
2	Pixel configuration	1R1G1B/SMD 1515
3	Pixel density	270400 dots/m2
4	Brightness	900cd/m2
6	Cabinet Resolution (W*H)	210dots x 157dots
8	Cabinet size (W*H)	400mm×300mm
9	Drive IC	MBI 5153 or SUM2032
10	Drive mode	1/26 scan
11	Viewing Angle(V/H)	140 ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (50%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 900w/m2; Average:300w/m2
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1920HZ
22	Control Method	Synchronized with computer monitor



Professional production:Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
