P3.9-7.8 mm Transparent Curtain LED Panel Display for Window Shopping
Shenzhen Noveled Technology Co., Ltd.Base Info
Description
LEDType 1 LED configuration 1R1PG1PB 2 LED encapsulation SMD 1921(Anti-UV) LED specifications 1 Pixel pitch 3.9 -7.8 mm 2 Scanning 1/2 constant current 3 Driving IC MBI 5024 4 Module resolution 64dots×16dots 5 Module pixel 1024dots 6 Module Size(width×height) 480×160mm 7 led panel size(width×height) 762×1000mm 8 Cabinet resolution 96dots×192dots 9 Pixel density 10000dots/m2 10 Cabinet material Aluminum Extrusions 11 Brightness 6000~7000cd/sqm 12 Viewing Angle Horizontal 140°,Vertical140° 13 Viewing distance ≥10M 14 Gray Scale 16bit 15 Display Color 281 Trillion 16 Refresh Frequency ≥1920Hz 17 Frame Frequency 60fps 18 Input voltage AC220V/50Hz or AC110V/60Hz 19 Power Consumption(Max/Ave) 1600/400W/sqm 20 Weight 28KG/sqm 21 MTBF >10,000 hours 22 Life Span ≥100,000 hours 23 Transparency rate 70% 24 Operating Temperature -20ºC~60ºC 25 Operating Humidity 10%~90%

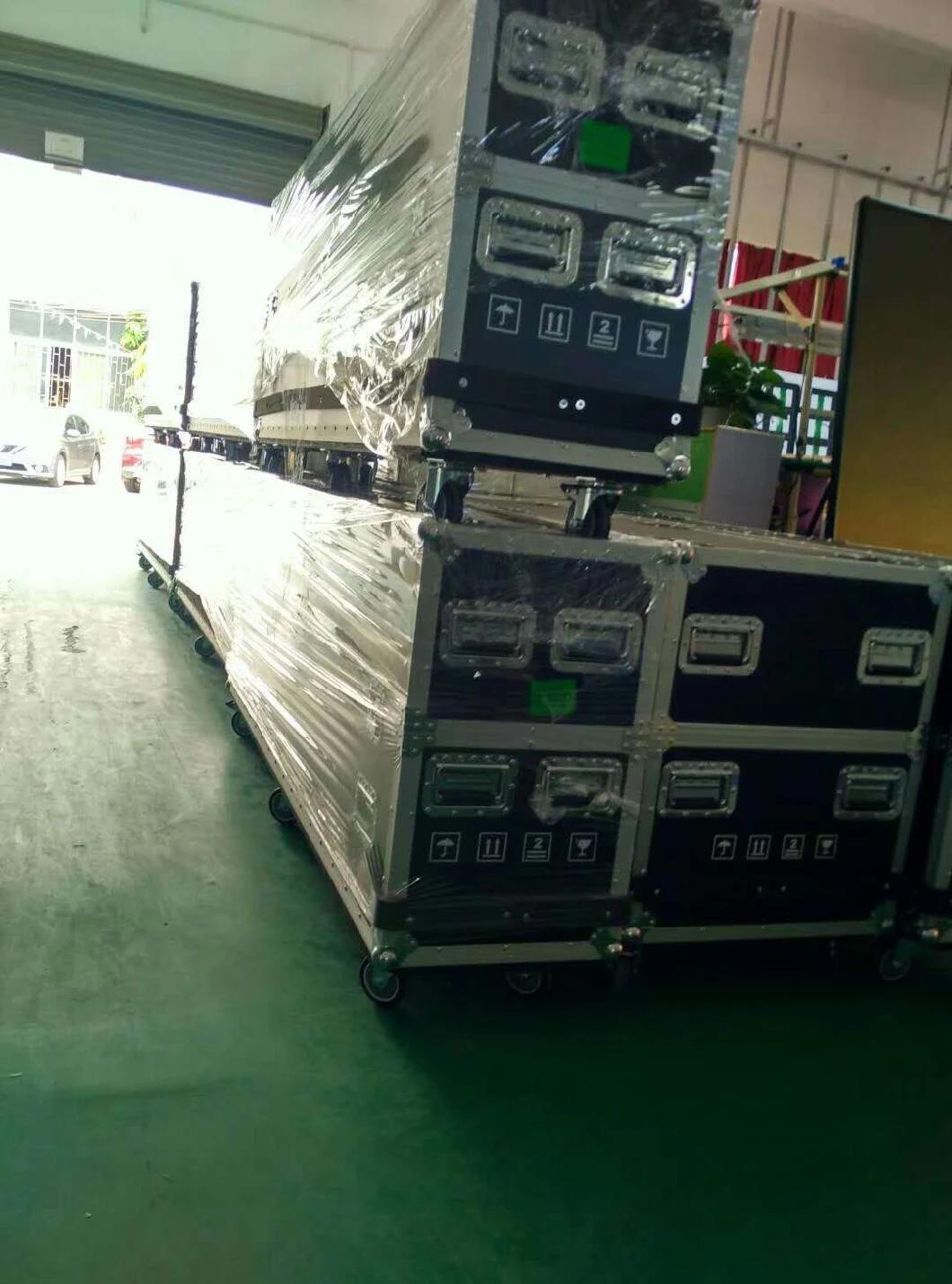

Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
Packing and transportation
Professional packaging:wooden box or flight case.
The way of Packing can prevent the collision of LED screen effectively in the process of transportation, such as falling damage,etc.
Faultlessly solve your worries in the transportation.
