Basic Info.

Model NO. P1.667 led screen System Operating Platform Windows XP / Windows 7 / Windows 8 /8.1 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001 ISO14001 FCC Product Name P1.667 Indoor LED Display Driver IC Mbi5153 or Icn 2153 Bightness CD/Sq 900CD Grey Scale 65536 Degree Life Time More 100,000 Hours (80%) Mtbf More 50,000 Hours Operating Temperature -30~-60t Humidity 10%-95% Transport Package Wooden Case, Flight Case and Carton Specification CE 3C ROHS FCC ISO: 9001 ISO: 14001 Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 8000sqm/Year

Product Description

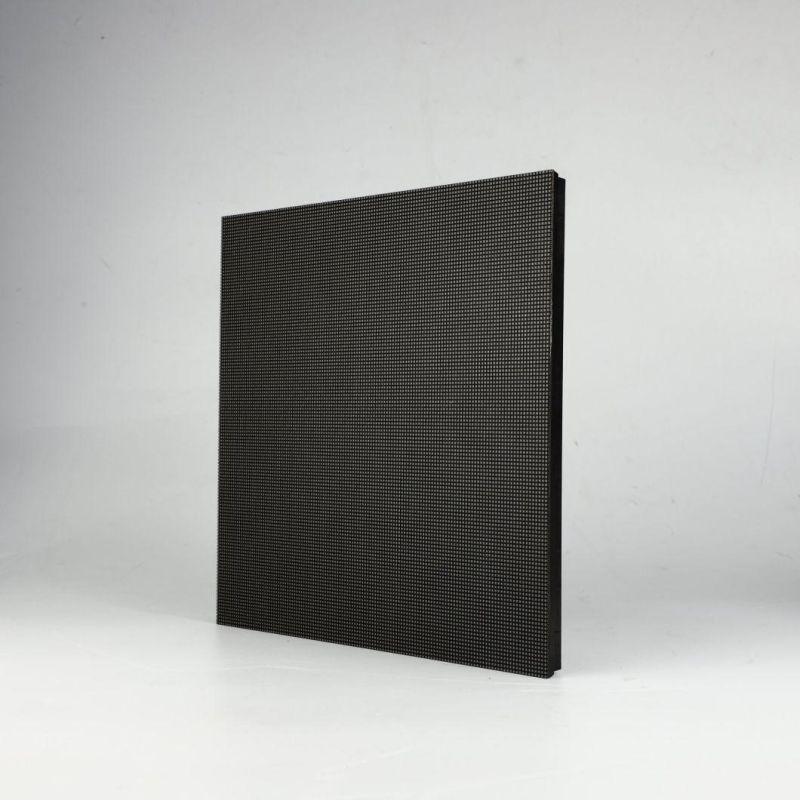

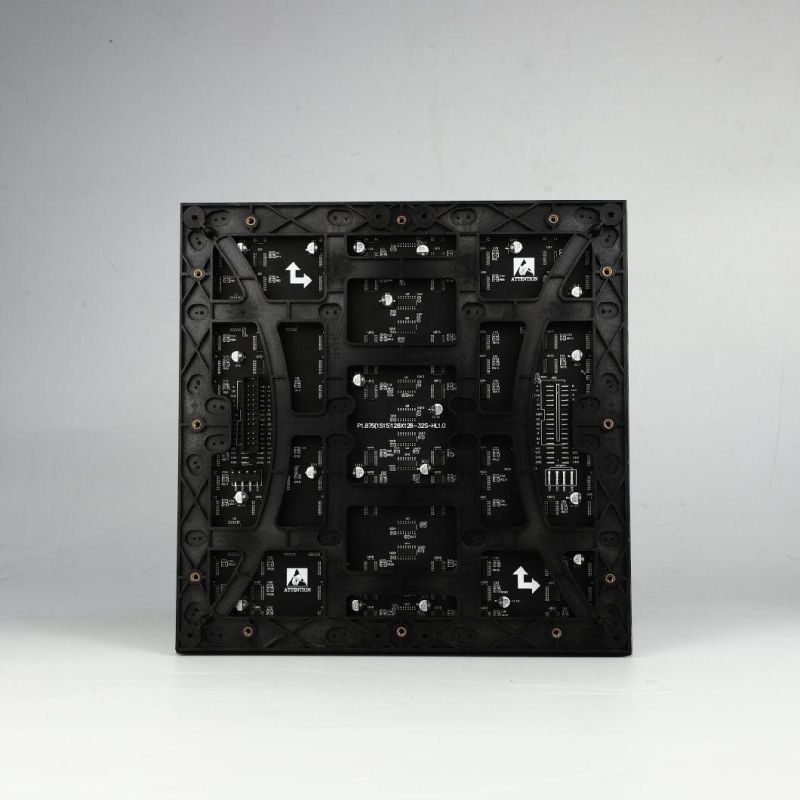

P1.25 P1.5 P2 P2.5 Indoor outdoor LED Display Screen Panel for Advertising


1.Most of our product use material as follow:
    king light or Nationstar LED lamp
    MBI 5153 IC  Driver IC
    pcb 1.6mm ,mask and base
    have 2-3 years warranty.

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807


2. If you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor;  fixed installation or rental?
4. intallation place pictures will be better;


model	P1.56	P1.667	P1.875
Pixel Pitch	1.56mm	1.667mm	1.875mm
Unit Size	400x300MM or 600X 337.5MM	400x300MM or 600X 337.5MM	400x300MM or 600X 337.5MM
LED Type	SMD1010	SMD1010	SMD1515
Pixel / Unit	256*192	240*180	256*256
Unit Weight	4.6Kg	4.6kg	4.6kg
Viewing Angle	H140 degree V140 degree	H140 degree V140 degree	H140 degree V140 degree
Application	Storage-40°~60° C, working-20°~50° C,	Storage-40~60° C,   Working-20~50° C	Storage-40~60° C,   Working-20~50° C
Protection Level	For indoor use only	For indoor use only	For indoor use only
Power Consumption	700W/sqm	750W/sqm	700W/sqm
Frame Refresh	≥ 60Hz	≥ 60Hz	≥ 60Hz
Refresh Rate	3840Hz	3840Hz	3840Hz
Processing	16bit	16bit	16bit
Brightness	800nits	800nits	800nits
Power Supply	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz	AC110/240V, 50~60Hz
MTBF	≥ 1, 000 Hours	≥ 1, 000 Hours	≥ 1, 000 Hours
Life Span	≥100, 000 Hours	≥ 100, 000 Hours	≥ 100, 000 Hours
Pixel Failure	< 0.0003	< 0.0003	< 0.0003

This series can be P1.2,P1.5,P1.6,P1.9, it is on promotion. WELCOME to enquire, We will send you quotation in 1 day! We have the most competitive prices, please compare and welcome to visit our factory in Shenzhen!


    HONGKING is a professional manufacturer of LED display screens over 10 years. We have strong R&D to ensure high end products with user-friendly design .
    The prices are very competitive due to our large-scale procurement of raw material.   We can help you to win more orders if you are distributors.End users will also be satisfied with our quality and price.
    We have CE, FCC and Rohs certificates. Our products are exported over 85 countries .We have rich experience in handling all possible problems when you import goods from China .
    We have a wide variety of products for you to choose from .All products are strictly tested before release to market and we test every LED screen 72 hours before delivery.
    Our sales are well trained to offer professional advice on your specific projects. Processional engineers are on standby, can offer guidance, on site technical support as requested.
    We offer 2-3 years warranty and life time maintenance .Even when warranty time expires , we only charge material costs
