Basic Info.

Model NO. Outdoor P10 LED Display Pixel Density 10000/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC Product Name Outdoor P10 LED Display Module Size 320mm*160mm Module Weight 400g Refresh Rate 1920Hz Transport Package Wooden Case, Flight Case and Carton Specification SMD Outdoor P5 LED Display Trademark HONGKING Origin Shenzhen, China HS Code 8528591090 Production Capacity 1500sqm/Month

Product Description

Outdoor Waterproof LED Display Screen Module for Advertising

      Features:

• Light Weigh and small structure
• Wide range of sizes

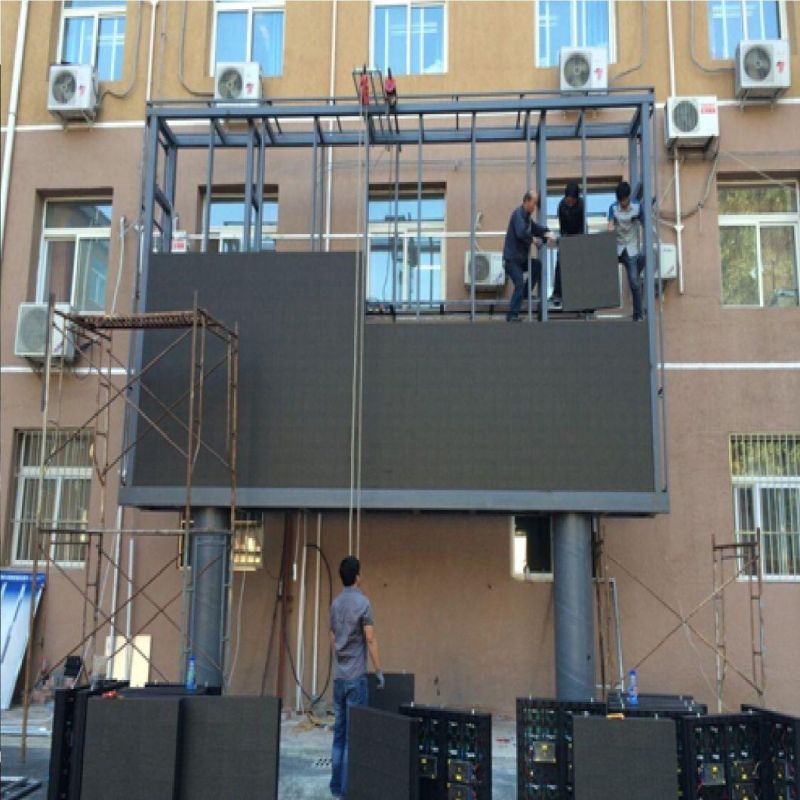

• Fast Installation
• 100 % waterproof, rainproof, and dustproof, IP Grade 65



• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807

     Specification:

Product Items	P6	P8	P10-normal brightness	P10-high  brightness
Pixel	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Configuration	SMD3535	SMD3535	SMD3535	SMD3535
Pixel Pitch	6mm	8mm	10mm	10mm
Pixel Density	27,777	15,625	10,000	10,000
Module Size(mm)	192x192	256x128	320x160	320x160
Pixels/Module	32x32	32x16	32x16	32x16
CabinetSize(mm)	576x576	768x768	960x960	960x960
Pixels/Cabinet	96x96	128x128	96x96	96x96
Cabinet Weight	25KG	35KG	37KG	37KG
Brightness	>6500cd/	>6000cd/	>5000cd/	>7500cd/
Viewing Distance	>6m	>8m	>10m	>10m
Power	Max:900	Max: 1000	Max: 680	Max: 1000
Consumption(W/)	Ave: 300	Ave: 260	Ave: 220	Ave: 350
Driver Mode	1/8 scan	1/4 scan	1/4 scan	1/2 scan

Application:

HONGKING LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.

LED Control System: Novastar / Linsn /  Onbon / TF / HD Card etc
LED Power supply: Meanwell / YHY / G-Energy
LED Chips: Cree / Nichia / Epistar / Opto / Silan etc
Drive IC: MBI5024 / MBI5026 / MBI5027 / MBI5030 / MBI5031 / MBI5035 / MBI5040 / MBI5041 / MBI5042 / MBI5050 / MBI5153 etc
