Basic Info.

Model NO. P4 System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC Transport Package Carton Box/Wooden Case /Flight Case Specification one carton case contain 50 PC Trademark NVD Origin Shenzhen China HS Code 85312000 Production Capacity 50000 PC/ Day

Product Description

P4 Flexible Led Display Soft Module Advertising LED Video Wall Screen Module  256mm x 128mm



P4 indoor soft led module  description

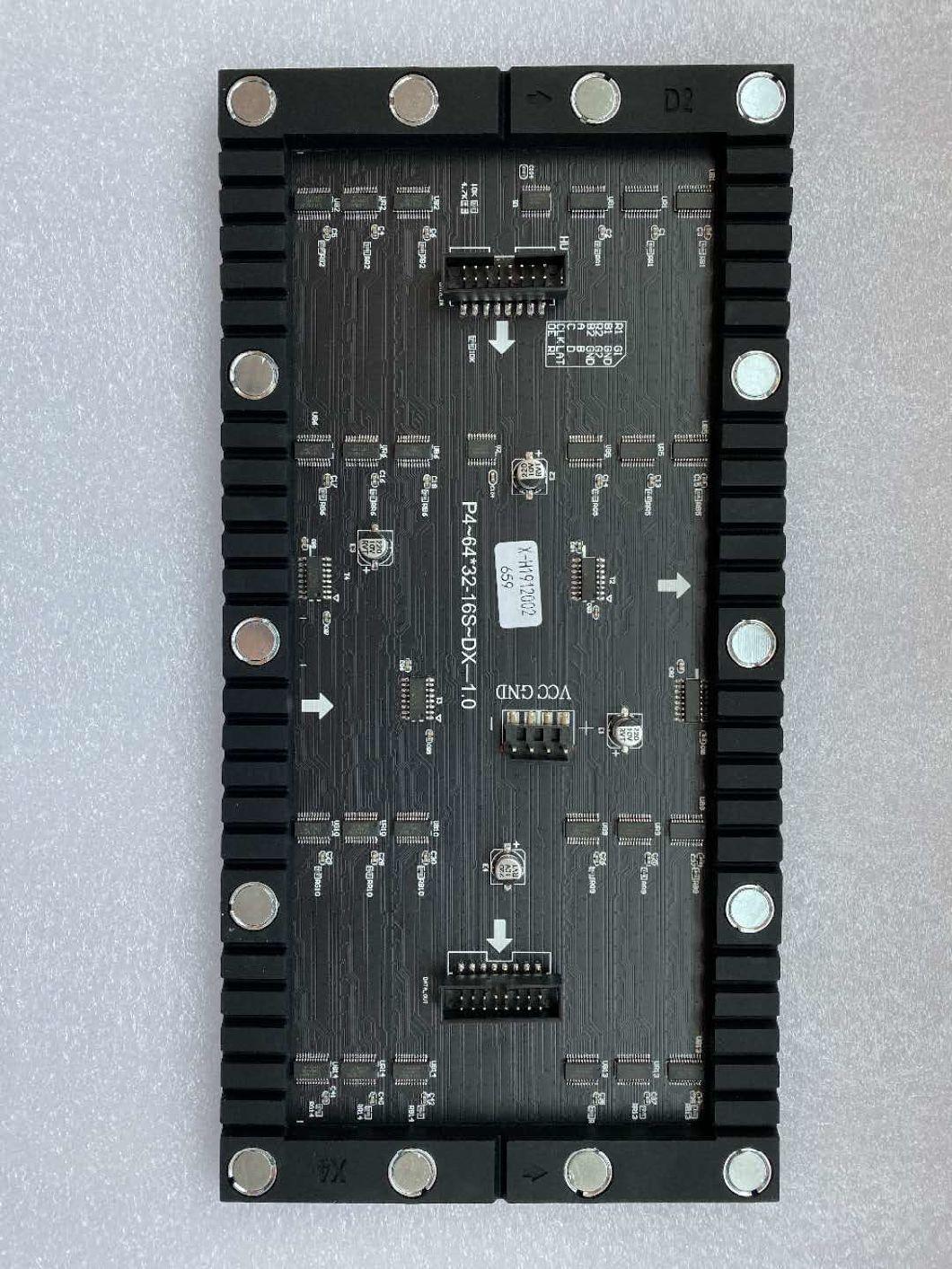

1. Magnet connection, front maintenance, easy to assemble&disassemble;

2.No cabinet metal frame,any shape of structure can be designed as you need;

3.Install the LED screen with soft led modules directly,saving time and effort,easy operation;

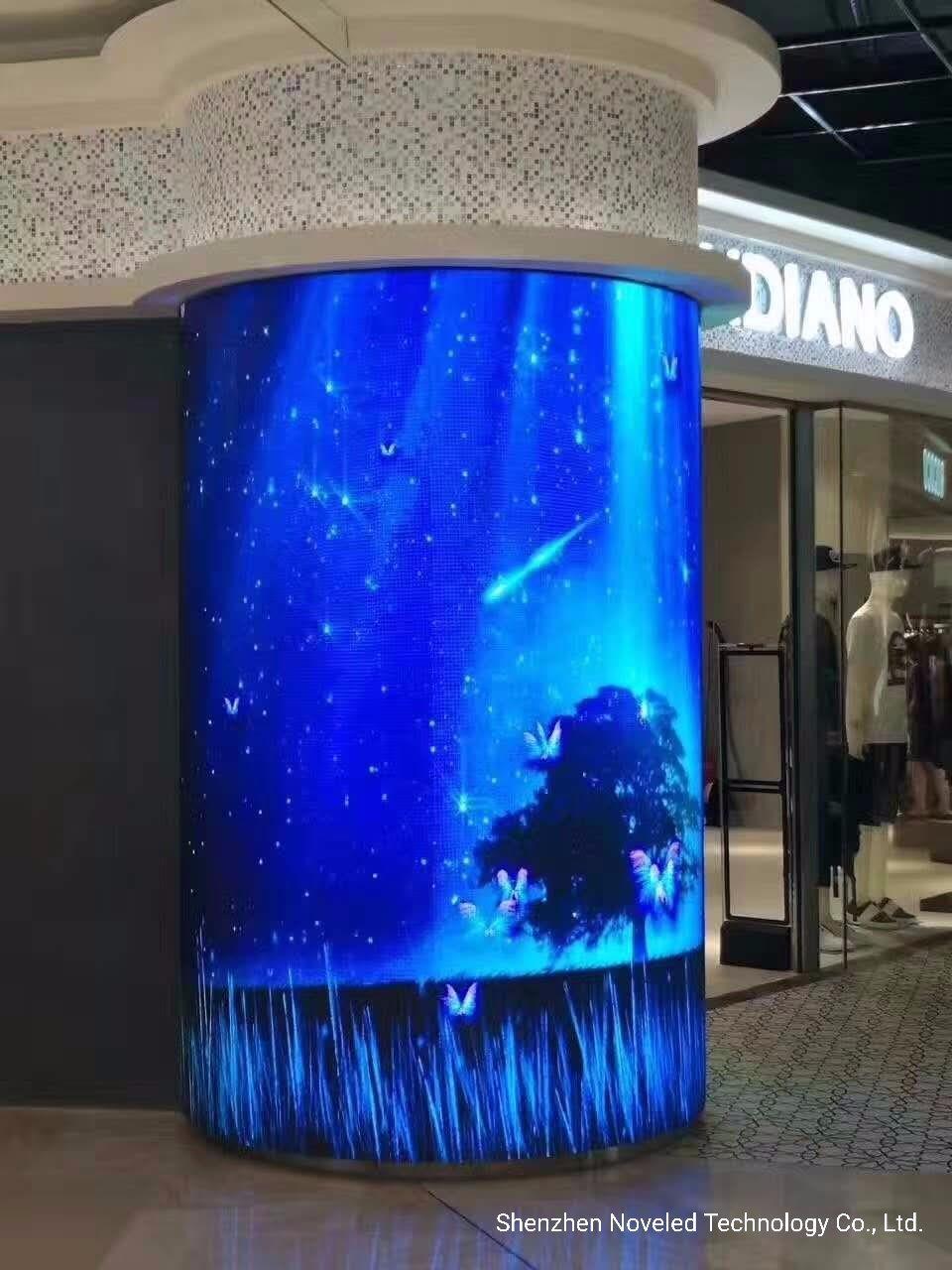

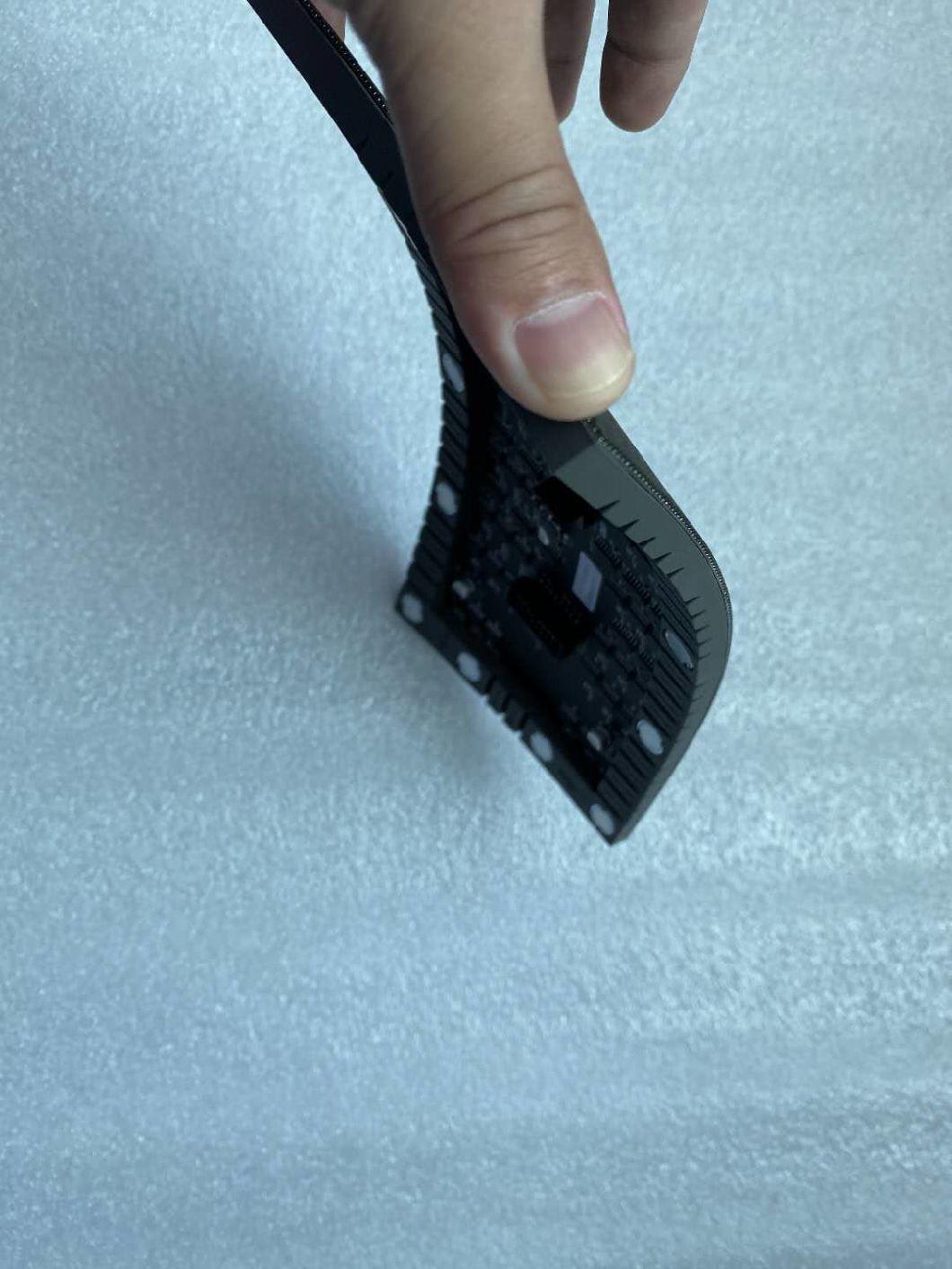

4.Module with small-unit and flexible design,useful in any curved application environments to create flexible;

5.With MBI driving IC and Kinglight gold wire LEDs, with high refresh Rate and best color uniformity;




P4 indoor soft led  module Advantages

1) High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under directly sunlight.

2)Energy saving:low electric current,high-bright lamps,equipped with PFC switching power supply that save 30% electricty.

3)The brightness can be adjustable to meet the need of changing environment

4)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizontal

5)Environment protection, antistatic, dust-proof, good heat dissipation, cost-effective .

6)Error detection and monitoring:it can monitorthe inner temperature,voltage,cooling fans etc and error detection automatically.

 4 Flexible Led Display Soft Module Advertising LED Video Wall Screen Module 128*256mm



P4 soft module detail specification

Part Number	P4
Pixel Pitch4	mm
LED Configuration	1R1G1B
Pixel Density	62500dot/m2
Resolution	64x32dot
module  Size	256  x 128
Cabinet Weight	0.2kg
IP Rating ( front/back)	IP30
Brightness Intensity	>1100CD/m2
Viewing Angle (H/V)	120°
View Distance	>2.5m
Gray Scale	14bit
Display Scale	16.7M
Brightness Adjustment	0-100 levels adjustable
Max.Power Consumption	480W/m²
Ave.Power Consumption	160W/m²
Drive Mode	24S
Refresh Frequency	≥1200HZ
Environmental	INDOOR
Control Mode	Synchronous display with control PC by DVI
Support Input	Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation Power	AC100~240 50/60HZ
Operating Temperature	-20ºC~+50ºC
Operating Humidity	10~95% RH
Operating Life	100,000hours
