Item

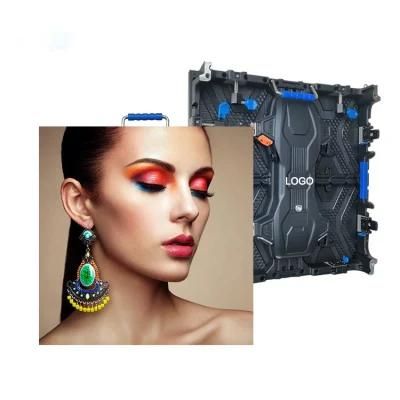

Indoor Ultra HD Series LED Display Screen

Model Number

UHD-P0.937S

Pixel Pitch

0.937mm

Pixel Density

1137778 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size

150 x 337.5 mm

Module Resolution

160 * 360 pixels

Min.Viewing Distance

1 m

Brightness

500-800 nits

Viewing Angle

≤140°

Average Power Consumption

300 W/M2

Scan Mode

1/32 Scan

Protection Level

IP43

Cabinet Size

600x337.5mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

3840hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

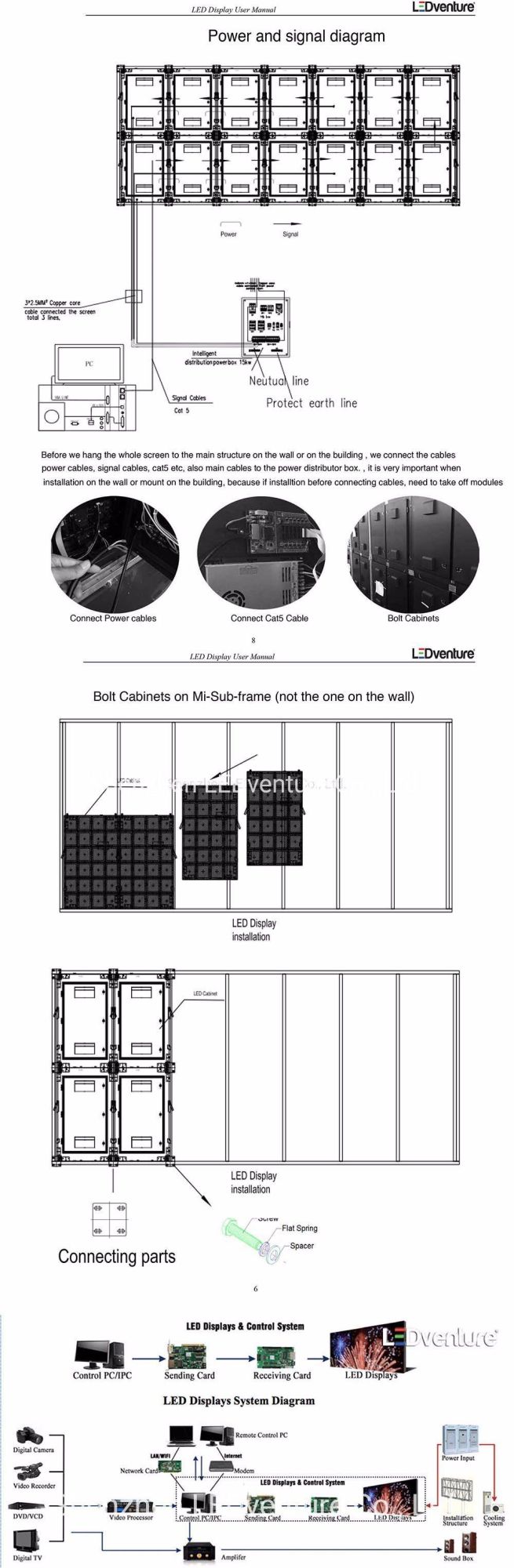

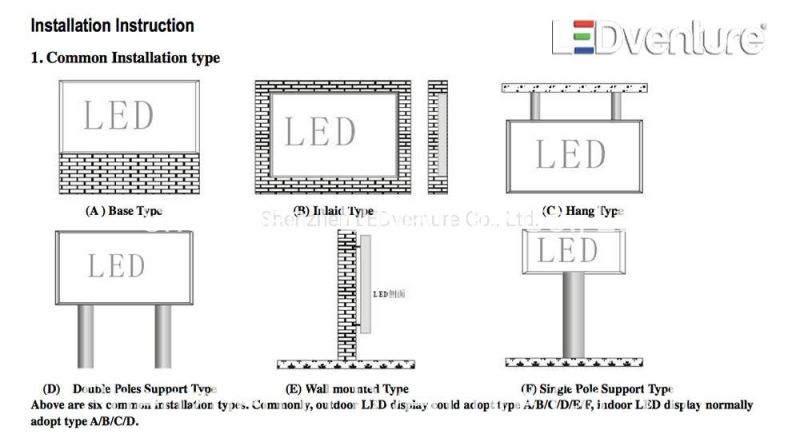

Part 5: Installation Methods

Fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

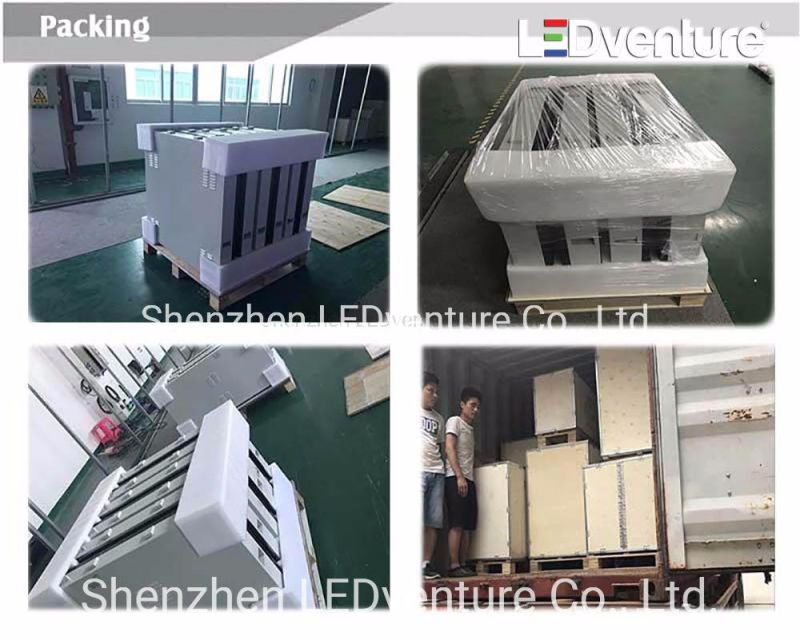

Part 6: Packing Information

Packing by plywood cases, packing well and easy to load

Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

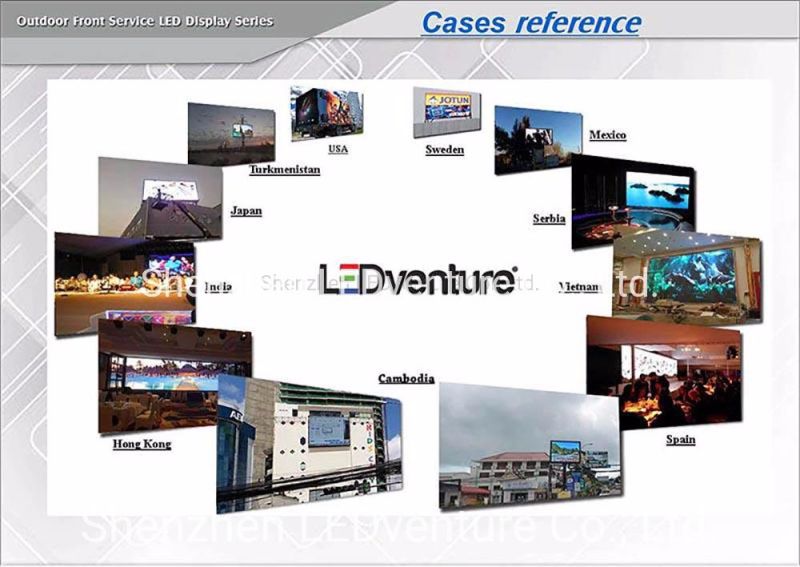

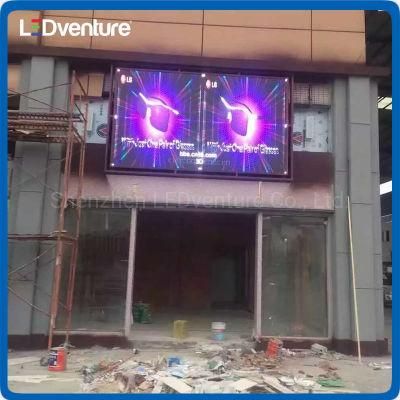

Part 9: LED Display Screen Installation Cases.

Most of our led display exported to Europe with high standards, and also exported to USA, South America and Asia
