Basic Info.

Model NO. P10 Outdoor LED Display Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC, ISO9001 ISO14001 FCC Outdoor Full Color P10 Outdoor LED Display Product Name LED Display Brightness 5000CD/Sqm Cabinet Size 960*960mm Module Size 320*160mm Refreshing Rate 1920Hz Grey Scale 65536 Degree Driver IC High Refresh IC Transport Package Wooden Case, Flight Case, and Carton Specification 320*160mm Trademark HONGKING Origin Shenzhen China HS Code 8528591090 Production Capacity 5000sqm/Year

Product Description

made in China Price Outdoor P10 LED Display Screen Advertising

If you have interests in buying, pleased send A complete inquiry need to show:
1. led screen panel pixel pitch, if you dont know how to choose, contact us
2. led screen size:length ___m; width___m,or cabinet quantity;
3. use for indoor or outdoor;  fixed installation or rental?
4. intallation place pictures will be better;




Technical  Specifications:

NO.:	Product name	outdoor SMD  P10 led display
1	Pixel Pitch(mm)	10mm
2	Pixel configuration	1R1G1B/
3	Pixel density	10000dots/sqm
4	Brightness	5000cd/sqm
5	Module size(W*H)	320mm×160mm
6	Module Resolution (W*H)	16 dots x 16dots
7	Module weight	450g
8	Cabinet size (W*H)	960mm×960mm
9	Drive IC	MBI5124
10	Drive mode	1/4scan
11	Viewing Angle(V/H)	110ºC
12	Grey Scale	65536 degree
13	Life time	>100,000 Hours (80%)
14	MTBF	>50,000 Hours
15	Operating Voltage	AC110V/220V±10%
17	Screen Power Consumption	Max: 680w/sqm; Average:220w/sqm
18	Input Power Frequency	50/60Hz
19	Operating temperature	-30--60ºC
20	Humidity	10%-95%
21	Refresh Rate	≥1200HZ
22	Control Method	Synchronized with computer monitor

certification  :

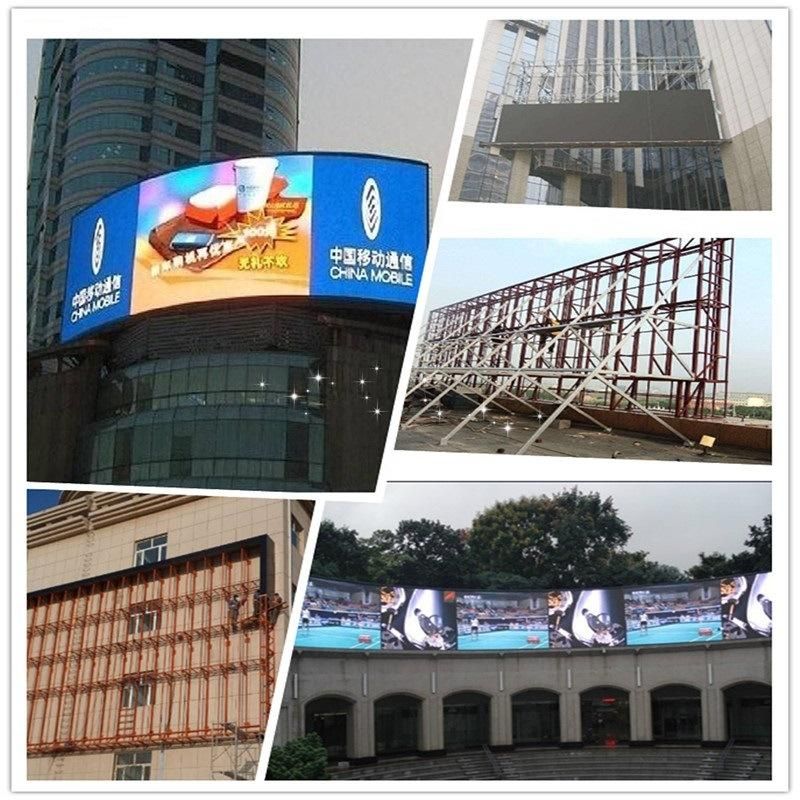

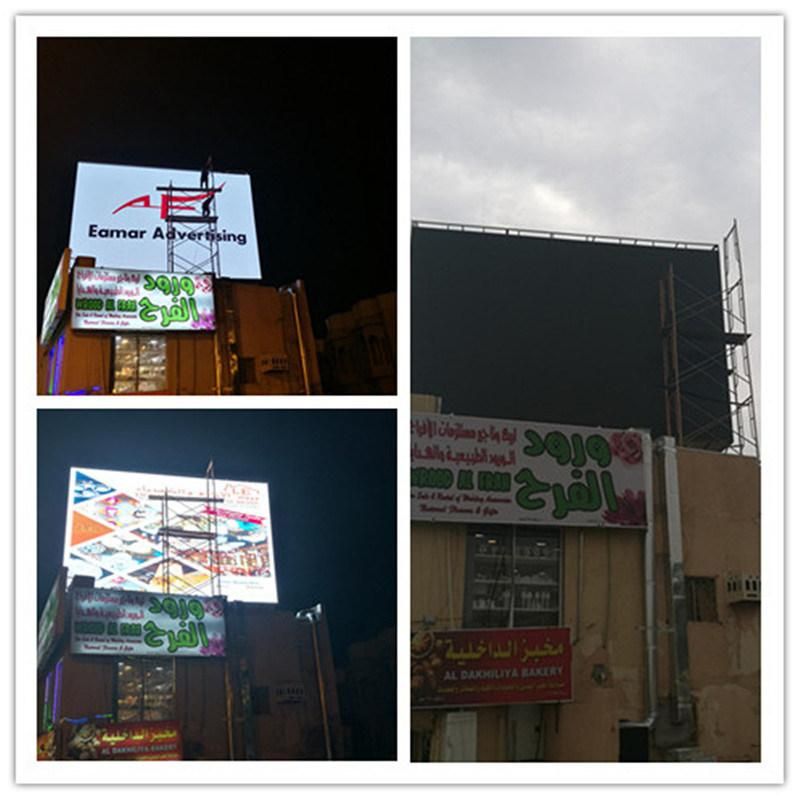

Product Application Cases:

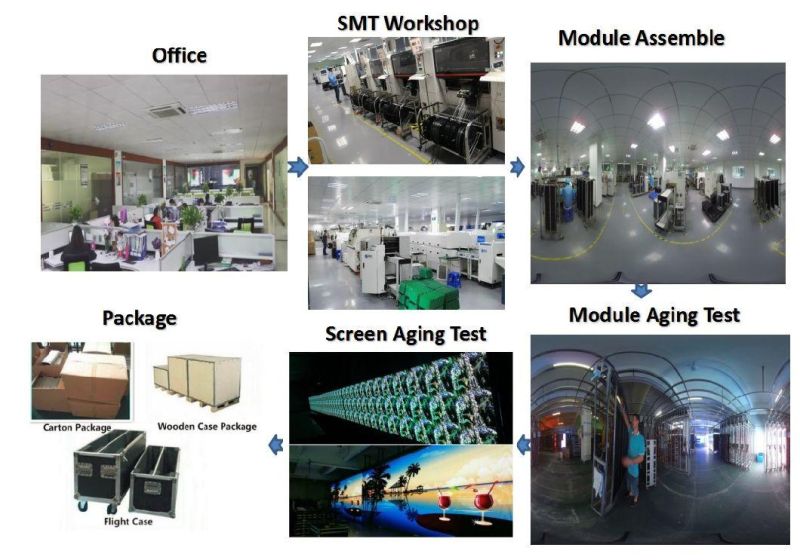

company workshop :

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC.

package:


Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery

Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days

Free sample or not: Sample is available,but need to pay the material cost and freight cost

Shipping port: Shenzhen, Mainland China

MOQ: 2 sqm for led screen,and10pcs for led module

Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost

Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request

hongking  always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.1.led display Function and Technology Character
    (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal.
    (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade.
    (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously.
    (4) Line-Double technology is adopted for the picture adjustment.
    (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL.
    (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof.
