LED LampTypeSMD2727BrandEpistarArrangement1R1G1BChip parametersRed(620-625nm) IV:(800-960mcd)Chip parametersGreen(520-525nm) IV:(1350-1650mcd)Chip parametersBlue(470-475nm) IV:(330-400mcd)LED ModulePixel Pitch4.81mmModule Size250×250mmModule Resolution52×52=2704(Dots)Module Weight0.8kgLED CabinetPixel Density43222 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution104×104=10816(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)500×500×95mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet2×2=4(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialAluminum CabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight8kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>6000cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle120(Horizontal), 120(Vertical)Life-span100, 000 hoursNearest Viewing Distance8mProtection Level(front/back)IP66/IP54Power Consumption (Max)1200 w/sqmPower Consumption (Average)300 w/sqmMalfunction Dot Rateless than 0.0001Working Temperature-30^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1000HzDrive Mode/Driver PositionConstant driving 1/13 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 ,Windows 7 and XPSoftwareLED Studio(FWS-linsn )Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic,Korean,GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)

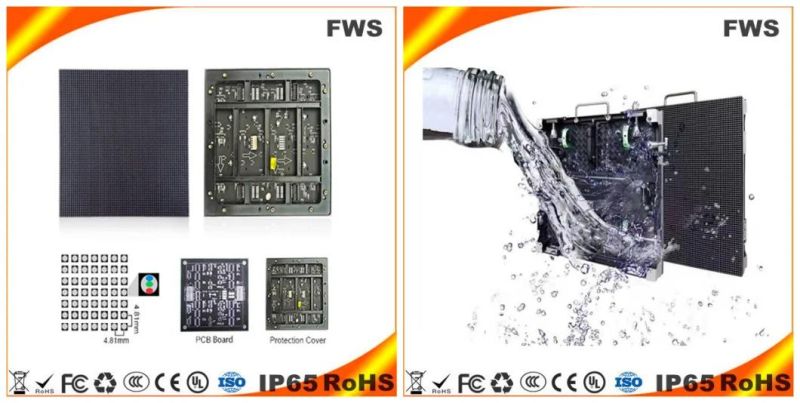

LED Module& Aluminum picture


Features:
 Aluminum cabinet never deformation and features with beautiful appearance and lightweight.
 Ultra-slim cabinet decline the volume of flight case and transportation cost.
 Seamless splice make more cabinet in one without any gap.
 Fast lock and spring plunger design for fast install and dismantle. Especially suitable for stage show, concert, promotion, exhibition and sport game live use.
 Die-casting aluminum magnesium alloy feature with low power consumption, automatic heat dissipation.
 Power has been inset in the cabinet and signal work lamp help you fast detect fault and fast fix it.
 IP66 waterproof rate make it suitable for any outdoor environment.
 Lifetime free maintenance and offer online technical service.

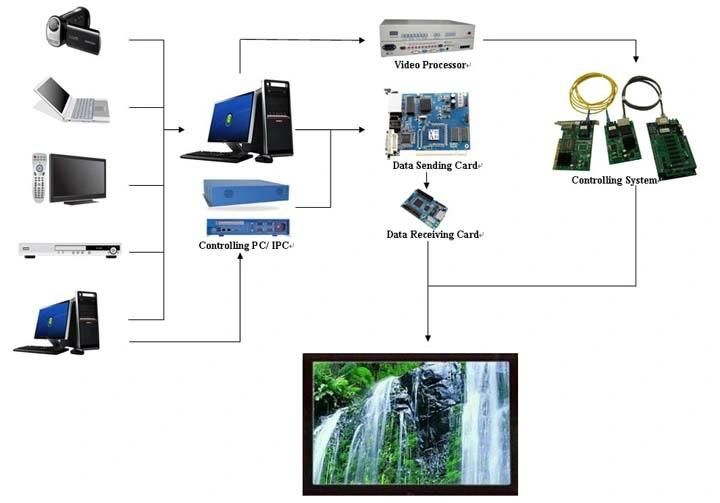

Control system



Our clients

Our factory
