Basic Info.

Model NO. p6 System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, CF Scan Type 1/16 Scan LED Package SMD3528 Brightness 1600 Nit Pixels Density 27777 Dots/Sqm Warranty Period 2years Deliver Time 15-20 Days Life Span 100000 H Pixel Configuration 1r1g1b Grey Grade 4096 Best Viewing Angle 140/120 Transport Package Wooden Case Specification 500mm*1000mm*85mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 5000sqn /Month

Product Description

Our Company is a professional manufacturer of LED Display. We dedicate to supply high quality products with competitive prices. Our products and services are well-received around the world. It's our mission to satisfy evevry customer's expectation to the greatest e

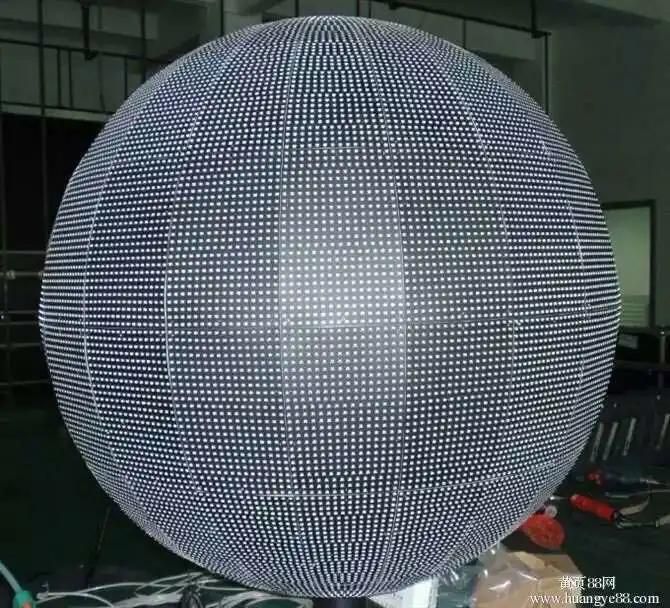

LED screen market is changing greatly, from traditional advertising display to irregular shape display. Expect the traditional function of showing information, LED display also updated the requirements on outside looking, which made it be more suitable for various occasion. P10 indoor LED ball display is born for stage rental use. It has 360 degree viewing angle, perfect playing effect, precise workmanship. You are worth it!

Features
1. Viewing angle: 360 degree
2. Frame structure: Light, convenient, firm
3. Ball's diameter: Customized as requested
4. Good heat dissipation

Parameter	Value
Pitch	6 mm
Brightness	1,600 nits
Color temperature	6,500 deg K
Viewing angle - Horizontal (50% brightness)	140(-70 ~ +70) deg
Viewing angle - Vertical (50% brightness)	120(-70 ~ +70) deg
Net Weight	70 kg
Diameter	1,000 mm
Panel area	0.4096/Square
Operating temperature range	-30 to +60 deg,c
Material	Steel
Ingress protection (front/rear)	IP43
Humidity operating	10% ~ 90% RH
Pixel type and configuration	3528 SMD (1R1G1B)
Dot per sq. meter	10,000
LED per sq. meter	10,000
Recommended minimum viewing distance	7.6m
Recommended best viewing distance	10~30m
Colors	281 trillion
Grey scale (linear)	65,536 levels per color Levels
Brightness control	100 Levels
Contrast ratio	1,000:1
Processing depth	16 bit
Video frame rate	60 Hertz
Display refresh rate	600 Hertz
Input voltage (nominal)	110 to 240 VAC
Input power frequency	50 to 60 Hertz
Input power (max)	2,000 Watts/panel
Input power (typical)	800 Watts/panel
Lifetime (50% brightness)	≥100,000 Hours
Red wavelength (dominant)	620~625nm
Green wavelength (dominant)	525~530nm
Blue wavelength (dominant)	470~475nm
Multimedia data format	DVI,MPG,AVI,WMV,RM etc.
Controller	DB Star
Control way	Asynchronous & Synchronous
Data interconnection	UTP Cat 5/Optical Fiber
Mounting system	Hanging & Stand on ground
Package	Flight case
Flight case size	1.09m*1.09m*1.49m
Gross weight	310kg
Volume Weight	370kg

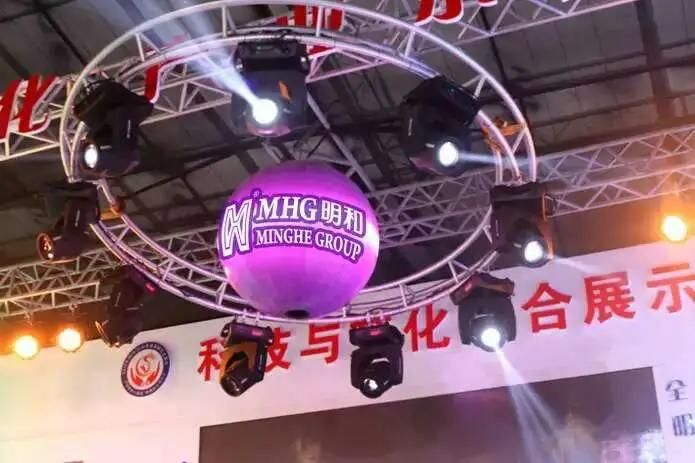

Effect Show
 (LED stage display ,LED Outdoor video wall ,  Wedding LED display,The stage LED electronic screen,LED large screen full color display,advertising led display,outdoor led display,indoor led display)

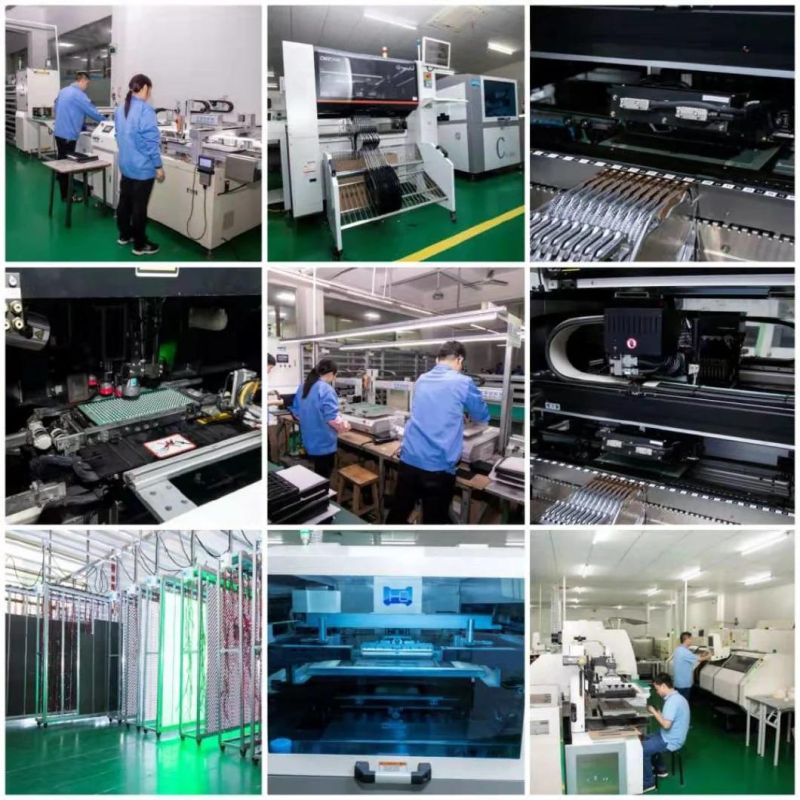

Our workshop

Packaging
 Customer Visiting

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information

Certificate

Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs

1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day; Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
