Display and control feature          Structure featureSpecificationParameterSpecificationParameterPixel Pitch10 mmModule size320 mm*160mmPixel composing1R1G1BDisplay resolution/module32 dots*16dotsWavelength  (R)625±5Standard cabinet size960 mm*960 mmWavelength  (G)522±3Weight per sqm56Kg/sqmWavelength  (B)470±5Protection classification--- IP65Wave Angle  (H)110°(H)/ 60°Install modeWallmount, hung and stand structureLED packageDIP546  Density3,906         Working powerDisplay color256*256*256SpecificationParameterWhiteness brightness≥7500cdWorking voltageAC 220v/380v±10%  47~64HzBrightness level128 gradeMax power/sqm1000W/sqmChanging frame frequency60 HzAverage power/sqm500W/sqmRefresh400 HzShort circuit protectionYesDriving methodConstant Static current  Control modesynchronous         Working environmentDisplay portDVISpecificationParameterDisplay mode1024*768 /1024*1024EnvironmentOutdoorOut of control1/10,000 ( scattered)Working temperature--20~50clifetime100,000 hoursWorking Humidity10~90%

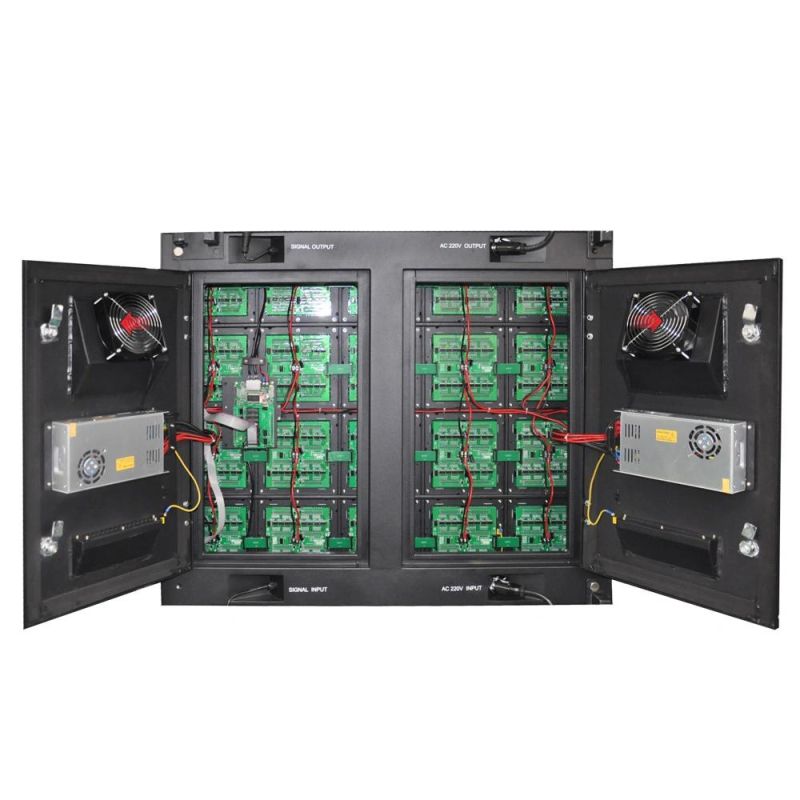

Cabinet strture :

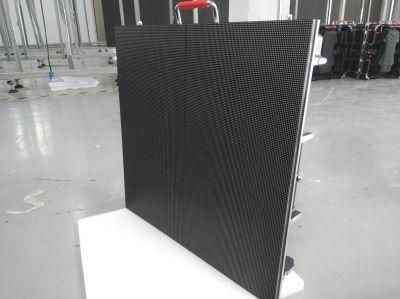

Aging in the factory  :

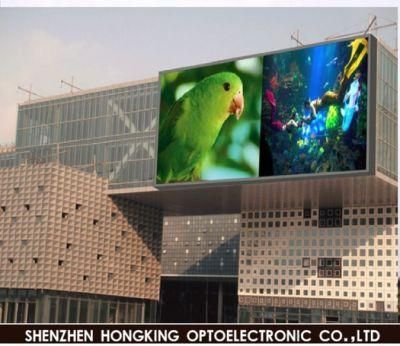

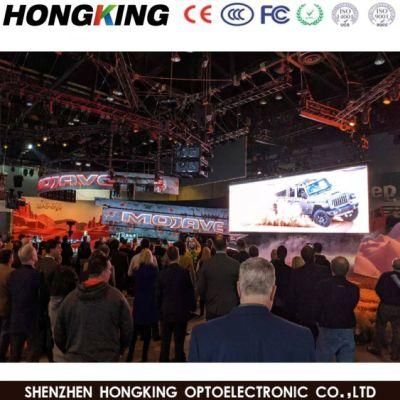

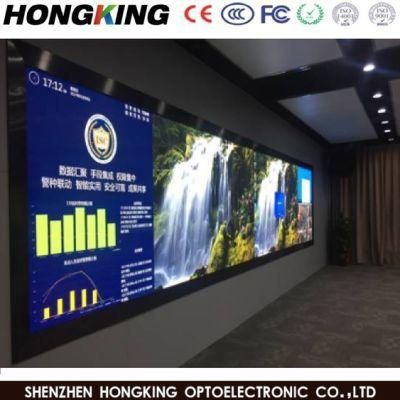

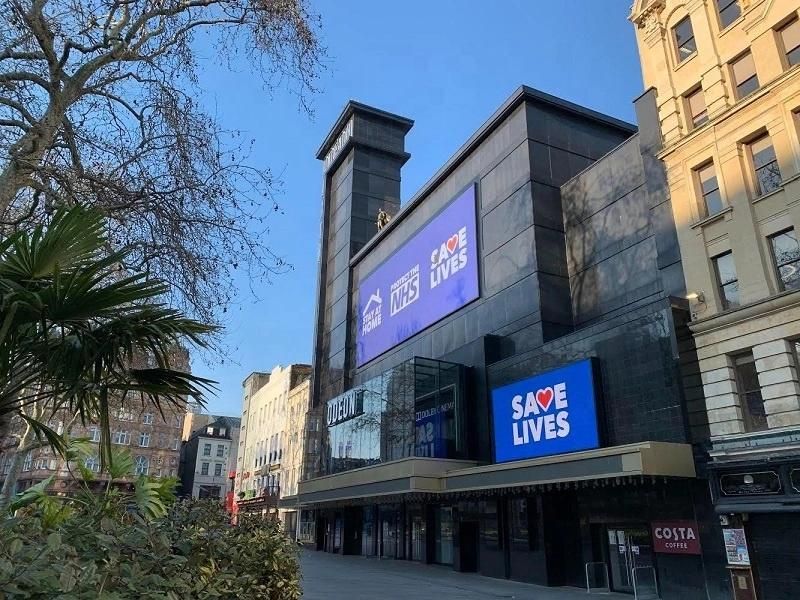

The outdoor led display application

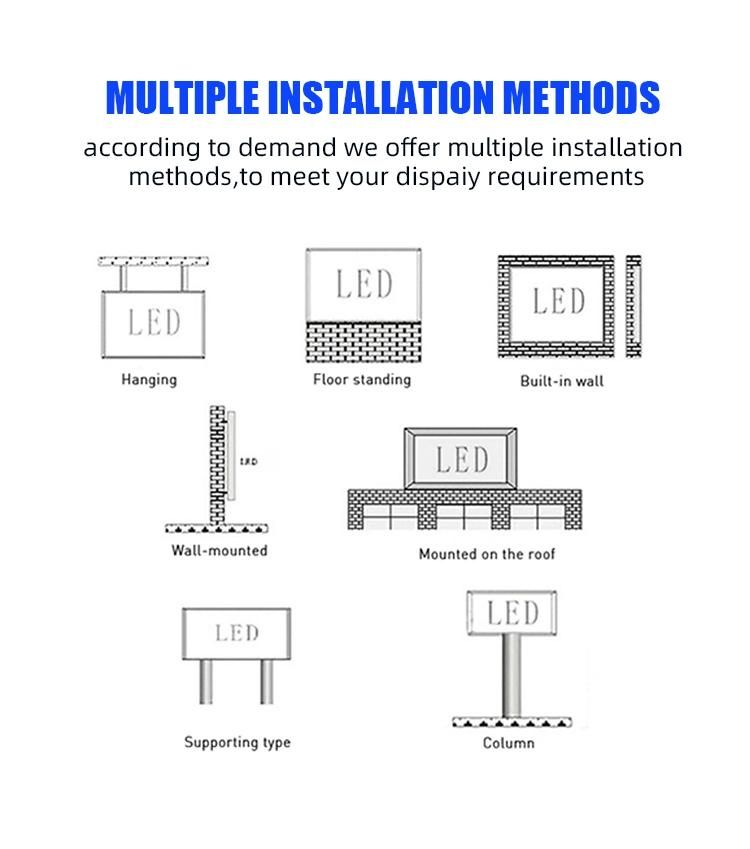

Installation manner
















Packing
