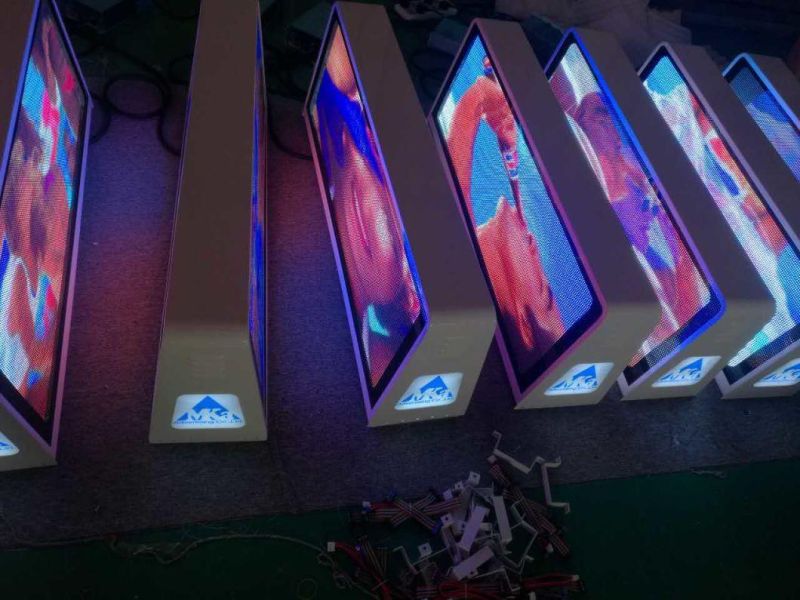

P5 Double Side Taxi Roof LED Screen
Shenzhen FWS Technology Co., Ltd.Base Info
Description
LED LampType SMD 2121 Arrangement 1R1G1B LED Module Pixel Pitch 5mm Module Resolution 64×32=1024(Dots) Module Size 320x160mm LED Cabinet Pixel Density 4000 Dots/sqm The entire screen size(W*H) 1200×450mm Cabinet Resolution 192×64=12288(Dots) Module Quanty /Cabinet 6×2=12(Pcs) Cabinet Material Acrylic Cabinet Weight 8kg Brightness >2800cd/sqm Viewing Angle 110(Horizontal),55(Vertical) Nearest Viewing Distance 5m Power Consumption(Max) 25W/H Power Consumption(Average) 8W/H Display Function Text Refresh Rate >160Hz Drive Mode/Driver Position Constant driving 1/16 Scan,Combined diver board Frame Frequency no less than 60 frame/sec Input Voltage DC12V Output Voltage DC-5V,5A/10A Grey Scale Levels No Brightness Adjustment can be adjusted manually and automatically optional MTBF( mean time between failures) 5000 hours Life-span 100,000 hours Protection Level(front/back) IP65 Malfunction Dot Rate less than 0.003 Working Temperature -15oC~50oC Humidity 15%~85% Control System Control Mode Asynchronization Software PowerLed ( FWS-Huidu) Language Chinese, Traditional Chinese, English, French, German, Japanese, Portuguese, Spanish, Turkish, Arabic, Persian, Mongolian, Thai. Control Card Input RS232/USB Input Signal text PC Operating System Microsoft Windows 10,Windows 7,and XP Communication Type RS232+USB/GSM/GPRS/GPRS+GPS location(available to purchase) Certificate CE,ROHS,FCC,ISO9001, TUV
Control method
Features:
1.Independent power supply design features stable performance. Automatically disconnect to prevent screen burn when the current is too large or too small.
2.Concise and scientific cabinet design is with excellent shock-roof characteristic and easy to maintain.
3.Optokingdom adopt big brand chip and LED to manufacture led message sign with excellent stability and durability.
4.Multiple messages display in turn is available. Display time can be setup as your favor ((accurate to second).
5.The edited content can be stored on the control card and display according the order of play list.
6.High brightness ensure message can be seen within viewing distance even under strong sunshine.
7.It can easy to connect with the GPS terminal.
8.Support various control methods, such as USB,RS232,GPRS,GPS etc.
9.Suitable used for taxi roof led screen.
Our clients

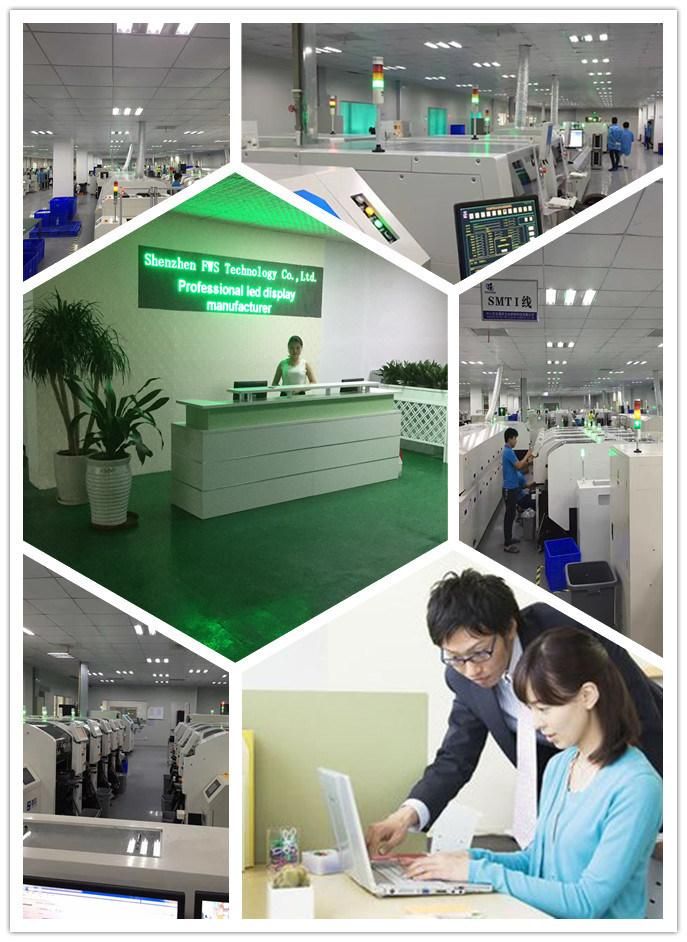

Our factory
Control method
Features:
1.Independent power supply design features stable performance. Automatically disconnect to prevent screen burn when the current is too large or too small.
2.Concise and scientific cabinet design is with excellent shock-roof characteristic and easy to maintain.
3.Optokingdom adopt big brand chip and LED to manufacture led message sign with excellent stability and durability.
4.Multiple messages display in turn is available. Display time can be setup as your favor ((accurate to second).
5.The edited content can be stored on the control card and display according the order of play list.
6.High brightness ensure message can be seen within viewing distance even under strong sunshine.
7.It can easy to connect with the GPS terminal.
8.Support various control methods, such as USB,RS232,GPRS,GPS etc.
9.Suitable used for taxi roof led screen.
