Basic Info.

Model NO. P1.875 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, CCC Modle Size 120mm*120mm Package Mode SMD 2121 Module Thickness 14.75mm Warranty Period 2years Deliver Time 15-20 Days Transport Package Die-Casting Aluminum Case Specification 480mm/480mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 1000sqm/ Month

Product Description

P1.875 Indoor LED Display Technical Parameters

Modle No.	FWS-p1.875
Pixel Pitch	1.875mm
Pixel Configuration	1R1G1B
LED Encapsulation	SMD 2121
Pixel Density	284444 dots/m²
Pixel resolution	W)64 dots * H)64 dots
Brightness	≥800 cd/Sqn
Model Weight	0.16 KG
Color Temperature	6500-9500k
Drive Mode	1/32 Scan
Cabinet Size(W*H*D)	480mm*480mm
Power Supply	5V/60A*PCS
Screen resolution	W)256 dots* H)256 dots
Thermal discharge	Fan 1PCS
Working Voltage	AC220V±10%
Max Pqwer Consumption	≤700w/m²
Average Power Consumption	≤300w/m²
Best Viewing Angle	H:160°  V:120°
Best viewing distance	2m-15m
Refresh Rate	≥1200Hz
Frame frequency	60 HZ
Control Method	Synchronization
Driving Device	Constant Drive
Cabinet Material	Die-casting Aluminum
Gray level	65536 Gray
Working Temperature	-35ºC--85ºC

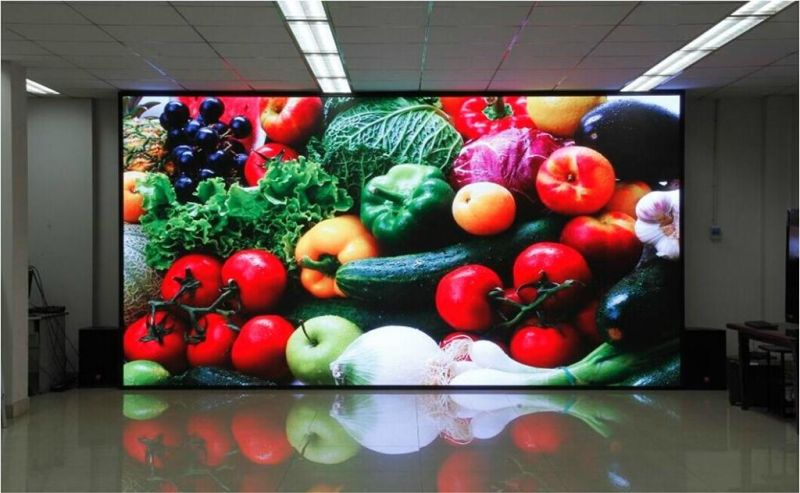

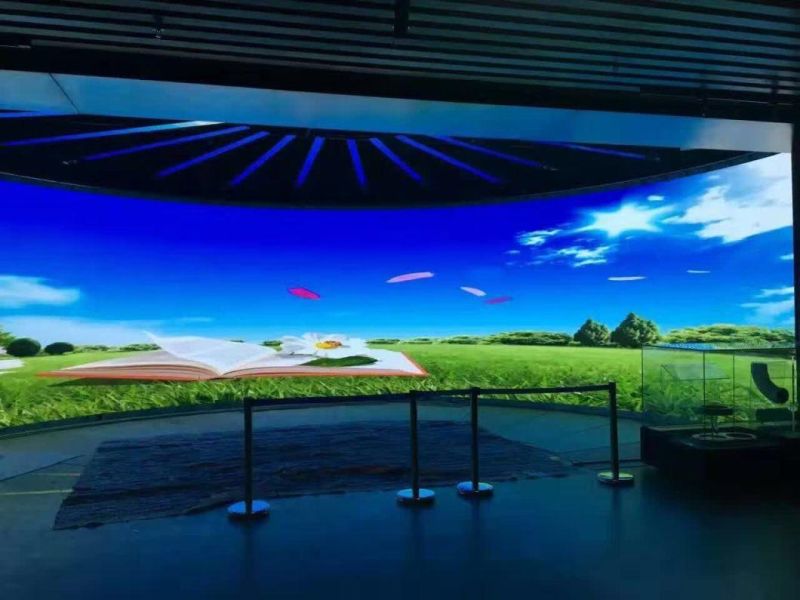

Product Effect Show



Our Clients


Packaging & Shipping


Certification


Our Service
1).Your inquiry related to our products or prices will be replied in 24hrs
2).Well-trained and experienced staffs to answer all your enquires in fluent English
3).OEM&ODM,any your customized screen we can help you to design and put into product
4).Distributoer ship are offered for your unique design and some our current models
5).Protection of your sales area, ideas of design and all your private information

Trade Terms
1).Payment: T/T ,ususally 30% prepayment before production,70% balance to be paid
before deliverying, it also change accordingto total quantity
2).Production lead time less 20 sqm: 7-15days, more than 50 sqm:30days
3).Sample can be delivered in 3days
4).Shipping port: Shenzhen, Mainland China
5).Discounts are offered based on order quantities
6).MOQ:1 sqm/1pcs
