Basic Info.

Model NO. Indoor P3.91-16Scan System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL LED Display Rental LED Display Transport Package Wooden Case /Flight Case Specification 500*500*75mm Trademark hongking Origin Made in China HS Code 8528591090 Production Capacity 2000000square Meter /Month

Product Description

 Indoor Rental Video Wall P3.91 P4.81 for  big stage

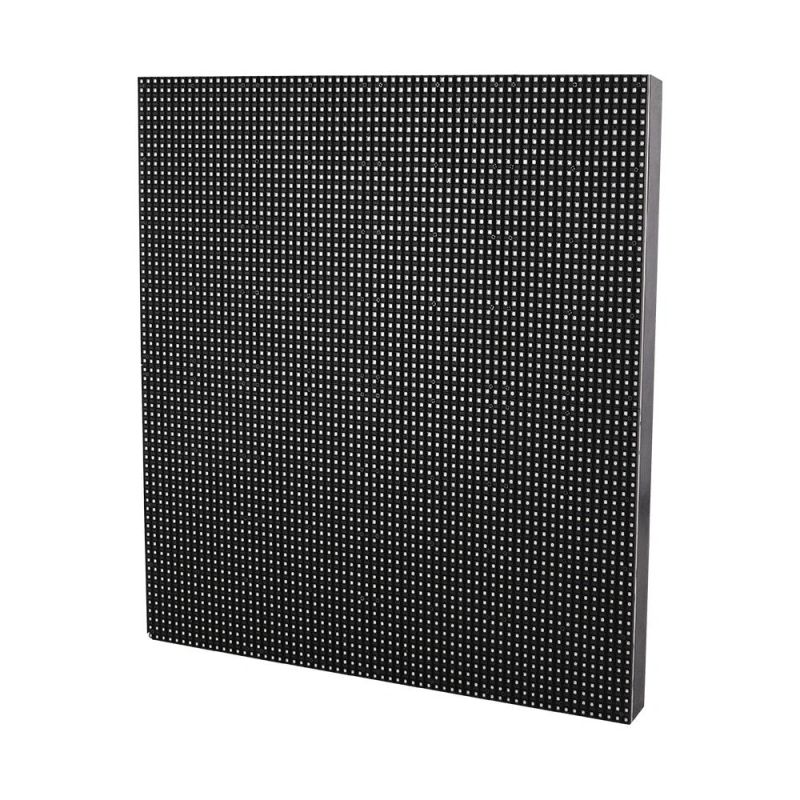

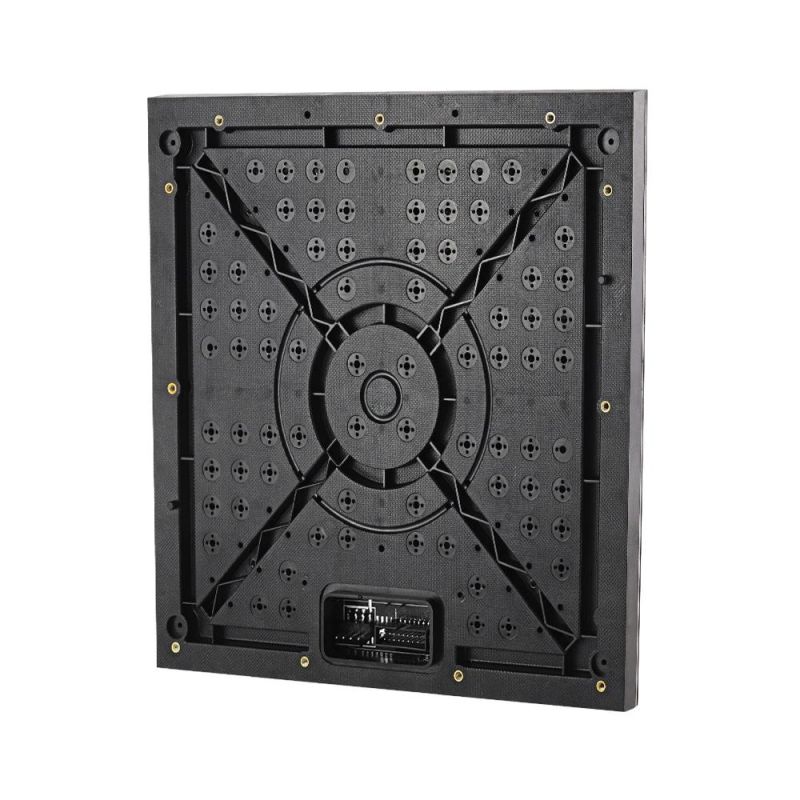

Modules picture :

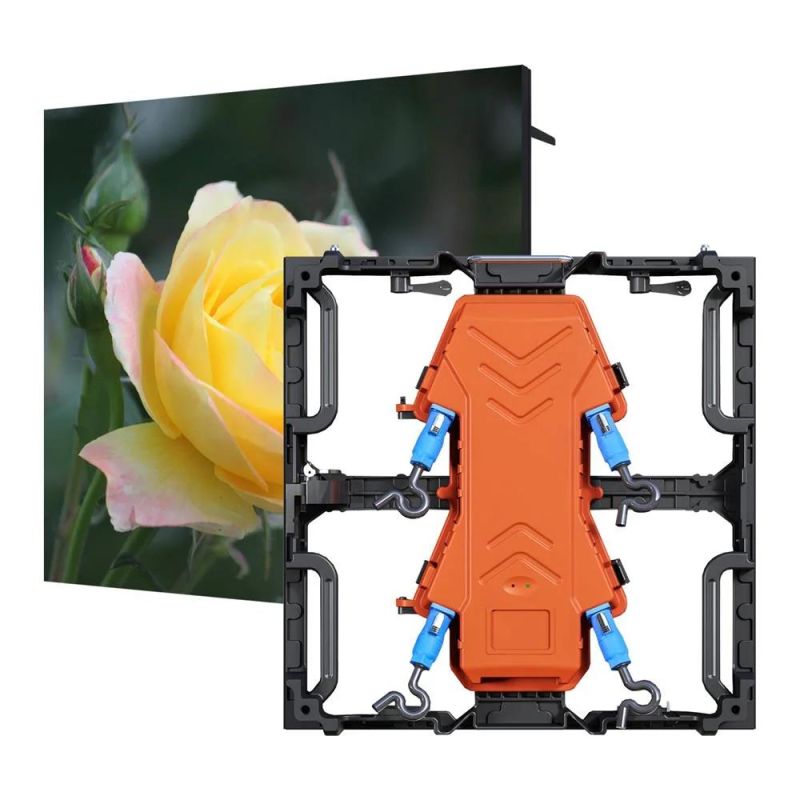

Cabinet Picture :






P3.91 Indoor led specification :

Product Model	Rental Indoor ZS2.84	Rental Indoor ZS3.91	Rental Indoor ZS4.81
Pixel Pitch	2.84 mm	3.91mm	4.81 mm
Module Size	250x250 mm	250x250 mm	250x250 mm
Module Resolution	88x88 pixels	64x64 pixels	52x52 pixels
LED	SMD 2020	SMD 2020	SMD 2020
Standard Cabinet Size	500x500 mm	500x500 mm	500x500 mm
Standard Cabinet Resolution	176x176 pixels	128x128 pixels	104x104 pixels
Standard Cabinet	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Physical Density	123904 Pixels/m2	65536 Pixels/m2	43200 Pixels/m2
White Balance Luminance	≥800 nits	≥800 nits	≥800 nits
Gray Scale per Color	16384 level	16384 level	16384 level
Contrast	3000:01:00	3000:01:00	1000:01:00
Refresh Frequency	≥1920 Hz	≥1920 Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140/140°	140/140°	140/140°
Max Power	800 W/m2	650 W/m2	650 W/m2
Average Power	240 W/m2	200 W/m2	200 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP
Rental LED Display(576*576mm)
Product Model	Rental Indoor ZS4	Rental Indoor ZS4.81	Rental Indoor ZS5.33
Pixel Pitch	4 mm	4.8mm	5.33 mm
Module Size	288x288 mm	288x288 mm	288x288 mm
Module Resolution	72x72 pixels	60x60 pixels	54x54 pixels
LED	SMD 2020	SMD 3528	SMD 3528
Standard Cabinet Size	576x576 mm	576x576 mm	576x576 mm
Standard Cabinet Resolution	144x144 pixels	120x120 pixels	108x108 pixels
Standard Cabinet	Die Casting Aluminum	Die Casting Aluminum	Die Casting Aluminum
Physical Density	62500 Pixels/m2	43400 Pixels/m2	27777 Pixels/m2
White Balance Luminance	≥1000 nits	≥1000 nits	≥1200 nits
Gray Scale per Color	16384 level	16384 level	16384 level
Contrast	3000:01:00	3000:01:00	1000:01:00
Refresh Frequency	≥1200 Hz	≥1200 Hz	≥1200 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°
Max Power	900 W/m2	900 W/m2	900 W/m2
Average Power	300 W/m2	300 W/m2	300 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,
