Basic Info.

Model NO. P2 System Operating Platform PC+DVI Display Card Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP54 Certification CE, RoHS, UL, CCC, ETL, CF Warranty Period 2years Deliver Time 15-20 Days Drive Type Constant Drive Package Mode Flight Case Modle Size 128mm*128mm Life Span 100000 Hours Brightness 2800 Color Display Full Color IC Import IC Monthly Sales 1000 Sqm Transport Package Die Aluminum Cabinet or Iron Standard Cabinet Specification 512*512*70mm or biger Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 1000sqm/ Month

Product Description

Indoor P2 display module technical specifications

Ltem	Parameter
Model number	F-2
Module size	128mm*128mm
Module thickness	17mm/Panel
Pixel pitch	2mm
Package Mode	1010
Pixels density	250000 dot/sqn
Pixel comfiguration	1R1G1B
Max power	30W
Weight	0.34kg
Driver type	Constant drive
Scan mode	1/32scan
Port type	HUB75-A
Brightness of white balance	≥2800 cd/sqn
Dimension	512mm*512mm*70mm
Monomer module number	2*2=4 pcs
Power supply	5v/40a
Best viewing angle	110°(W)110°(H)

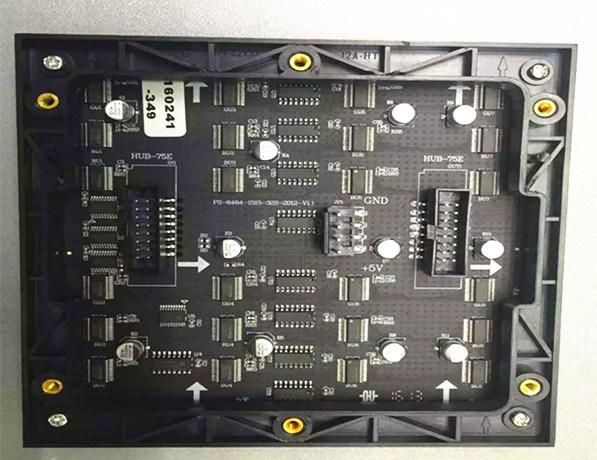

LED Module
