Overview Product Description

1, Universal cabinet, compatible with modules of various pixel pitch;
2, High contrast and high refresh rate make the LED display work well without any delay or ghosting;
3, Good Raw Materials: Opto/ Epistar/ Silan/ Huacan/ Sanan led chip, Nationstar led lamp, MBI IC, 4, Chenglian/ Meanwell Power Supply, Meanwell/ ADDA fan, Beijing/ Korean glue;
5, Can load more cabinets in 1 flight case--save cost;
6, Use DIP technology to make the LED display have good waterproof and anti-humidity when used;


After Sales Service

1, Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs;
2, We assist with training and technical support for the customer in the factory, if required. You can also send your engineer to our factory at any time for LED display training. This service is free of charge
3, LED WORLD can offer you LED stage display, LED outdoor video wall, wedding LED display, stage 4, LED electronic screen, and led large screen full-color display;
4, Response in time, solve problems at once, and ensure customer's fast installation and usage;


Product Parameters



ItemsP4mmP5mmP6mmP8mmP10mmPixel1R1G1B1R1G1B1R1G1B1R1G1B1R1G1BConfigurationSMD2525SMD2727SMD3535SMD3535SMD3535Pixel Pitch4mm5mm6mm8mm10mmPixel Density62500 dots/m240000 dots/m227777 dots/m215625 dots/m210000 dots/m2Module Size(mm)256x128160x160192x96or 192x192256x128320x160Pixels/Module64x3232x3232x16 or 32x3232x1632x16Cabinet Size(mm)768x768960x960960x9601024x1024960x960Pixels/Cabinet192x192192x192160x160128x12896x96Cabinet Weight24KG36KG36KG41KG36KGBrightness>5500cd/>5500cd/>6000cd/>5000cd/7000cd/Viewing Distance>4m>5m>6m>8m>10mPowerMax: 1300Max: 1300Max: 1300Max: 1000Max: 1000Consumption(W/)Ave: 300Ave: 300Ave: 260Ave: 260Ave: 300Driver Mode1/8 scan1/8 scan1/4 scan or 1/81/4 scan or 1/81/2 scanViewing AngleH: 120°;   V: 120°Cabinet MaterialCold Rolled Steel or aluminumRefresh Rate300-3000HZ adjustableLED Life100,000 hoursSupply VoltageAC220V/50HZ; AC110V/60HZOperating Temperature-20ºC ~ +50ºCOperating Humidity10% - 90%Gray ScaleRed, Green, and Blue each 16KDisplay Color4096 BillionIP RatingFront IP65Display CapabilityText, Graph, and VideoNotes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

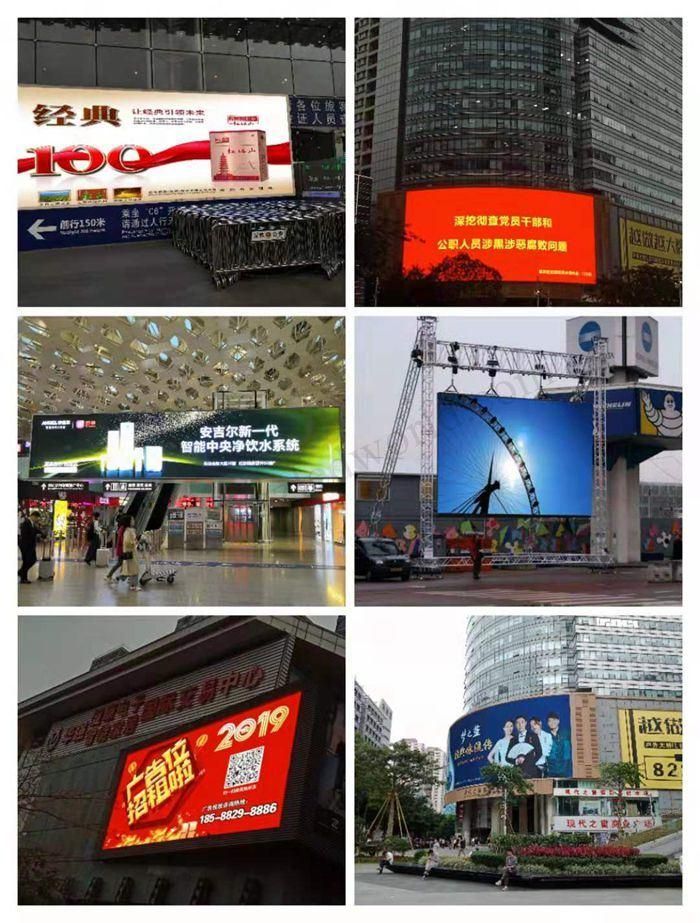

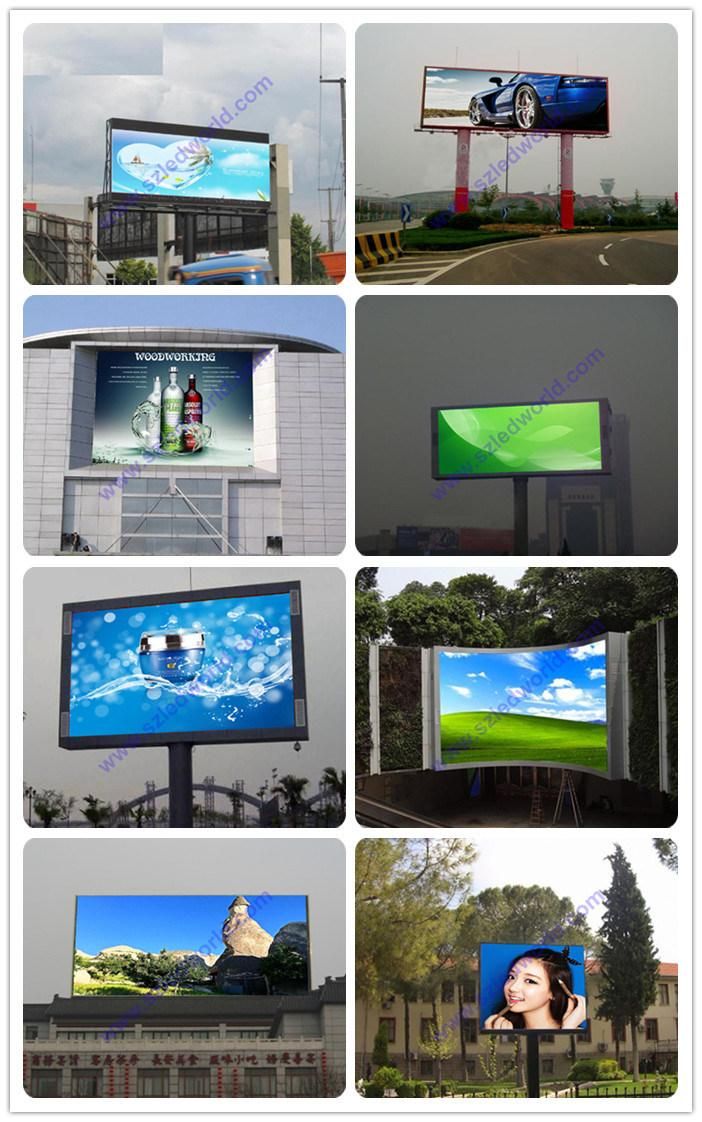

Our project:



Our features
1. Good quality and price
The price is 10% lower than the market because of the introduction of a fully automatic production line with the characteristics of reducing the cost of labor and management;
2. Lightweight with no rust
It can use aluminum cabinet greatly saving fright cost and conveniently installing;
3. Stable performance
our most basic guarantee: the aging time exceeding 24 hours. Malfunction dot rate less than 0.0001. MTBF more than 1000 hours;
4. Best quality LED chip tube
the GREE, SILAN, OPTO, EPISTAR assuring high brightness and long lifespan;
5. Supporting different formats of images and videos
Flash, WAV/MIDI, Videos from TV, and other equipment.

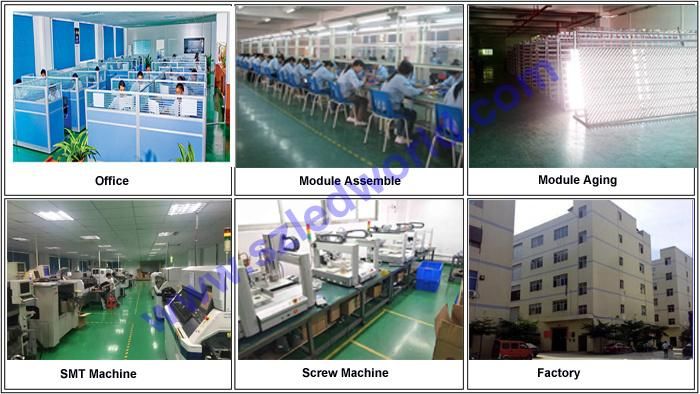

Our factory:


Applications:Business Organizationssupermarket, shopping mall, office building, industrial park, exclusive agency, chain shop, hotel, restaurant, travel agency, pharmacy, etc.Financial Organizationsbanks, security companies, insurance companies, post offices, hospitals, schools, etc.Public Placessubway, airport, train/bus station, gas station, toll station, bookstore, park, exhibition hall, stadium, museum, convention center, ticket center, HR market, lottery center, plaza, commercial building, parking lot, etc.Entertainmentsmovie theater, fitness hall, country club, night club, massage room, bar, cafe, Internet bar, beauty shop, golf course, casino, etc.Packaging & Shipping
Standard Package: Veneer Case(Usually 4 cabinets in 1 veneer case)
Delivery time: 10-25 days after receiving the deposit

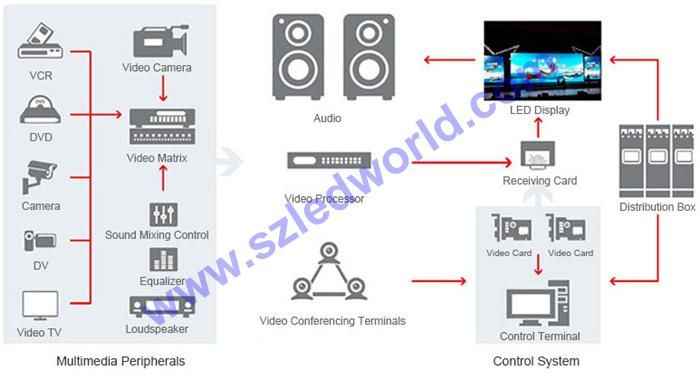

Control system:

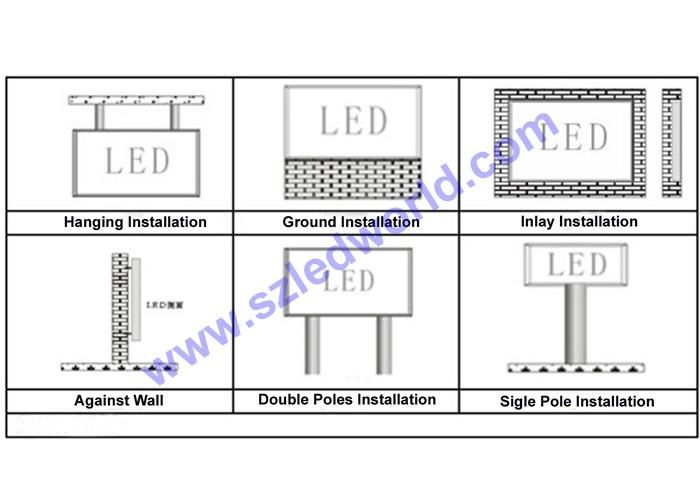

Installation:

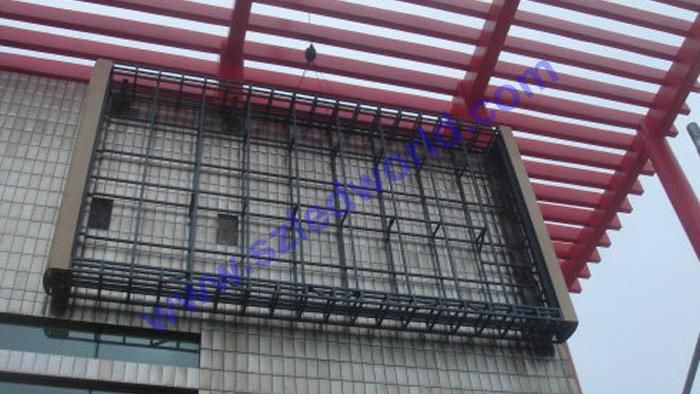

Steel structure:

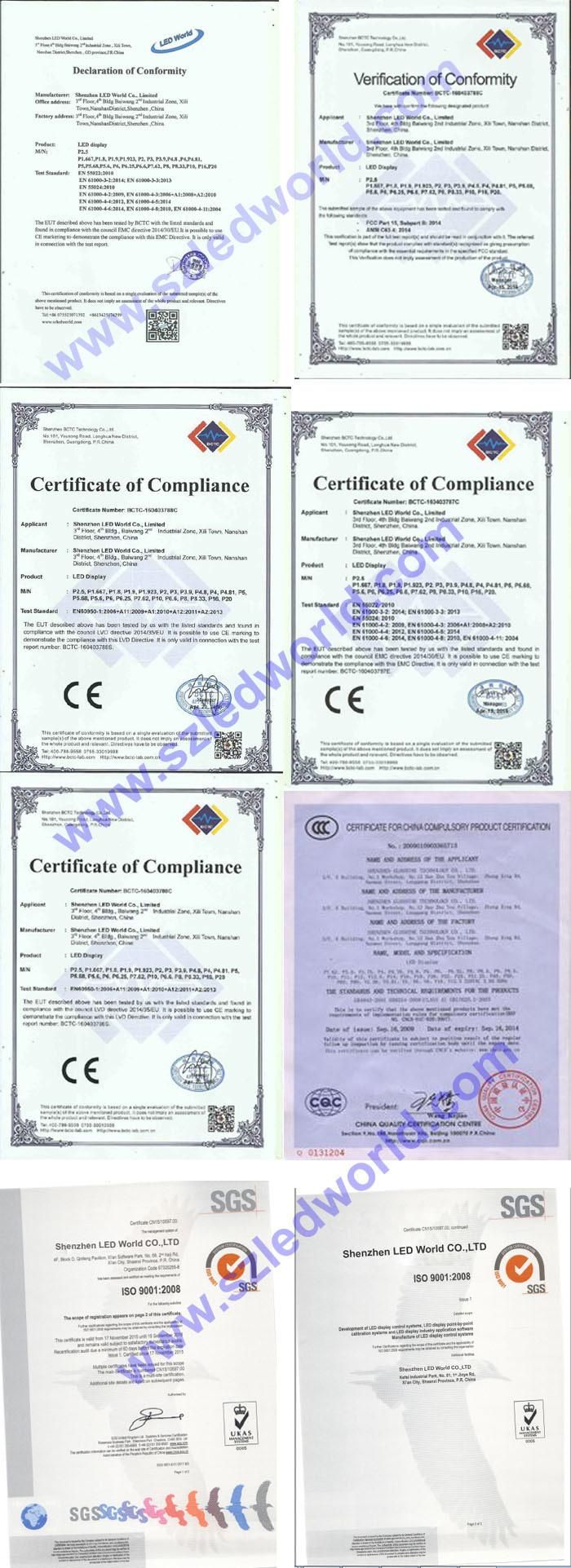

Certification:



Training:
We offer training for free.
Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.
We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
