High Refresh Rate Indoor Full Color P2 SMD2121 LED Billboard Display Screen
Shenzhen FWS Technology Co., Ltd.Base Info
Description
Pixel Information
Pixel Pitch
2mm
Technology
SMD 3 in 1
Pixel Density
250000Pixels/m2
Pixel Configuration
1R1G1B
LED Module
Module Size
256mm (Width) × 128 mm(Height) = 0.032768/m2
Module Resolution
128 pixels(Width) × 64 pixels(Height) = 4096 pixels

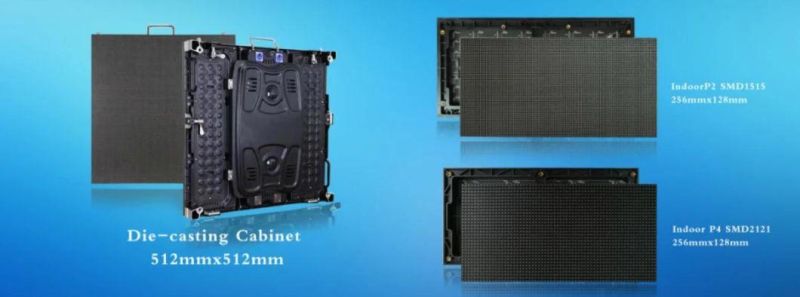

LED Cabinet
Cabinet Size
512mm(Width) × 512 mm(Height) = 0.262144/m2
Cabinet Resolution
256Pixels(Width) × 256 Pixels(Height) = 65536Pixels
Total QYT Module Per Cabinet
2 Modules(Width) × 4Modules(Height) = 8 Modules
Cabinet Weight
3.9kg
Cabinet Material
Power
Input Voltage
100-240V AC, 50/60Hz
Max Power Consumption
780 W/m^2
Avg. Power Consumption
300 W/^m2
Viewing
Brightness
800-1200cdm
Brightness Uniformity
Luminance Discrepancy < 5%
Colors
16777216
Grey Scale(Level)
4096
Slot Between Neighboring Modules
< 1 mm
Best Viewing Angle
Horizontal:160°,Vertical:160°
Viewing Distance
5 - 300 meters
Ambint Conditions
Temperature Range
Storage:-40deg. to +85deg.; Working:-20deg. to +60deg
Operating Humidity
10%90%RH
Ingression Protection Grade
Front IP40,Back IP54
Processing
Scanning Mode
1/32Scan
Refresh Frequency
180HZ-600HZ, Adjustable
Signal Input
DVI, Composite Video for Live Video
Supported Networking
Through LAN/WAN, RS 232/RS485
Other
Life Span
50,000 - 100,000 Hours
Software
Nova Star,Cololight,Huidu ect
Certifications
