Basic Info.

Model NO. p2.5 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP65 Certification CE, RoHS, UL, CCC, ETL, CF Warranty Period 2years Module Resolution 16*16 Brightness 2800 CD/M2 Weight 22 Kg/M2 Deliver Time 15-20 Days Drive Type Constant Drive Life Span 100000 Hours Package Mode SMD 2121 LED Black LED Color Display Full Color Transport Package Die Casting Cabinet Specification 640mm*640mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 1500square Foot/Square Feet Per Month

Product Description

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.

Item	Parameter
Product model	FWS-P2.5
Pixel configuration	1R1G1B
Pixel pitch	2.5mm
Resolution	160000dots/ m²
Piexl resolution	64*64
Brightness of white balance	≥2800cd/ m²
Optimal viewing angle	120°(W) 60°(H)
Refresh rate	≥1920Hz
Frames per second	≥60Hz
Transparency	55%
Power consumption	460W/ m²(Maximum power); 200W/ m²(Average power)
Weight	≤22kg/ m²
Cabinet size	640mm*640mm
Protection Grade	IP65
Power supply requirement	220VAC( 110VAC )±10%
System operating  temperature/ humility	-35 ºC to +50 ºC;10% to 90%
Control distance	≤100m

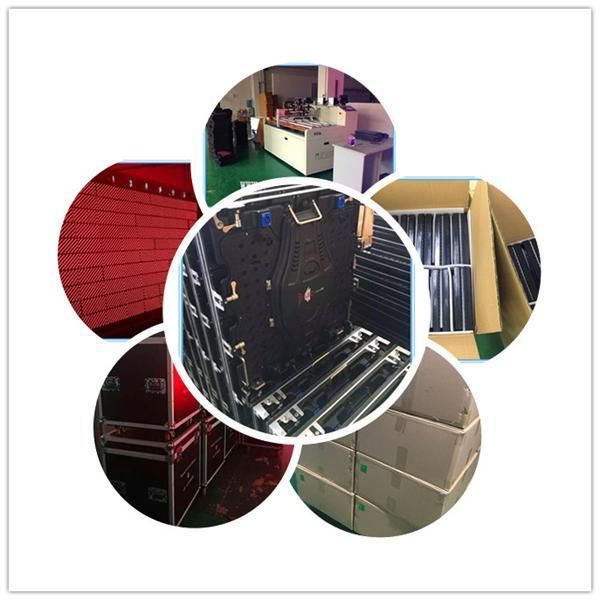

Packaging
