LED Commercial Advertising Display Screen Low Price P12
Shenzhen FWS Technology Co., Ltd.Base Info
Description
P12 Outdoor full Color LED Screen SpecificationPixel pitch 12mm Pixel Configuration 1R1G1B LED component DIP 546 Size of module 192mm x 192mm Resolution of module 16x16 Resolution of cabinet 96x80 Material of Cabinet Iron with back doors Weight of Cabinet <70KGS Brightness >7500cd/sq.m Density 6944dots/sq.m Best viewing angle 110 /50 Best viewing distance 10-150M Maximum power consumption <800W/sq.m Average power consumption <300W/sq.m Driving method 1/4 scan Control method Synchronization/Asynchronization Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >1800Hz IP grade IP65 Life Span 100,000 hours Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

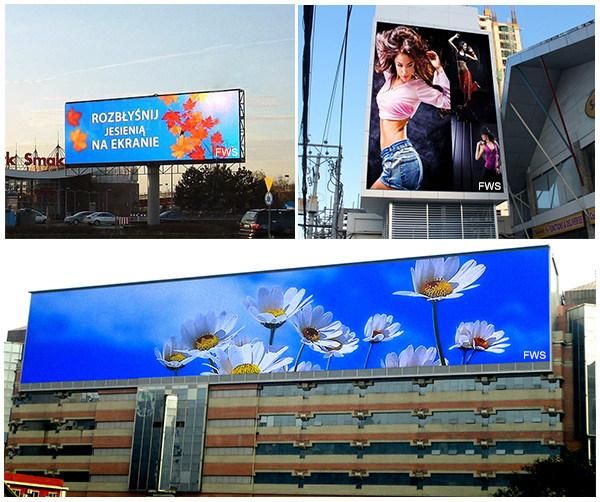

Our project
