Basic Info.

Model NO. P2 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, CCC Modle Size 192mm*96mm Package Mode SMD 2121 Module Thickness 14.66mm Warranty Period 2years Deliver Time 15-20 Days Transport Package Die-Casting Aluminum Case Specification 576*576mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 2000sqm/ Month

Product Description

P2 Indoor Full Color 1r1g1b LED Module technology parameters
P2 high-density products using the latest generation of technology,the pixel dots reached 250000 per suare,more than the TV screen splicing wall pixels,LED display seamless splicing,visual effect far exceeding the splicing screen. And easy to install,easy to maintain.A new generation of P2 products can be further improved visibility,fully visible,LED display on the use of life is more than 100000 hours,more than halef of the wall service life,amd will not be like the wall as a need to replace the backlight or replacement lamp.Features:high density,high contrast.adjustable,high ash,high brush,thin body,high precision,seamless stitching,wide viewing angle,low power consumption,high life.Picture true nature.

Modle No.	FWS-p2
Pixel Pitch	2mm
Pixel Configuration	1R1G1B
LED Encapsulation	SMD 2121
Pixel Density	250000dots/m²
Pixel resolution	W)96 dots * H)48 dots
Brightness	≥800cd/Sqn
Model Weight	0.155 KG
Color Temperature	6500-9500k
Drive Mode	1/24 Scan
Cabinet Size(W*H*D)	576*576MM
Power Supply	5V/60A*2pcs
Thermal discharge	Fan 1PCS
Working Voltage	AC220V±10%
Max Pqwer Consumption	≤980w/m²
Average Power Consumption	≤360w/m²
Best Viewing Angle	H:160°  V:140°
Best viewing distance	2m-15m
Refresh Rate	≥1200Hz
Frame frequency	60 HZ
Control Method	Synchronization
Driving Device	Constant Drive
Cabinet Material	Die-casting Aluminum
Operation Voltage	110v/220v/47-63Hz
Working Humidity	10%--70%
Working Temperature	-20ºC--50ºC

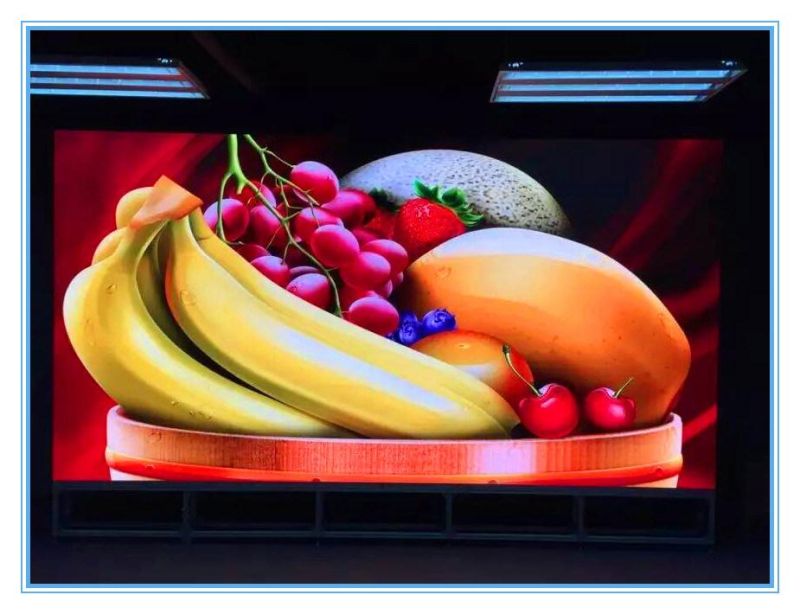

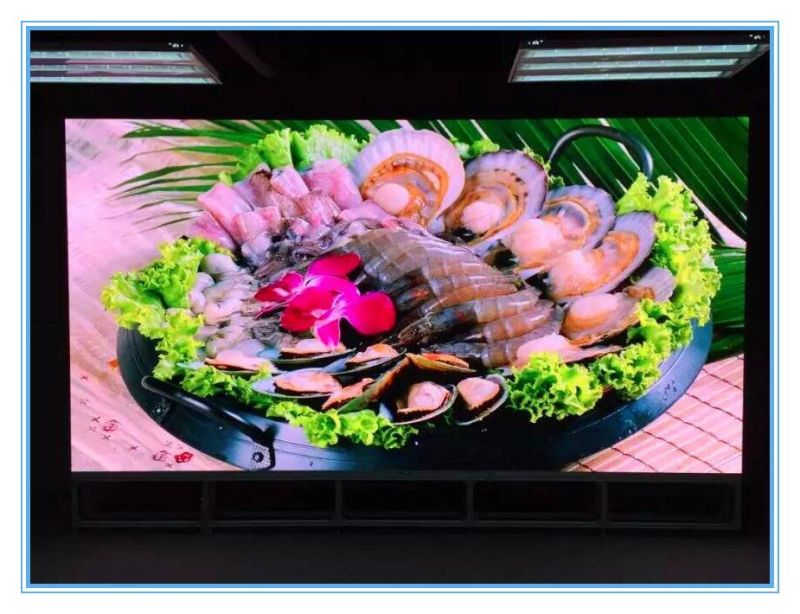

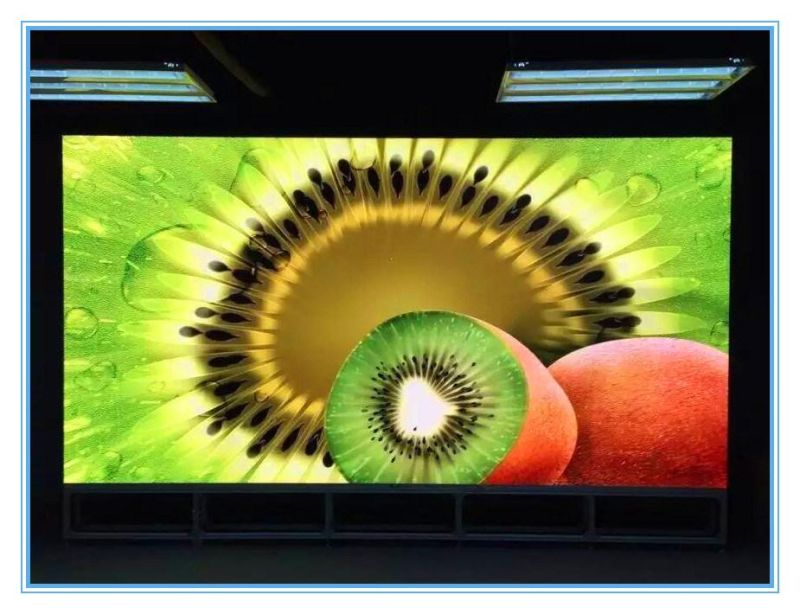

Effect Show

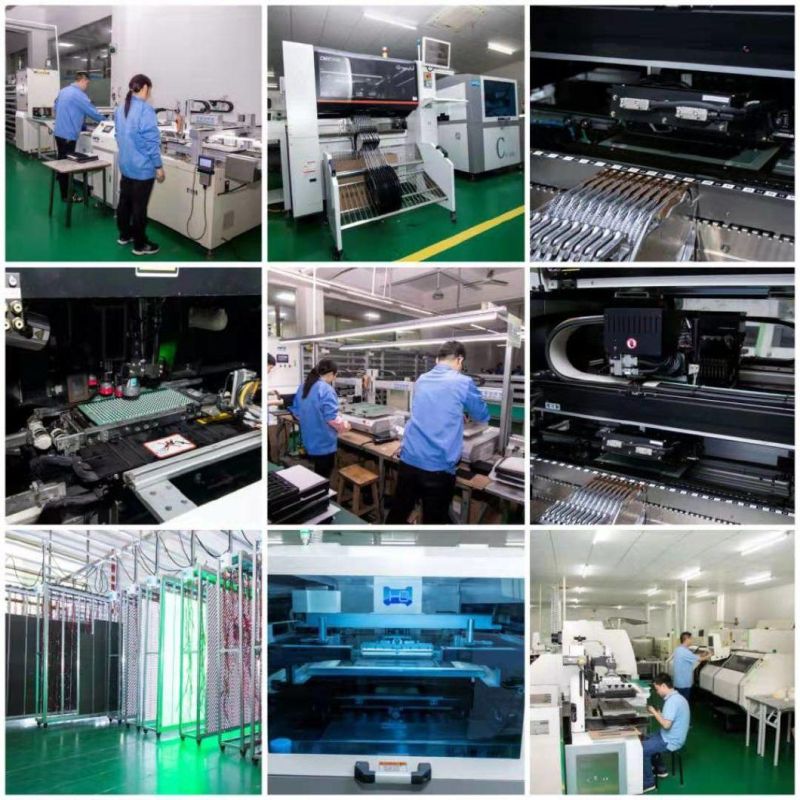

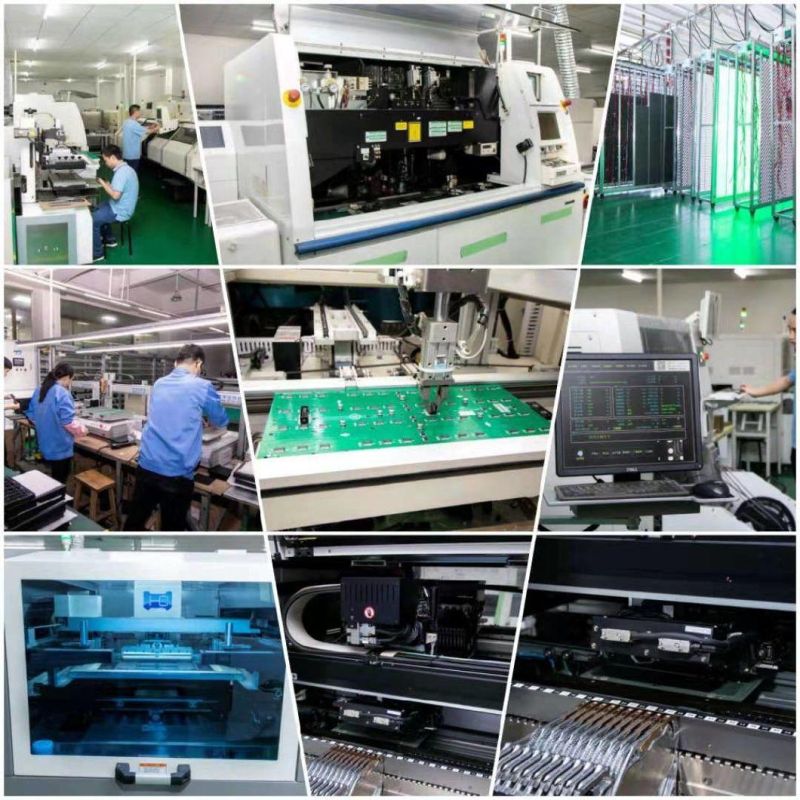

Our workshop

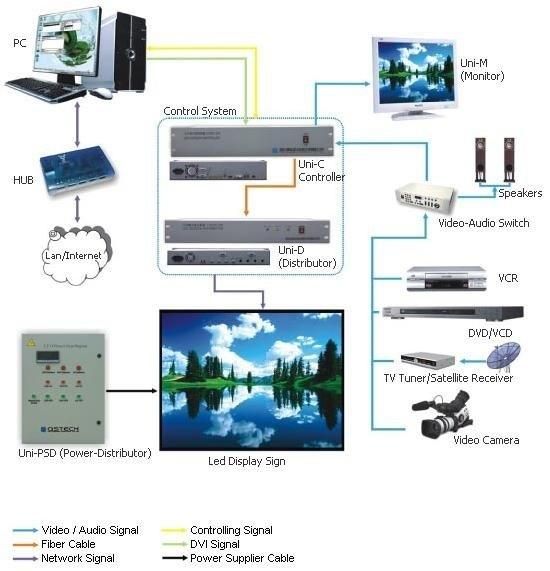

Control System

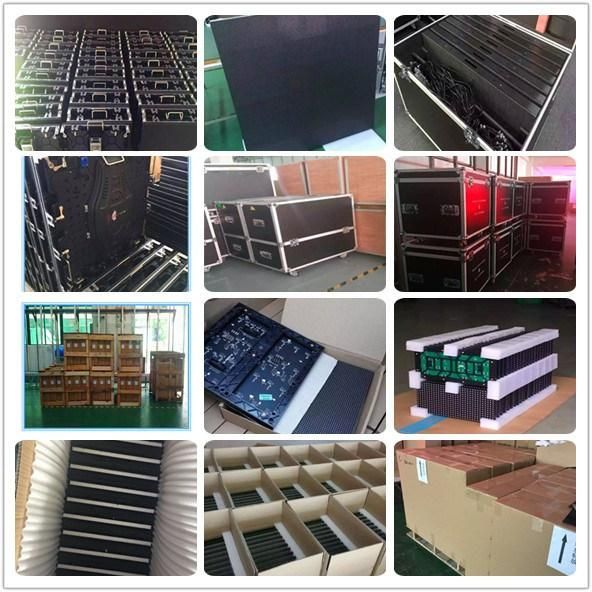

Packaging&shipping

Customer Visiting

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information

Certificate

Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
