Item

Full Color P8 Outdoor Advertising LED Display Module

Model Number

OBM-P8

Pixel Pitch

8mm

Pixel Density(pixels/M2)

15625 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

Epistar, SMD

Module Size(mm)

320x160mm

Module Resolution(pixels)

40*20p

Min.Viewing Distance(m)

8

Brightness(nits)

>6500

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

300

Scan Mode

1/8 Scan

Protection Level

IP65/IP54

Cabinet Size(mm)

960x960mm / 960x1280mm / 1280x960mm

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

>1920Hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

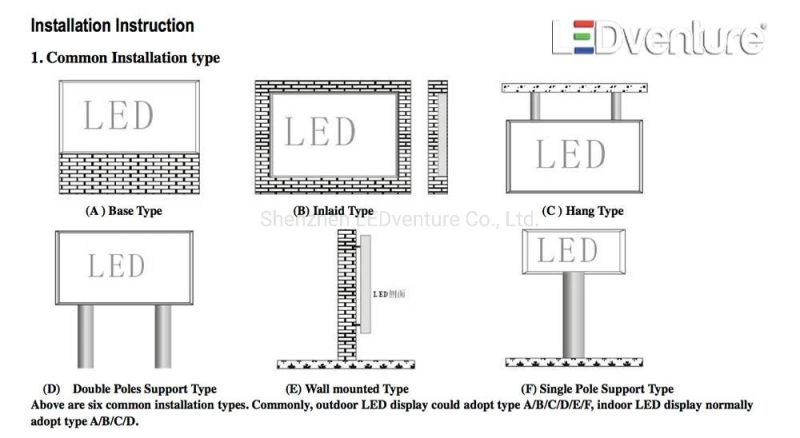

Part 5: Installation Methods

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

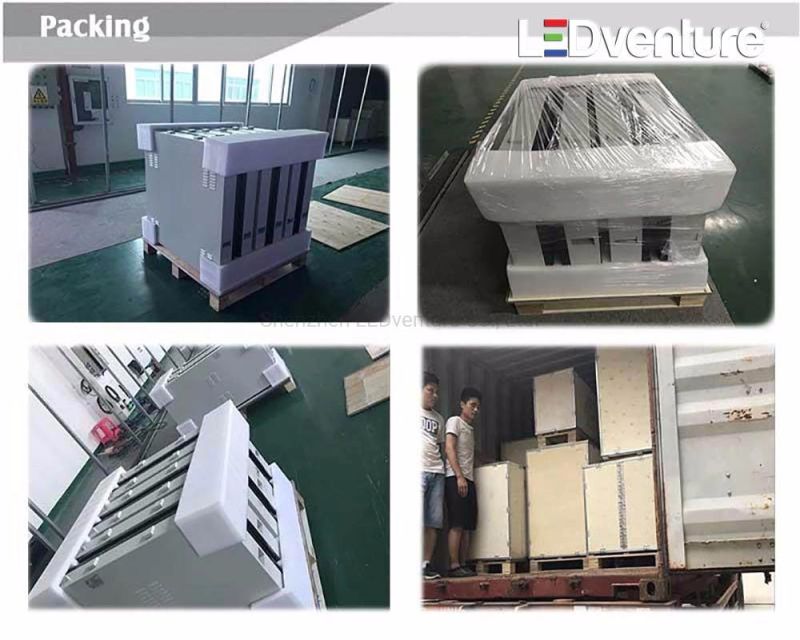

Part 6: Packing Information

Packing by plywood cases, packing well and easy to load
Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

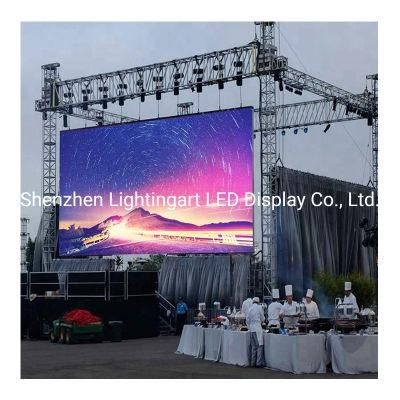

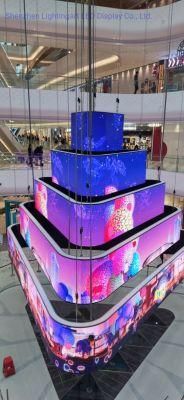

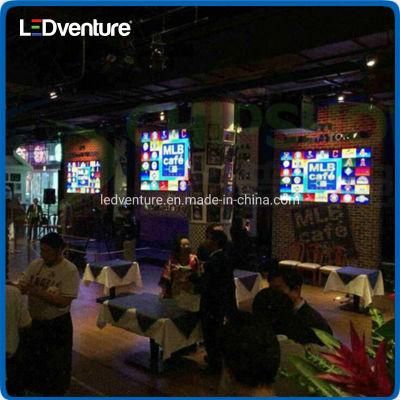

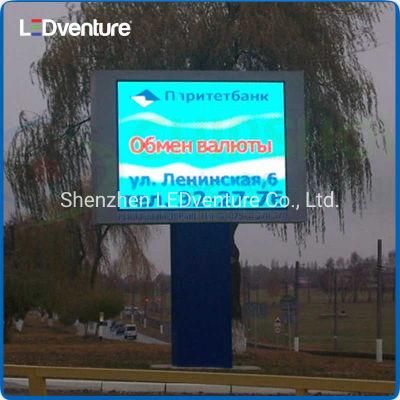

Part 9: LED display screen installation cases.

Most of our led display exported to Europe with high standards, and also exported toUSA, South America and Asia
