Basic Info.

Model NO. Indoor P5 screen System Operating Platform Windows 7/8/10 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, UL, CCC, ETL Product Name Indoor LED Display P5 Driver IC High Refresh IC Brightness 900CD/M2 Refresh Rate 1920Hz Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours LED Lamp Nationstar or King Light Transport Package Wooden Case Specification 640*640mm Trademark hongking Origin Shenzhen China HS Code 8528591090 Production Capacity 2000000square Meter /Month

Product Description

                                Front Service Indoor P5 SMD RGB LED Display Panel
1.Most of our product use material as follow:
    MBI5153 or ICN 2153  Driver IC
    refresh rate 3840HZ
    4 layer pcb 1.6mm ,mask and base
    2-3 years warranty.

 2. If you have interests in buying, pleased send A complete inquiry need to show:
      1. led screen panel pixel pitch, if you dont know how to choose, contact us
      2. led screen size:length ___m; width___m,or cabinet quantity;
      3. use for indoor or outdoor;  fixed installation or rental?
      4. intallation place pictures will be better;
Specification details :


Product Model	Indoor Fixed F5	Indoor Fixed F4
Pixel Pitch	5 mm	4 mm
Module Size	160x160 mm	256x128 mm
Module Resolution	32x32 pixels	64x32 pixels
LED	SMD3528	SMD2121
Standard Cabinet Size	960x960 mm	768x768mm
Standard Cabinet Resolution	192x192 pixels	192x192pixels
Standard Cabinet	Iron	Iron
Physical Density	40000 Pixels/m2	62500 Pixels/m2
White Balance Luminance	≥1000 nits	≥1000 nits
Gray Scale per Color	16384 level	16384 level
Contrast	1000:01:00	1000:01:00
Refresh Frequency	≥1920Hz	≥1920 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°
Max Power	600 W/m2	650 W/m2
Average Power	200 W/m2	220 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP

certificate :

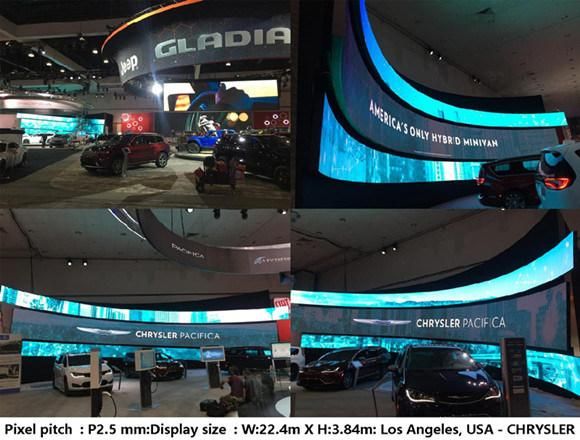

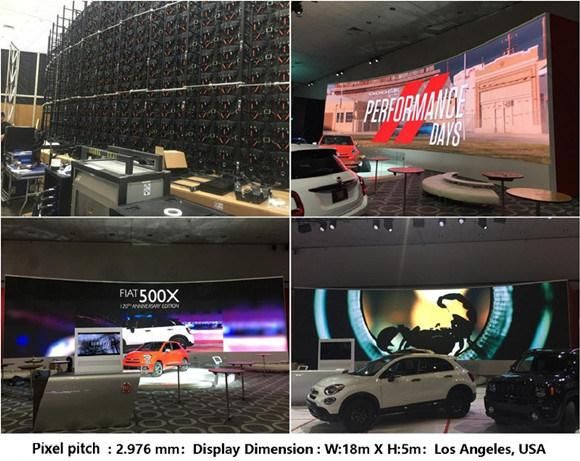

product show :

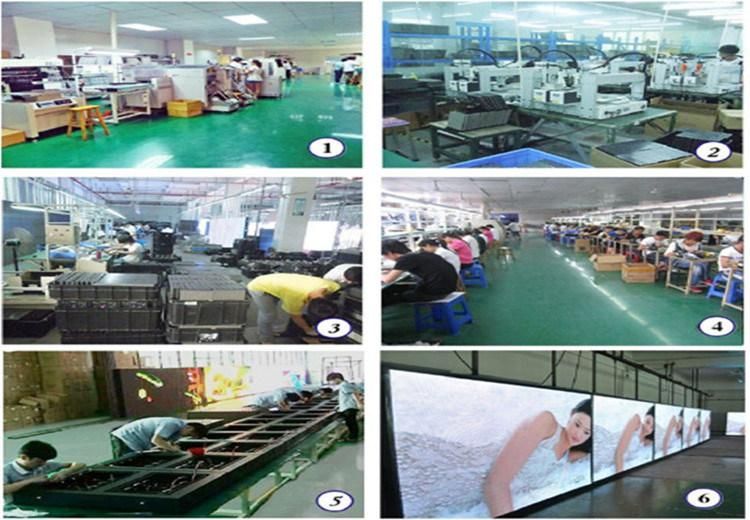

company workshop :

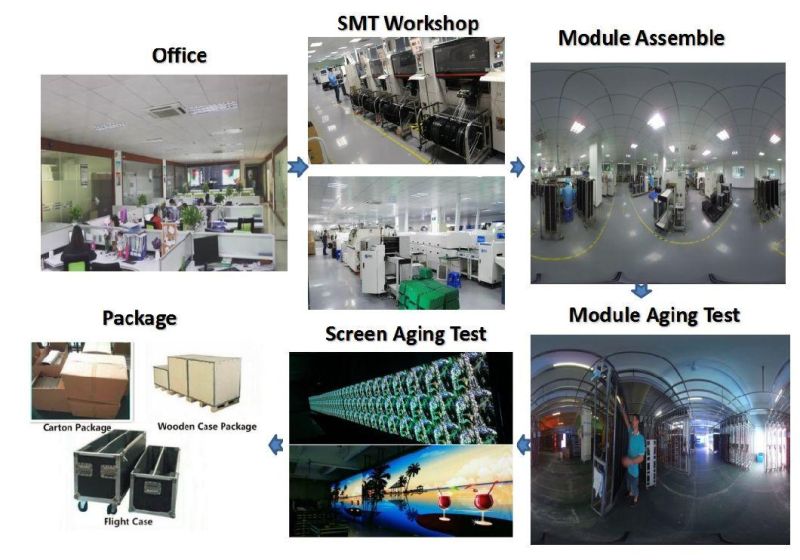

Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Packaging :
Product is packed by carton, wooden case or flight cases

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

Payment term: T/T , usually 30~50% down payment before production,balance to be paid before delivery

Delivery time:Production lead time less 20 sqm is about 8-12 working days, more than 50 sqm. is about 15 working days

Free sample or not: Sample is available,but need to pay the material cost and freight cost

Shipping port: Shenzhen, Mainland China

MOQ: 2 sqm for led screen,and10pcs for led module

Guarantee:Two years quality guarantee,after two years,we will ask for material cost only,customer pay freight cost

Package and fast shipping
Anti-shaking wooden case
Carton box
Flight case
The transportation can be support by air ,by sea ,or by express as request

hongking  always provide high quality products to our customers,and good after-sale service,obtained a good reputation,we produce our products based on international standards FCC,CE,RoHs,and with a strict quality control system,and confirm 2 to 3 years warranty,during this period,we will repair the default parts with free of charges,after the period,and during the lifetime,we only ask for material costs.
