Basic Info.

Model NO. P10 Scanning Mode 1/4 Scan System Operating Platform Win XP, Win7, Win8, Win8.1 Display Type LED Dot Matrix Display Brightness 4500 cd / m² Certification CE, UL, CCC Resolution 160*32 Display Size 1600X320mm Delivery Time 5~15 Working Days Warranty 2 Years OEM Yes Transport Package Woodcase with EPE Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 1000sqm/Month

Product Description

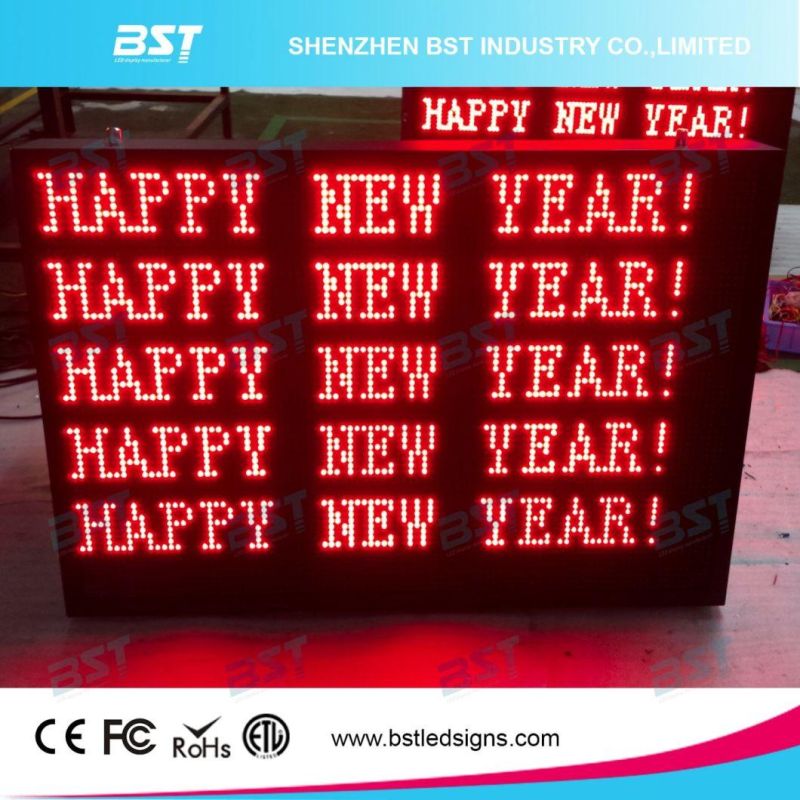

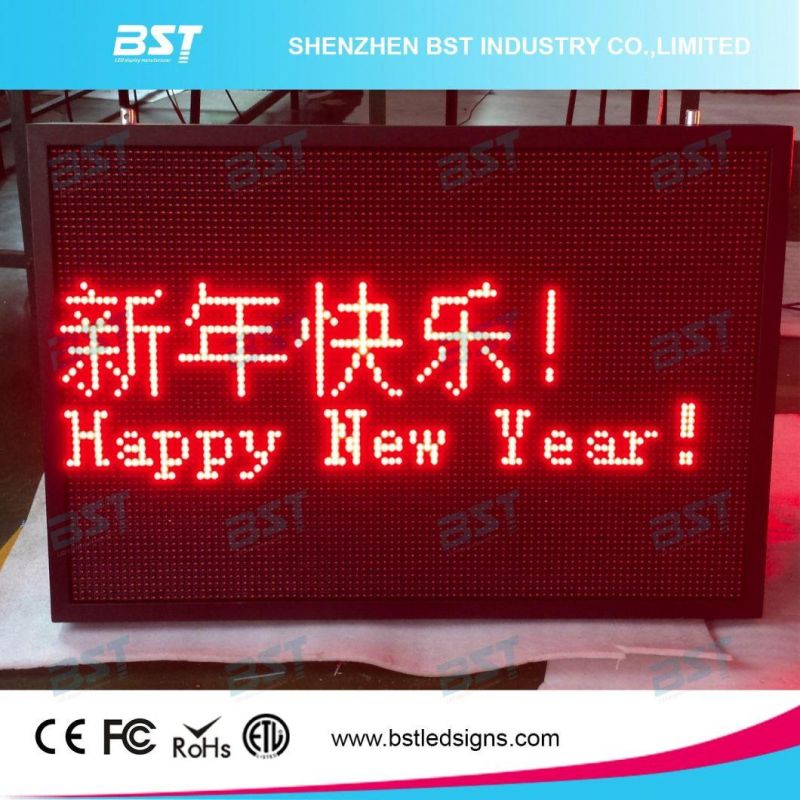

P10 Red Color Outdoor Scrolling LED Text Message Display (Programmable)


P10 LED Moving Message Display's Key Feature

1. Long viewing distance and wide viewing angle
2. Hight Brightness>4500 cd/sqm
3. Long lifespan> 50000hrs
4. Low power consumption and low maintenance cost
5. Full language support
6. Real time clock and calendar
7. Auto power on/off function
8 Multiple fonts and moving effects








This LED Moving sign have many communication methods for option: RS232, USB, RJ45, GSM, GPRS, etc.

Specification

Model	BST-M10
Pixel Pitch	10mm
Pixel Composition	R/RG/RGB
Pixel Density	10000 pixels/sqm
Module Size	320*160mm
Module Resolution	32*16
Driving Method	1/4 scan
Brightness	>4500cd/sqm
Viewing Angle	120degree
Best Visual Distance	10~50m
Input Voltage	AC 110~240V or DC 9V~36V
Power Consumption(Max.)	200w/sqm~800w/sqm
Working Temperature	-40~85
Working Humidity	10%~90%
Lifespan	100,000hrs
Communication Interface	RS232/RS485/RS422/RJ45/Wireless IR/USB/GSM/GPRS
Control Method	PC Software/ IR remote control/ USB disk/ SMS
