Basic Info.

Model NO. JC-INF-PH1.875MM System Operating Platform WIN98 Display Type LED Video Display Application Advertising IP Rating IP43 Warranty 1 Year LED Lamp Mls Refresh ≥2880Hz Brightness 1000nits IC Icn5020/2028 Lifetime 100000hours Transport Package Plywood Case/Flight Case Specification 240x240mm Trademark JC Origin China HS Code 8528591090 Production Capacity 5000PCS/Month

Product Description

HD Kinglight Lamp P1.875 Indoor LED Display Module Full Color screen

Led screen parameter

Technical DataModel	PH1.875
Pixel Pitch	1.875mm
Physical Density(pixels/m²)	284442
LED Shape & Size	SMD 3 in 1
LED Arrangement	1R1G1B
Module Size(mm)	240x240
Module Resolution	128x128
Drive Mode	Dynamic 1/32 Duty Constant Current
Brightness	≥1000cd/m²
Contrast(cd/m²)	≥2000:1
View Angle, 50% Brightness	140°/140°
Minimum View Distance	1.87m
Grey Scale	10bits/1024levels
Color Capacity	1.07billion
Maximum Power Consumption	900W/m²
Ave.Power Consumption	300W/m²
Operation Power Source	AC90-260V 50-60HZ
Frame Frequency	60-85HZ
Refresh Rate	≥2880HZ
Brightness Adjustment	0-100% 8 levels automatic
Gamma Correction	-5.0-5.0
Correction Scale Level	16bits;18bits
Color Temperature	5000-9300K
Brightness Correction	Pixels, Module, Cabinet Correction
Input Source Support	Composite, S-Video,Component,VGA,DVI,HDMI,SDI, HD_SDI
Control Distance	UTP CAT5E:100m;Multi-mode Fiber:50m;Single-mode Fiber:10km
Operating Temperature	-40°C - 65°C
Operating Humidity	10-90%RH
Operating Life Span	100,000Hours
MTBF	6500 Hours
Protection Ratings	IP45
Out of Control Rate	0.01%

P1.875 indoor led mdoule


Feature and Advantage:
1.Seamless seams

2. High brightness intelligent adjustable

3. High gray level for better color performance

4. High contrast, faster response, high refresh rate

5. Color reduction and Naturalization

6. Stereoscopic visual experience

Qualification Honor:

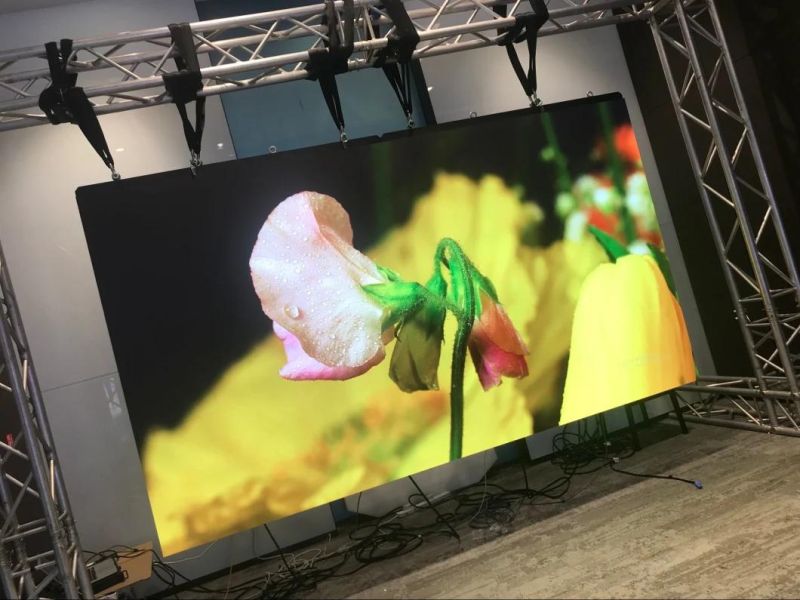

Product Project:


Packing and Shipping:



FAQ:
Q1. Can I have a sample order for led Screen?

A: Yes, we welcome sample order to test and check quality. Both for LED moduel or
a whole screen.

Q2. What about the lead time?

A:About 7~10 working days.

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1 square meter or a moudle checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We mostly accectp FOB train term, but we can help you order and arrange shipping agent.
It usually take 20 30 day on sea. a few days for customer clearance

Q5. How to proceed an order for led Screen?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the design document  and places deposit for formal order.
Fourthly We arrange the production.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Q7: How to deal with the faulty?

A: Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.

Our service:
1. Your inquiry about our products or the price will be replied within 24 hours!
2. We provide 2 years for warranty and lifelong maintaining, you will appreciate our warm after-sale service.
3. We will delivery goods as you demand, you can choose the cheaper and more convenient way!
4. Apart from the Outdoor LED Display, Visionled also can offer you LED Pharmacy Cross Display,
LED Flexible Display, Indoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs
