No.ParameterValueled typebrightnessWave LengthH/V Visual angle1Red LEDSMD1010120-140 MCD620-625nm140°/120°2Green LEDSMD1010360-435 MCD520-525nm140°/120°3Blue LEDSMD101080- 100 MCD470-475nm140°/120°4Pixel pitch1.667 mm1.875 mm2 mm2.976 mm5brightness≥800 cd/M²≥1000 cd/M²≥800 cd/M²≥1200 cd/M²6Module size200mm x 150mm240mm x 120mm256mm x 128mm250mm x 250mm7Drive model1/32 scan1/32 scan1/32 scan1/28 scan8Pixel Configuration1R1G1B1R1G1B1R1G1B1R1G1B9Module Resolution240dotsx180dots256dotsx256dots128 dots x 64 dots84 dots x 84 dots10Module pixel43200 pixel65536 pixel8192 pixel7056 pixel11PowerDC 5vDC 5vDC 5 vDC 5 v12Number of colors16bit13Discrete control point≤0.1‰14Control methodSynchronize with the video source15Working temperature-20°C~+50 °C16Working environment humidity10%~90%17Transfer boardhub75
No.ParameterValueled typebrightnessWave LengthH/V Visual angle1Red LEDSMD2121120-140 MCD620-625nm140°/120°2Green LEDSMD2121360-435 MCD520-525nm140°/120°3Blue LEDSMD212180- 100 MCD470-475nm140°/120°4Pixel pitch2.5 mm3mm4mm 5Brightness800-1000 cd/M²1200 cd/M²1200 cd/M² 6Module size160mm x 80mm192mm x 192mm256mm x128mm 7Drive model1/32 scan1/321/16 8Pixel Configuration1R1G1B1R1G1B1R1G1B 9Module Resolution64 dots x 32 dots64 dots x 64 dots64 dots x 32 dots 10Module pixel2048 pixel4096 pixel2048 pixel 11PowerDC 5 v12Number of colors16bit13Discrete control point≤0.1‰14Control methodSynchronize with the video source15Working temperature-20°C~+50 °C16Working environment humidity10%~90%17Transfer boardhub75
No.ParameterValueled typebrightnessWave LengthH/V Visual angle1Red LEDSMD3528120-140 MCD620-625nm140°/120°2Green LEDSMD3528360-435 MCD520-525nm140°/120°3Blue LEDSMD352880- 100 MCD470-475nm140°/120°4Pixel pitch5 mm6mm  5Brightness1300 cd/M²1300 cd/M²  6Module size320mm x 160mm192mmx192mm  7Drive model1/16 scan1/16 scan  8Pixel Configuration1R1G1B1R1G1B  9Module Resolution64 dots x32 dots32 dots x32 dots  10Module pixel2048 pixel1024 pixel  11PowerDC 5 v12Number of colors16bit13Discrete control point≤0.1‰14Control methodSynchronize with the video source15Working temperature-20°C~+50 °C16Working environment humidity10%~90%17Transfer boardhub75

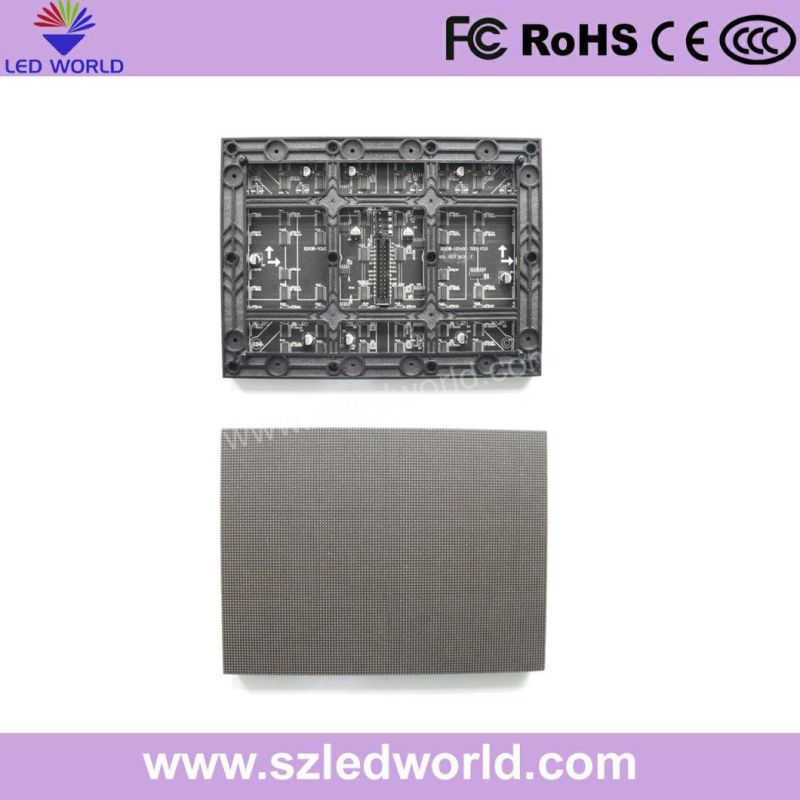

P1.667 product detail:





Why choose us:
1. Engineer guide install and operate online
2. Continues Quality
3. With more than 9 years experience in led display producing,equipments are updated regularly.What's
more,unique standardized and module production ensure our products continuous quality;
4. CE,RoHS,FCC, ISO9001;
5. Price Advantage: We have the best competitive price at the market, also have the same even better quality;
6. Excellent R&D team,lower the cost and assure you quality goods;

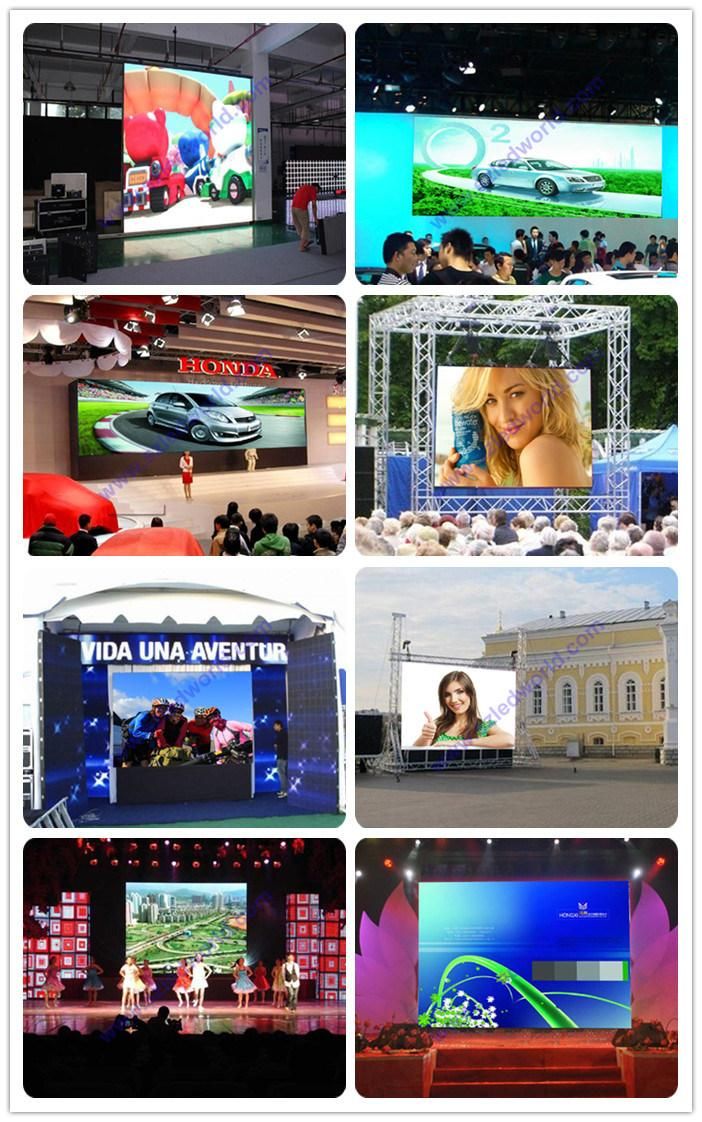

Project case:

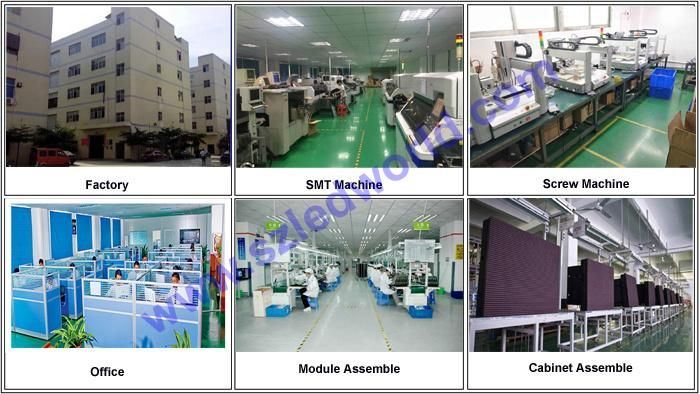

Our workshop:




Package:




Certification:




Some of our customers:




FQA:
Q1:How to help client choose suitable display ?
A1:(1)the needs of displaying content
(2)visible distance,, visual angle confirm
(3)requirements of cabinet resolution
(4)requirements of installation environment
(5)cost control;

Q2:Whats your payment term? How long it takes to delivery?
A2:We accept T/T and L/C, For both T/T and L/C, At least 30% deposit in advance, and the rest 70% before delivery.Our average Production time is 7-15 days, after receiving the deposit;

Q3:How can you ensure the led display product quality?
A3: Our led display screen quality is our core competence, for 7 years, what we rely on.We have each stardard process to make quality products;

Q4:What are your additional service?
A4:(1) We provide you the forwarding information, and some other information such as flight box, structure information for your reference for free.
