Basic Info.

Model NO. BST-P6-OF Pixel Density 27777 Pixels/Sq.M Scanning Mode 1/4 Scan Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC LED Type SMD2727 Refresh Rate >1500Hz Brightness >6500CD Cabinet Size 1152mmx960mm Module Size 192mmx192mm Warranty 2 Year OEM Yes Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 9000sqm/Month

Product Description

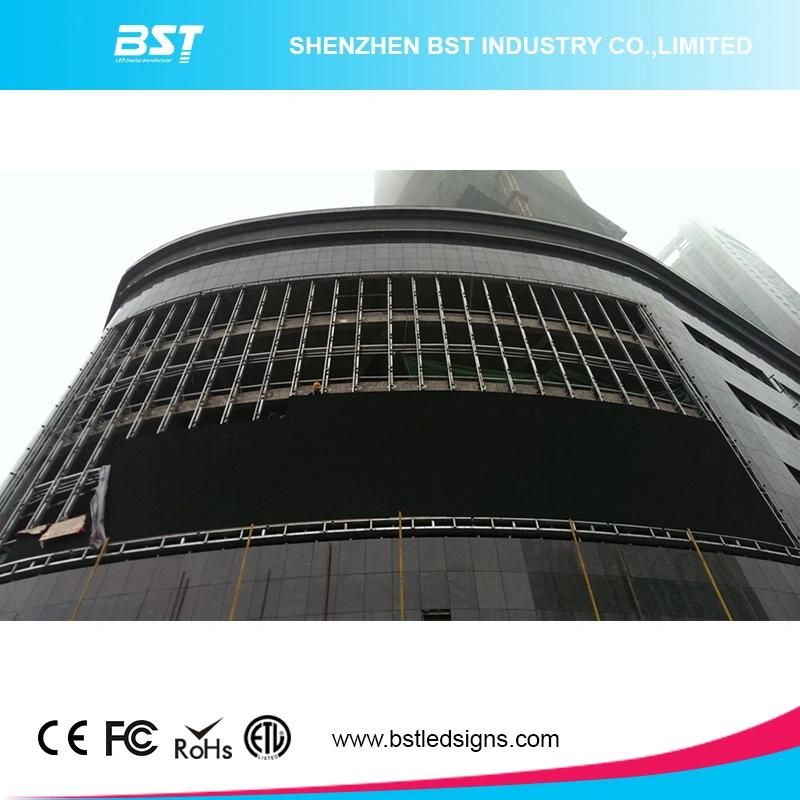

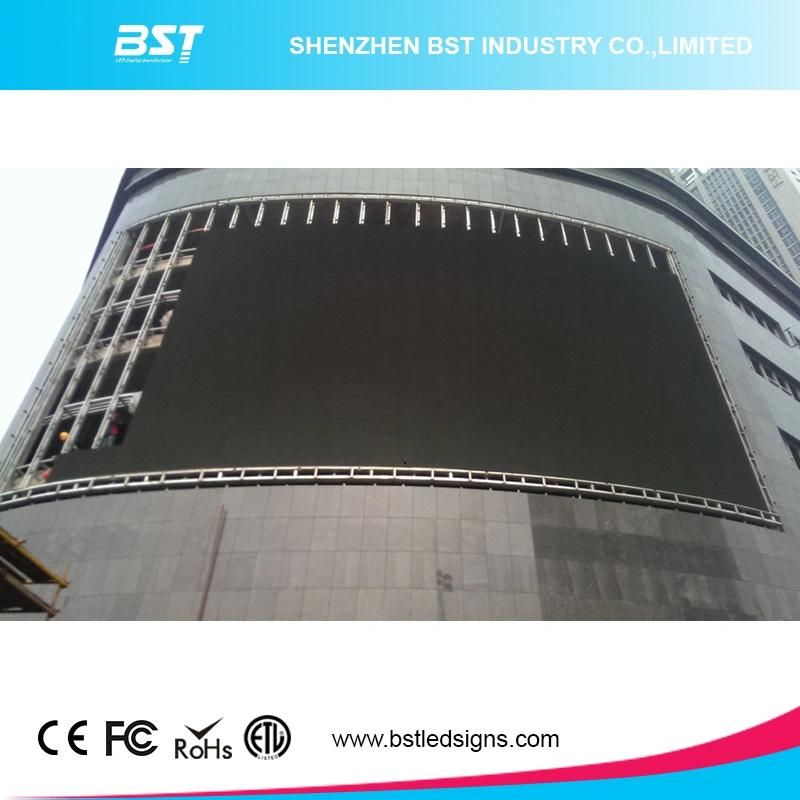

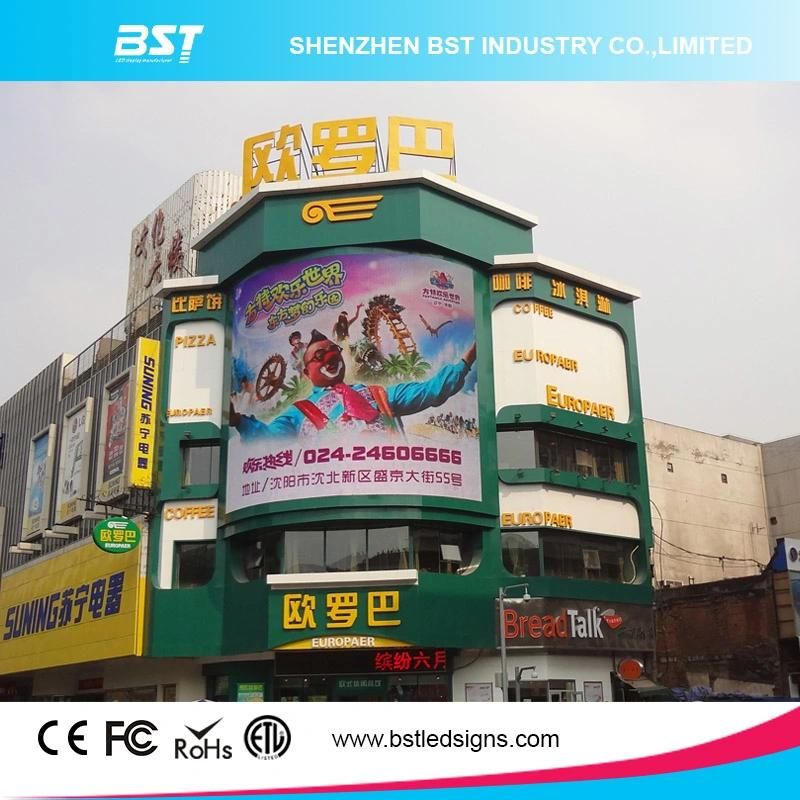

Evergy saving P6 SMD Outdoor Full Color curved LED video wall for commercial adertising

Key Benefits

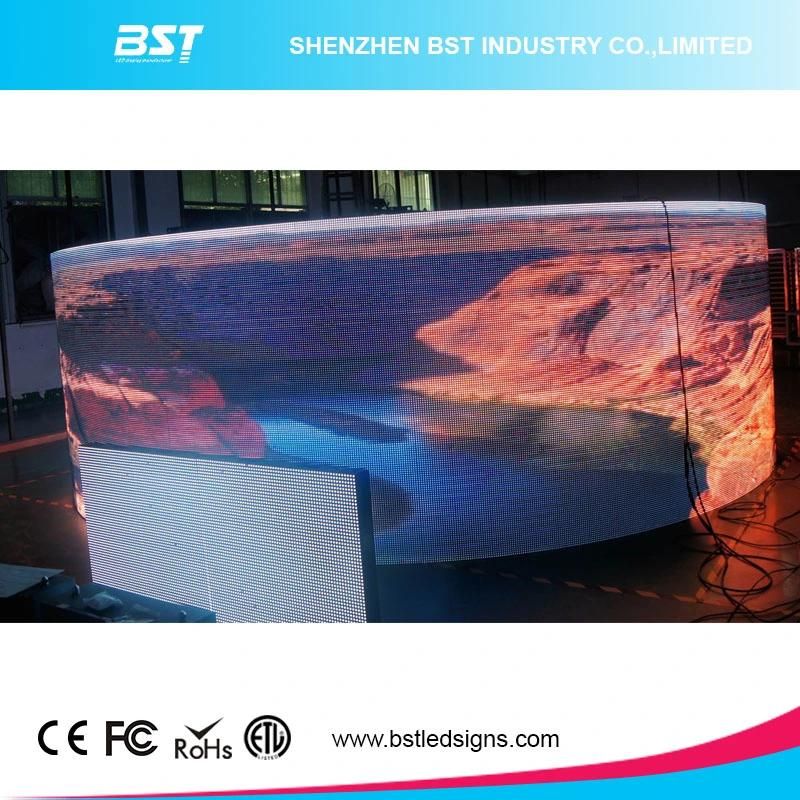

1. Inner or outer curve 0-45 degreen, seamless connection

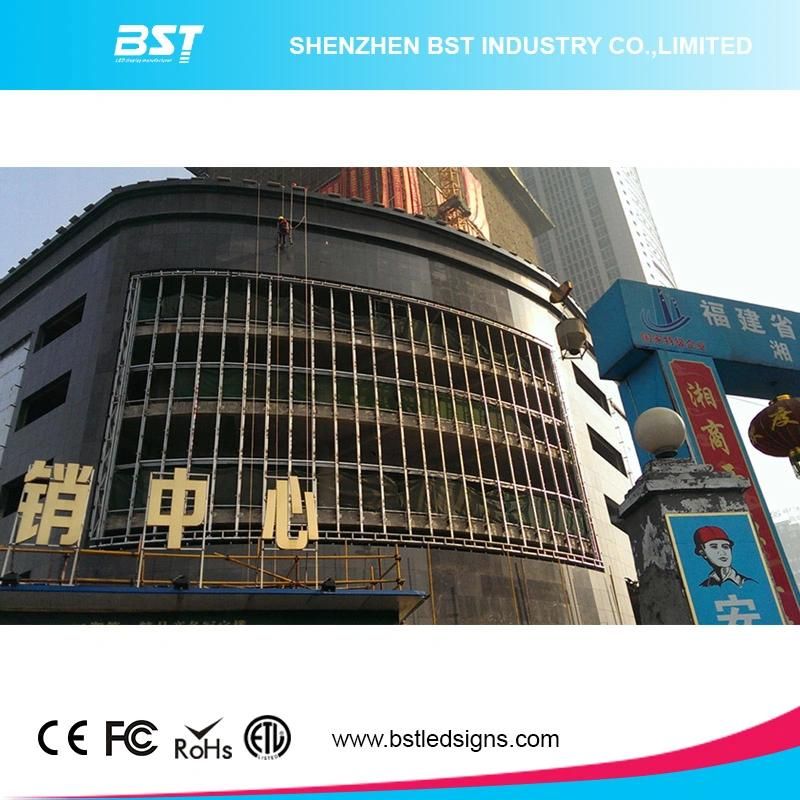

2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH6
Pixel  Pitch	6mm
Unit  Size	1152mm x 960mm
LED  Type	1R1G1B
Pixel / Unit	192x160
Unit  Weight	65kg(steel) or 45kg(Aluminum)
Viewing  Angle	H140°   V140°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	620W/panel  Max
	250W/Panel  Ave.
Driving	1/4
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5,500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003
