Basic Info.

Model NO. BST-P10-OF Pixel Density 10000 dot / m² Scanning Mode 1/4 Scan Display Type LED Video Display Certification CE, RoHS, CCC LED Type SMD3535 Module Size 160mmx160mm Cabinet Size 1280mmx960mm Warranty 2 Year OEM Yes Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

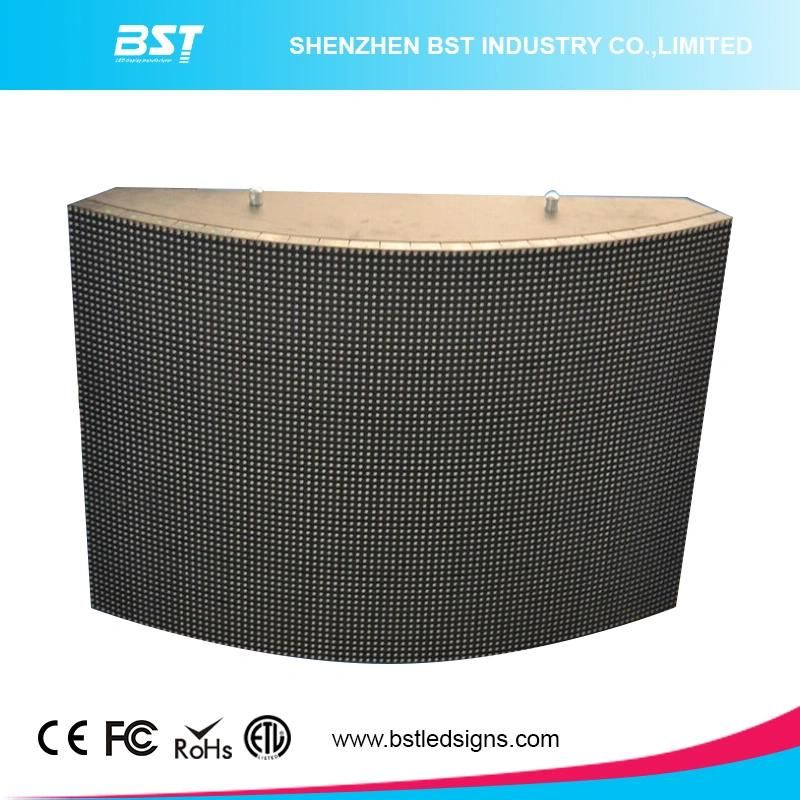

P10 SMD3535 Outdoor curved Full Color Advertising LED Panel

Products Feature

1. Good LEDs:use SMD3535 LEDs,it has excellent performance in antistatic ability and UV protection;Waterproof grade IP65,all weather available.
2. Energy saving:low electric current,high-brigh lamps,equipped with PFC swithing power supply,save 30% electricity.
3. High refresh rate,high gray level:it can reach 16bit by using PWM driving IC,refresh rate is more than 1000HZ,the gray level is still high even under the condition of low brightness.
4. Color correction:support dot-to-dot correction,guarantee the consistence of LED color and brightness,No chromatic aberration for new screens.
5. Dual back-up:both power supply and system dual back-up are optional,reliable performance.
6. Error detection and monitoring:it can monitor the inner temoerature,voltage,cooling fans etc and error detection automatically.
7. Can adjust the brightness auotomatically
8.Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive
9.Clear image quality even in direct,full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen's investment.
10.Easy Installation & Using:easy & simple installation interface and user friendly software to ensure the user friendly interface of the LED screen sytem
11.Convenient Servicing:Front and rear cabinet access and rear led flexible make the maintance work very convenient and low cost to help you concentrate more time and energy on your main maketing promotion business.

Application:

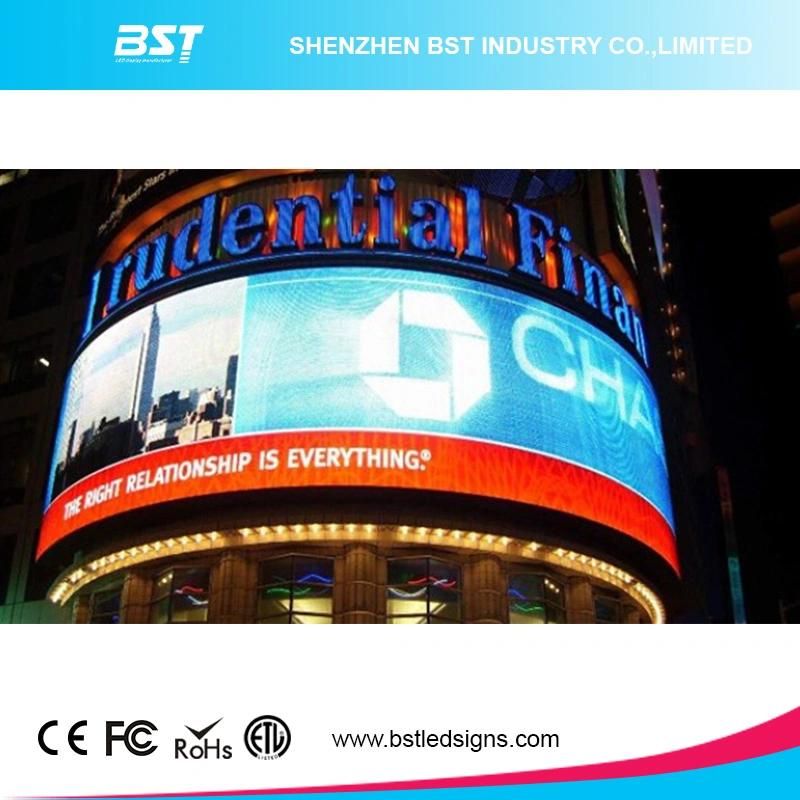

Outdoor commercial advertising, building, stadium, hotel, airport etc. Use for video on display.





Key Benefits

1. Broad viewing angle;
2. Frame-free installation;
3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH10
Pixel  Pitch	10mm
Unit  Size	1280mm x 960mm
LED  Type	SMD3535
Pixel / Unit	128x96
Unit  Weight	65kg(steel) or 45kg(Aluminum)
Viewing  Angle	H140°   V140°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	620W/panel  Max
	250W/Panel  Ave.
Driving	1/4
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5,500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003
