LED Display Series

BST-ORD-3

BST-ORD-4

    BST-OR-6

Pixel Pitch(mm)

3.91

4.81

          6.25

Pixel Density(dots/m²)

65536

43264

        25600

Avr Power Consumption (W/M²)

              ≤500

              ≤500

         ≤500

Brightness Max(cd/m²)

≥6500

≥6500

         ≥6500

Color Temperature(after calibration)K

6500

6500

          6500

Cabinet Material

Die Casting Aluminum

Die Casting Aluminum

  Die Casting Aluminum

Weight(kg/Panel⁾

10

10

              10

      Working Humidity

          10%-95%

         10%-95%

        10%-95%

      Driving Method

             1/8

             1/13

          1/10

LED Type

SMD2727

SMD2727

          SMD3535

Horizontal/Vertical Viewing Angle(º)

H140º/V140º

H140º/V140º

        H140º/V140º

Recommended Viewing Distance(m)

1--100

1-100

            1--100

Power Supply

Single power

Single power

        Single power

Refresh Rate(Hz)

≥1920

≥1920

            ≥1920

         Weight(kg/m²)

             40

            40

          40

Grey Scale(bit)

R'G'B 16bit

R'G'B 16bit

           R'G'B 16bit

Frame Rate(Hz)

50/60

50/60

           50/60

Life Time(H)

≥100000

≥100000

            ≥100000

Protection

Outdoor

Outdoor

            Outdoor

Cabinet Size(W*H)(mm)

           500x500

           500X500

           500X500

        LED Chip

           Epistar

          Epistar

           Epistar

      Contrast

            2000:1

           2000:1

          2000:1

Protection

IP65

IP65

IP65

Max Power Consumption(W/M²)

900

900

             900

Working Temperature

-20C°/40C°

-20C°/40C°

            -20C°/40C°

Module Size(W*H)(mm)

250X250

250X250

            250X250

        Driving Chip

        MBI5124

       MBI5124

       MBI5124

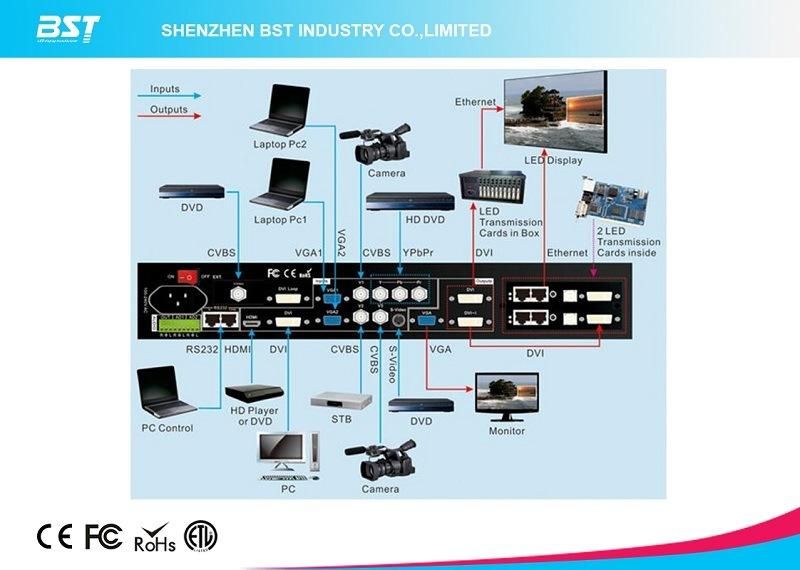

Control Input

DVI/HDMI/HDSDI

DVI/HDMI/HDSDI

     DVI/HDMI/HDSDI

Max Hanging(Vertical)

≥200kg

≥200kg

            ≥200kg
