Basic Info.

Model NO. Outdoor LED Display P5-8S (smd) Pixel Density 40000dots/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC Product Name Outdoor LED Display P5-8s Driver IC Mbi5124 Bightness CD/Sqm More 7000CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500-9500k Transport Package The Factory Packaging Specification 160*160mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

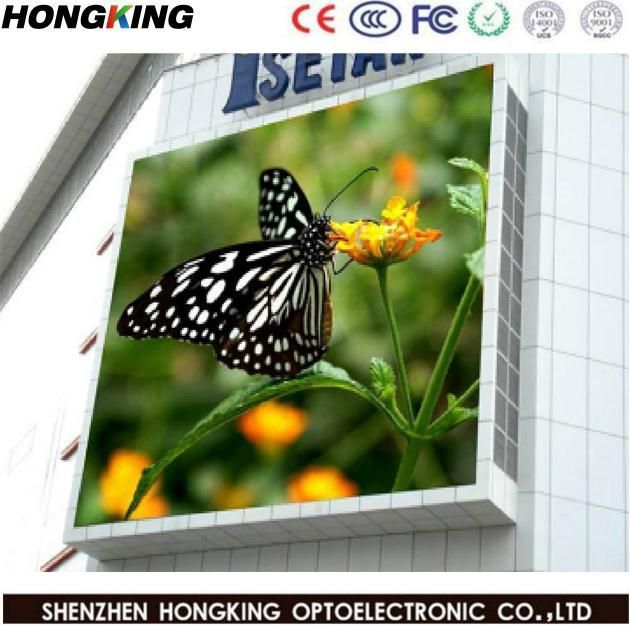

P5 Full Color Outdoor LED Display Board

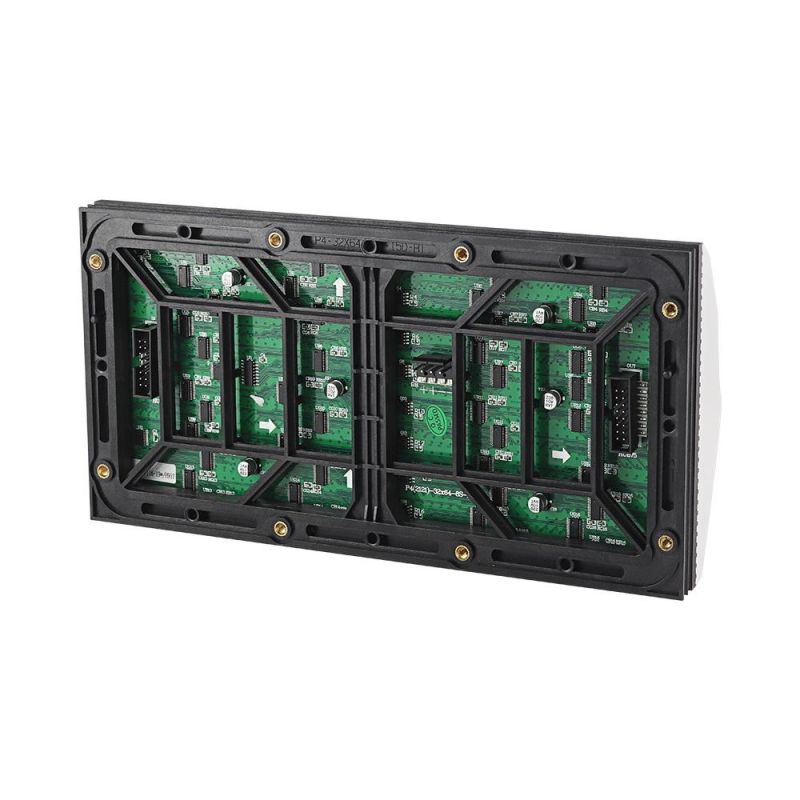

Display Panel :










Product descripition:


Product Model	Outdoor Fixed F10-2S	Outdoor Fixed F8-4S	Outdoor Fixed F6-8S	Outdoor Fixed F5-8S	Outdoor Fixed F4-8S
Pixel Pitch	10 mm	8 mm	6 mm	5 mm	4 mm
Module Size	320x160 mm	256x128 mm	192x192 mm	160x160 mm	256x128 mm
Module Resolution	32x16 pixels	32x16 pixels	32x32 pixels	32x32 pixels	64x32 pixels
LED	SMD3535	SMD3535	SMD3535 or SMD2727	SMD2727	SMD2525
Standard Cabinet Size	960x960 mm	1024x1024 mm	768x768 mm	960x960 mm	1024x1024 mm
Standard Cabinet Resolution	96x96 pixels	128x128 pixels	128x128 pixels	192x192 pixels	256x256 pixels
Standard Cabinet	Iron	Iron	Iron	Iron	Iron
Physical Density	10000 Pixels/m2	15625 Pixels/m2	27777 Pixels/m2	40000 Pixels/m2	62500 Pixels/m2
White Balance Luminance	≥6500 nits	≥7000 nits	≥6500 nits	≥6000 nits	≥6000 nits
Gray Scale per Color	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)	65536 grades gray(16 bit)
Contrast	5000:01:00	5000:01:00	5000:01:00	5000:01:00	5000:01:00
Refresh Frequency	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz	≥3840 Hz
Visual Angle(Horizontal/Vertical)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Max Power	600 W/m2	650 W/m2	900 W/m2	1000 W/m2	1000 W/m2
Average Power	200 W/m2	250 W/m2	300 W/m2	350 W/m2	350 W/m2
Input Voltage(AC)	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V	110 V -240 V
Working Environment Temperature	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC	-20ºC~50ºC
Operating Humidity	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH	10%RH~95%RH
Control System	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP	AV,Video,VGA,DVI,HDMI,SDI,DP

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
