Item

Full Color P2.5 Indoor LED Display Screen for Car Advertising

Model Number

Pixel Pitch

2.5mm 3mm

Pixel Density

111111-160000 pixels/M2

Pixel Configuration

1R1G1B

LED Type

Epistar, SMD

Module Size

160x160mm

Module Resolution

64*64 pixels (P2.5)

Min.Viewing Distance

2.5-3meters

Brightness

100nits

Viewing Angle(degree)

≤140°

Average Power Consumption

400 W/M2

Scan Mode

Constant current

Protection Level

IP31

Cabinet Size

640x480mm (option)

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50HZ/60HZ

Refresh Rate

1920-3840hz

Color

65535 Levels

Horizontal/Vertical viewing angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C  , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization

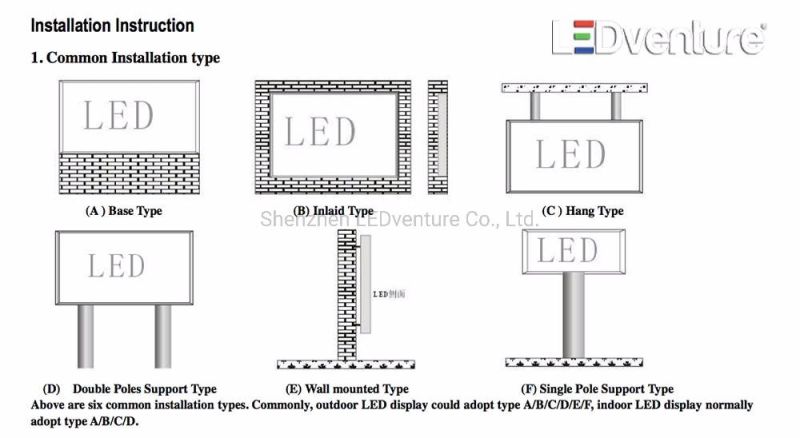

Part 5: Installation methods, indoor led video wall available fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

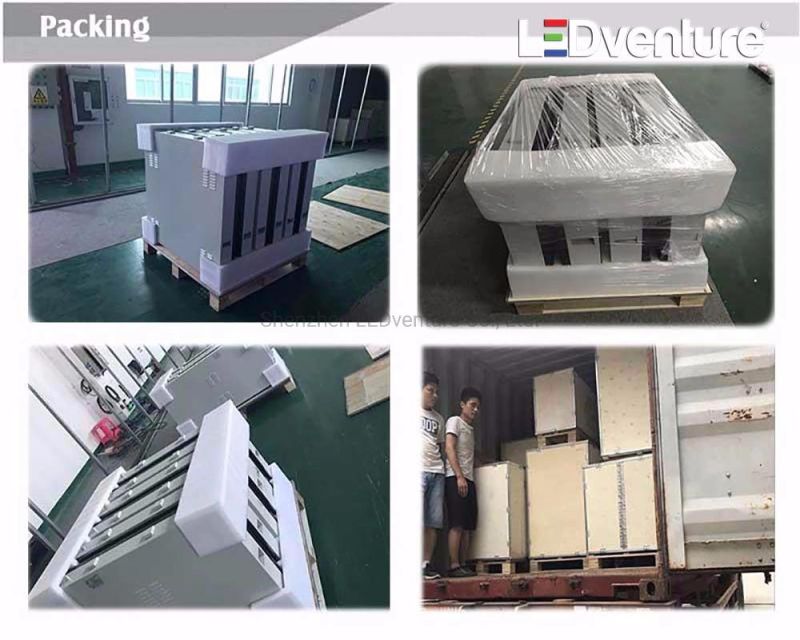

Part 6: Packing information by plywood cases, packing well and easy to load.



Part 7: Certificates.

ALL of our Product passed CE, EMC FCC, UL and other security tests, to ensure to meet most market laws and standard requires, and make sure the quality is top level and stable for many years use.

Part 8: About LEDventure.

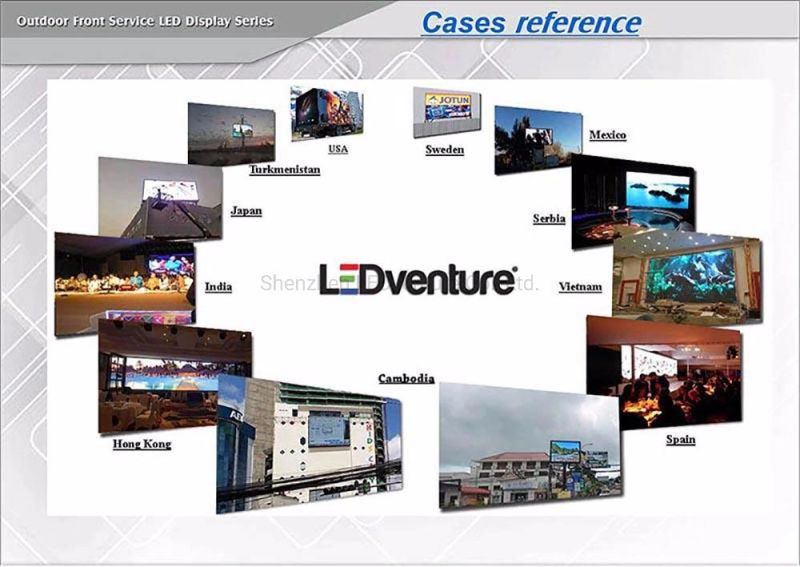

Part 9 : LED display screen installation cases.

Most of our led display exported to Europe with high standards, and small percent to USA and Asia.
