ItemIndo  LED display  Commercial  seriesPixel Pitch(mm)3mm4mm5mm6mmPixel density(pix/m2)11111625004000027777LED Type2020202035283528Viewing AngleH:140°,V:140°
 Color Depth(nits)1500Drive Method1/16Color Depth16384Refresh Rate(Hz)1600Module Size(mm)192X192x13256X128x13320X160x13192X192x13Cabinet Size(mm)576X576X80512X512X80640X640X80576 x576 x80Cabinet MaterialAluminum AlloyCabinet weight(kg)9  8.512.59Voltage110/220VAverage.power(W/m2)160130120120Max.power(W/m2)800380350350

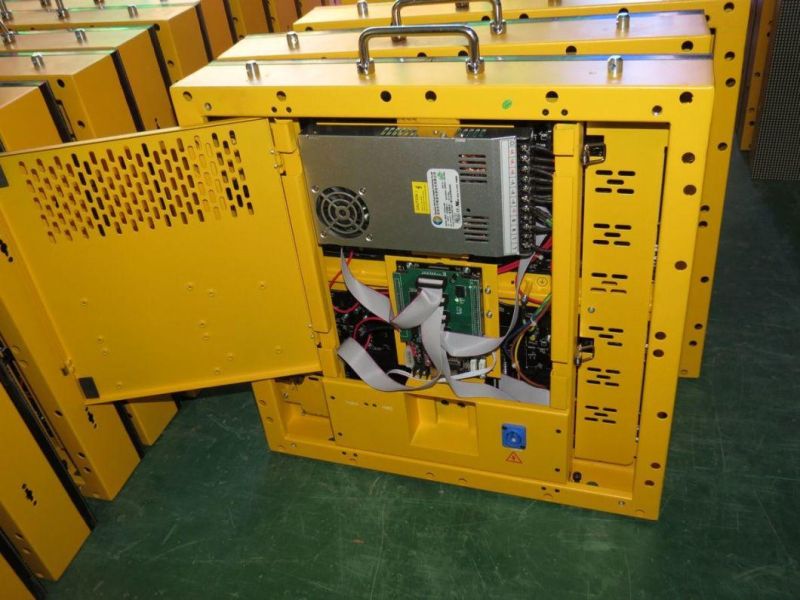

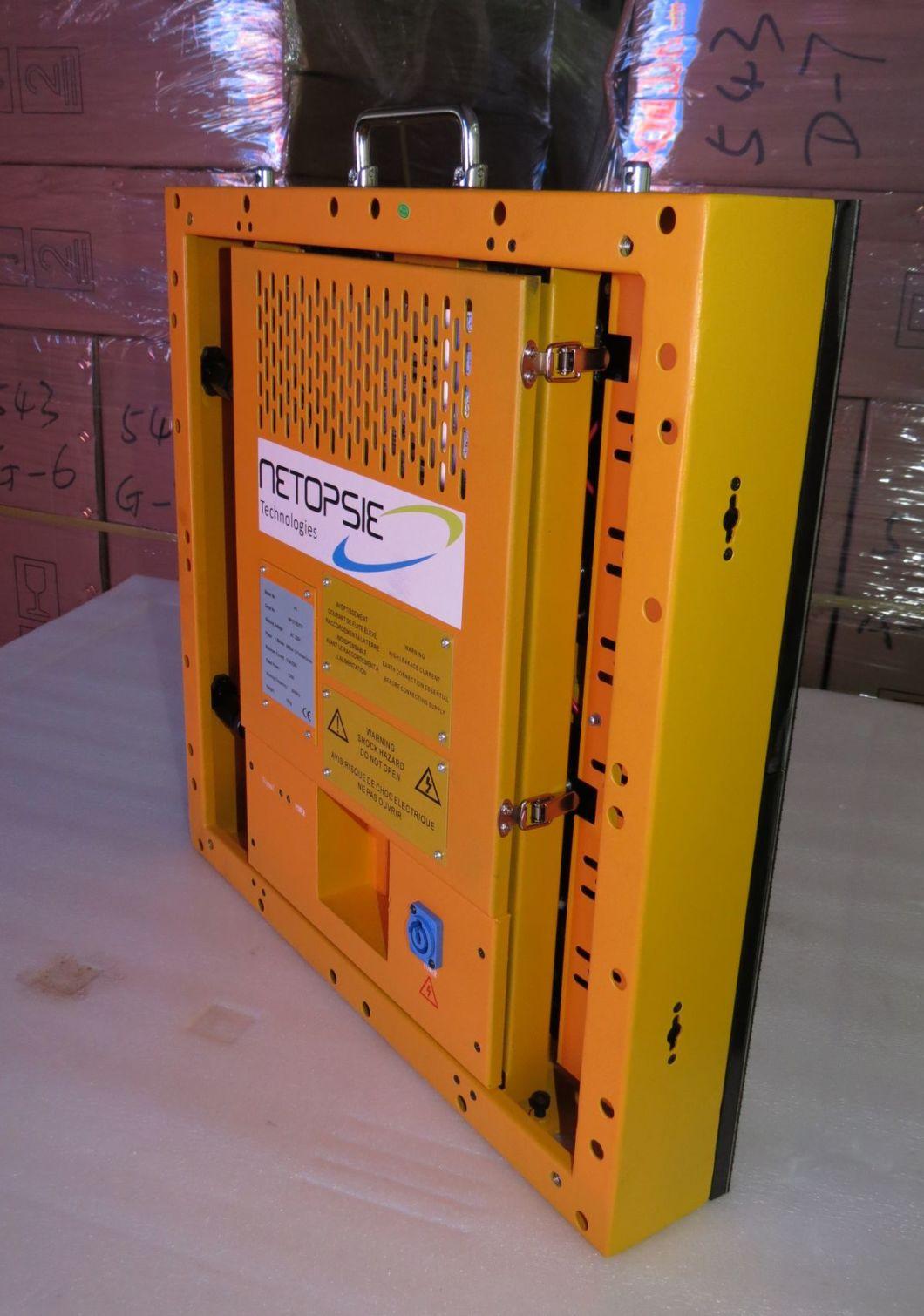

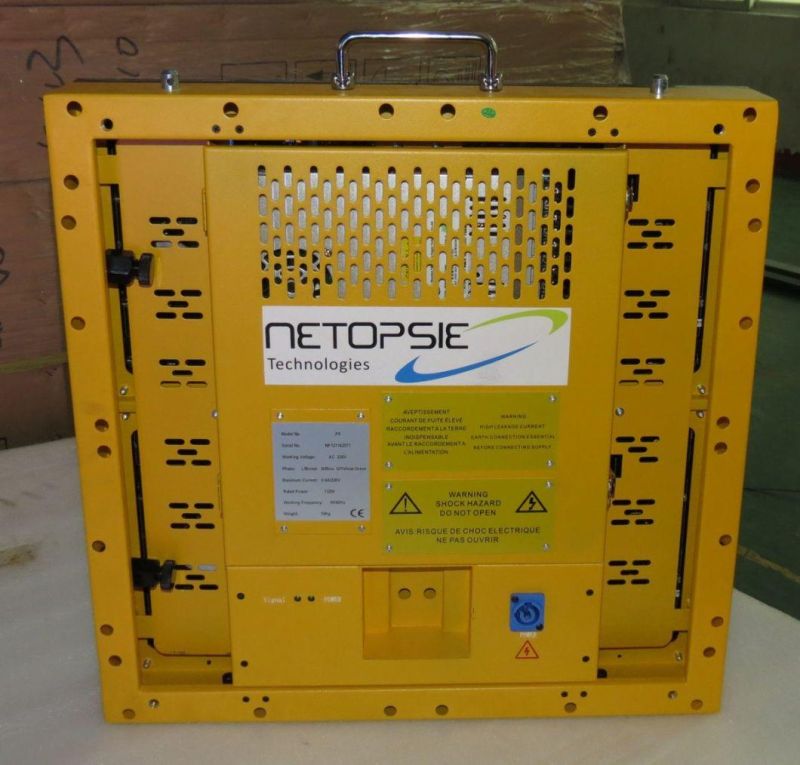

The more detail view for the cabinet



p3/p4/p5 indoor  led display led display feature :

1  Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;
2  Stable circuit control technology, simple operation, easy maintenance;
3  Unique die-cast aluminum box structure, stable, durable, lightweight;
4  very "light, thin, dense" feature, in order to provide a greater realization of creative space;
5  accurate, fast and flexible installation location, can effectively respond to different application areas;
6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;
7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures;


Application

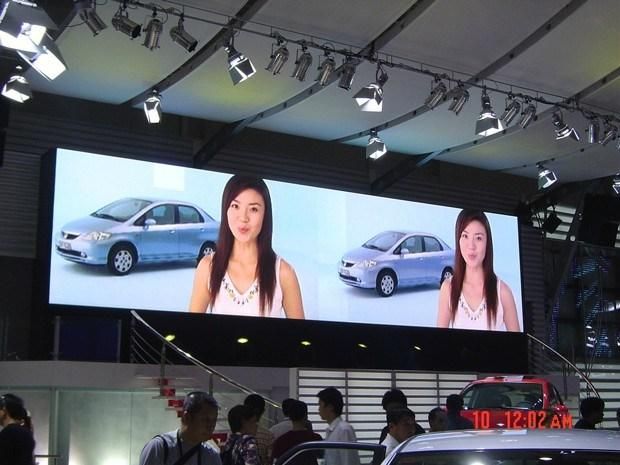

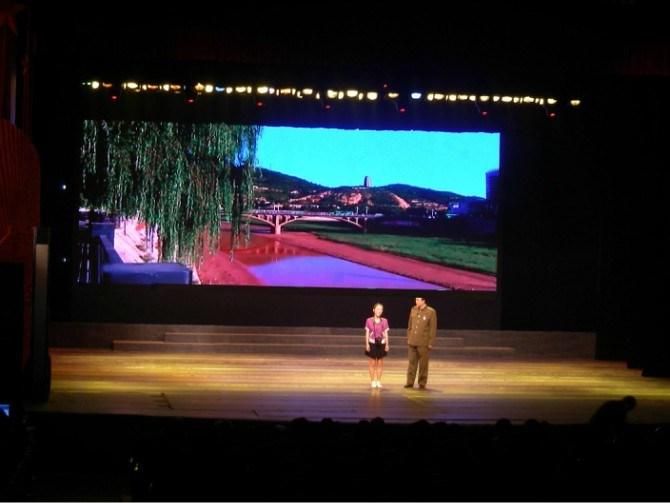

Indoor stage, TV studio, concert, theme park and exhibition where need quick installation and HD video.
