Flight Case Video Display Fws Hologram Fan Rental LED Screen
Shenzhen FWS Technology Co., Ltd.Base Info
Description

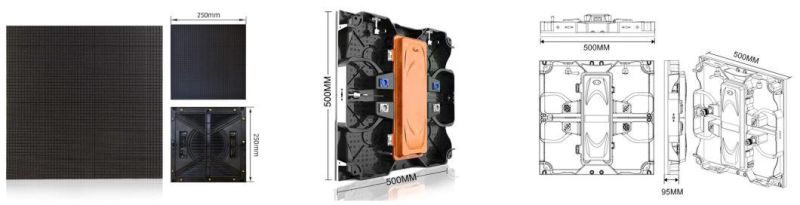

LED LampType SMD2121 black body Brand Epistar Arrangement 1R1G1B Chip parameters Red (620-625nm) IV:(250-300mcd ) Chip parameters Green (520-525nm) IV:(450-550mcd) Chip parameters Blue (470-475nm) IV:(100-120mcd) LED Module Pixel Pitch 4.81mm Module Size 250×250mm Module Resolution 52×52=2704(Dots) Module Weight 0.2kg LED Cabinet Pixel Density 43222 Dots/sqm Frame Frequency no less than 60 frame/sec Cabinet Resolution 104×104=10816(Dots) Input Voltage AC110-220V±10%, 50/60Hz Cabinet Dimension(W*H*D) 500×500×95mm Output Voltage DC-5V, 40A/60A/80A Module Quanty /Cabinet 2×2=4(Pcs) Color Grayscale 16bit Gray Scale per Color 65536 level Cabinets Material Aluminum-magnesium alloy Cabinet Color Processing R(1024)×G(1024)×B(1024) Cabinet Weight 6.25kg Brightness Adjustment 256 color levels, can be adjusted manually and automatically optional Brightness >1800cd/sqm MTBF( mean time between failures) 5000 hours Viewing Angle 140(Horizontal), 140(Vertical) Life-span 100, 000 hours Nearest Viewing Distance 8m Protection Level(front/back) IP43/IP54 Power Consumption (Max) 1000 w/sqm Malfunction Dot Rate less than 0.0001 Power Consumption (Average) 350 w/sqm Working Temperature -15oC-50oC Display Function Text, Graphics, Video Humidity 15%-85% Refresh Rate >1800Hz Drive Mode/Driver Position Constant driving 1/13 Scan, Combined diver board Control System Control Mode Synchronization/Asynchronization Input Signal AVI/MPG/MPEG/TXT.etc Control System Sending Card, Receiving Card, Receiving HUB PC Operating System Microsoft Windows 10 ,Windows 7 and XP Software LED Studio Communication Type Net cable; 3G, WIFI(Sold separately) Language Chinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, German Certificate CE, ROHS, FCC, ISO9001, TUV Control Card Input DVI, USB; RJ45, HDMI(Sold separately) LED Module & Cabinet

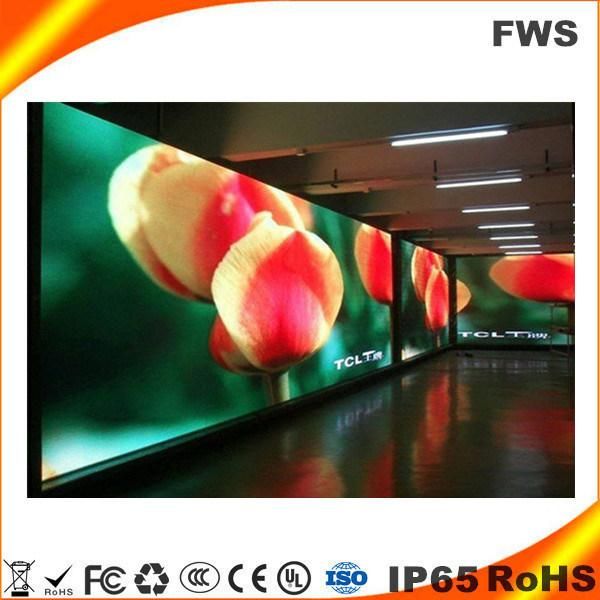

Case

Our Clients

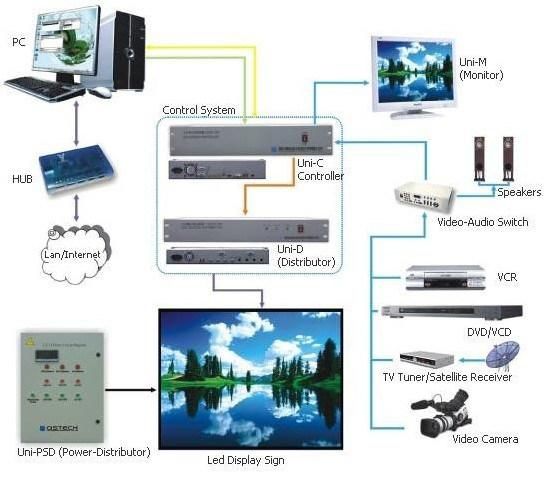

Control system

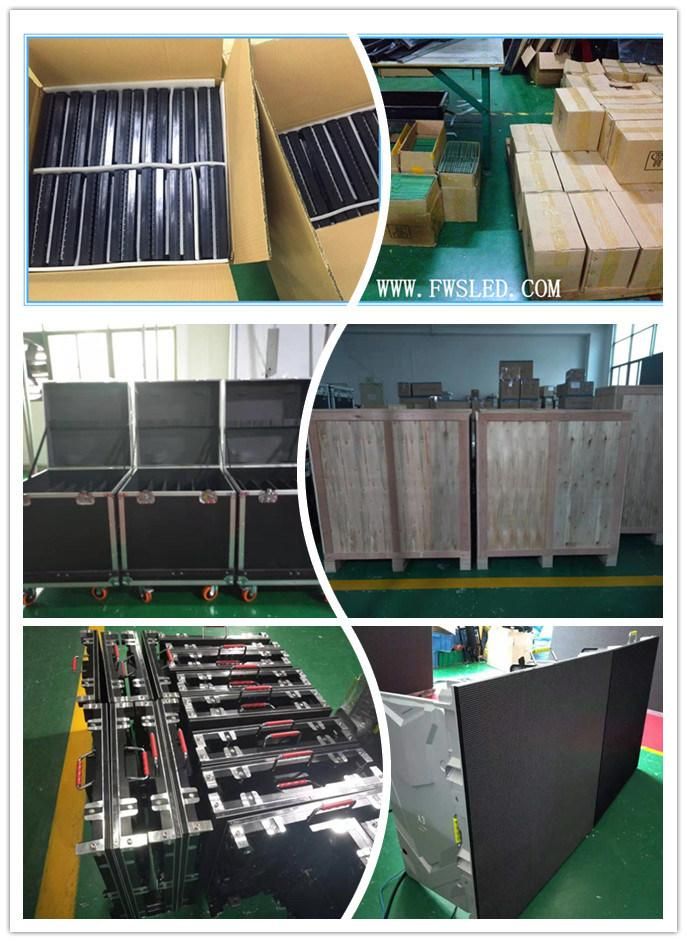

Packing

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information
Certificate

Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day; Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem

Case

Our Clients

Control system

Packing

Our Service
1) Your inquiry related to our products or price will be replied in 24hours
2) Well-trained and experienced staffs to answer all your enquires in fluent English
3) OEM&ODM, any your customized screen we can help you to design and put imto product.
4)Distributoer ship are offered for your unique design and some our current models.
5)Protection of your sales area, ideas of design and all your private information
Certificate

Trade Terms;
1) Payment:T/T, usually 30% prepayment before production, 70% balance to be paid before delivering, it also change according to total quantity
2) Production lead time less 20sqm:7-15days, more than 50 sqm:30days
3)Sample can be delivered in 30days
4) Shipping port: Shenzhen, Mainland China
5) Discounts are offered based on order quantities
6) MOQ:1sqm/1pcs
1. Free training:
You can send your engineers who have knowledge of electronics and information to our factory and we provide free technical training, which contains training operation and maintenance of the LED display at our factory. We also offer the instruction manual, software, test report, drawing steel structure and so on.
2. Installation:
We offer you the engineer to install the LED display, you have to offer him the two-way air tickets and accommodation as well as visa. The engineer's salary is $80/day; Or we offer you the training on the LED display installation and repairing for free after you live in our company, or we can guide you to install the screen by remote control.
3. Service after sales:
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem
