Basic Info.

Model NO. P8, P10, P12, P16 Pixel Density 3906 Pixels/Sq.M Scanning Mode Static Scan Display Type LED Video Display Application Advertising Certification CE, RoHS Delivery Time 20 Days Warranty 2 Years LED Type DIP346 Cabinet Size 1024mmx1024mm Brightness >6500nits Lifetime >100000hours Transport Package Flight Case, Plywood Case, Carton. Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 5000sqm/Month

Product Description

P16 DIP 1R1G1B Full Color Outdoor Advertising front service  LED Board Sceen


Key Benefits

1. Broad viewing angle;
2. Frame-free installation;

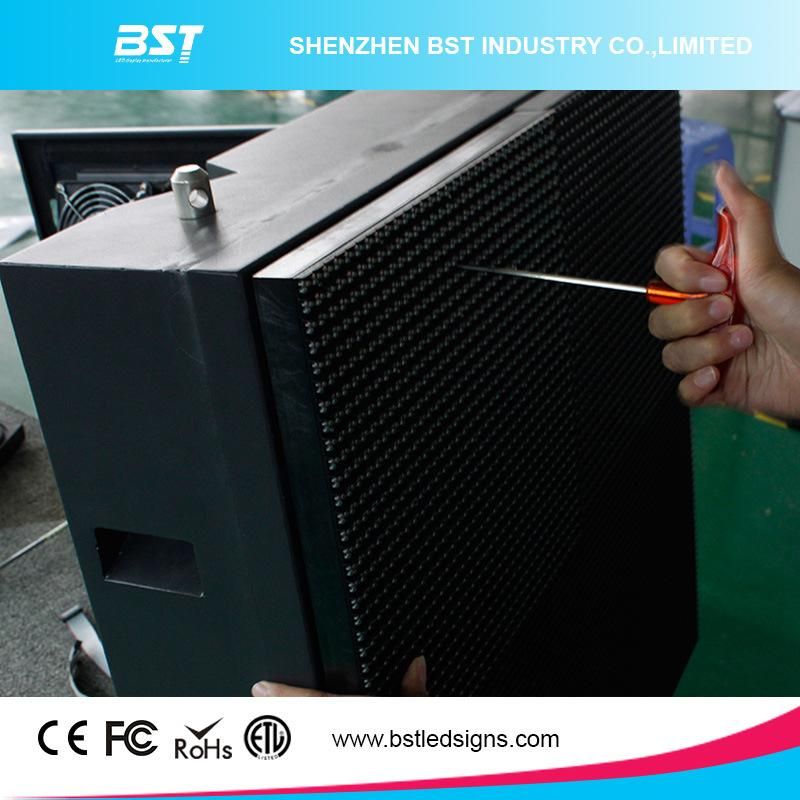

3. Front and rear side maintenance.
4. High brightness, visible even with direct sunshine;
5. High waterproof and dustproof, IP65 both front and rear side
6. Having good lightening accordance and no mosaic;
7. Having large viewing angle: Getting vivid effect within any position of the viewing range;
8. Any LED in died pixel can be respectively repaired, which reduce the cost of the display maintenance.

LED DISPLAY, LED STADIUM SCREEN, LED OUTDOOR SCREEN, OUTDOOR BILLBOARD

Model	PH16
Pixel  Pitch	16mm
Unit  Size	1024mm x 1024mm
LED  Type	1R1G1B
Pixel / Unit	64x64
Unit  Weight	68kg(steel) or 48kg(Aluminum)
Viewing  Angle	H120°   V70°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	840W/panel  Max
	420W/Panel  Ave.
Driving	Static
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003
