LED LampTypeSMD3535BrandEpistarArrangement1R1G1BChip parametersRed (620-625nm) IV:(800-960mcd)Chip parametersGreen (520-525nm) IV:(1350-1650mcd)Chip parametersBlue (470-475nm) IV:(330-400mcd)LED ModulePixel Pitch6.67mmModule Size320×320mmModule Resolution48×24=1152(Dots)Module Weight0.5kgLED CabinetPixel Density22477 Dots/sqmFrame Frequencyno less than 60 frame/secCabinet Resolution96×96=9216(Dots)Input VoltageAC110-220V±10%, 50/60HzCabinet Dimension(W*H*D)960x960x175mmOutput VoltageDC-5V, 40A/60A/80AModule Quanty /Cabinet2×4=8(Pcs)Color Grayscale16bitGray Scale per Color65536 levelCabinets MaterialFull waterproof cabinetColor ProcessingR(1024)×G(1024)×B(1024)Cabinet Weight12kgBrightness Adjustment256 color levels, can be adjusted manually and automatically optionalBrightness>6500cd/sqmMTBF( mean time between failures)5000 hoursViewing Angle120(Horizontal), 120(Vertical)Life-span100, 000 hoursNearest Viewing Distance10mProtection Level(front/back)IP66/IP54Power Consumption (Max)1200 w/sqmPower Consumption (Average)300 w/sqmMalfunction Dot Rateless than 0.0001Working Temperature-30^oC-50^oCDisplay FunctionText, Graphics, VideoHumidity15%-85%Refresh Rate>1000HzDrive Mode/Driver PositionConstant driving 1/6 Scan, Combined diver boardControl SystemControl ModeSynchronization/AsynchronizationInput SignalAVI/MPG/MPEG/TXT.etcControl SystemSending Card, Receiving Card, Receiving HUBPC Operating SystemMicrosoft Windows 10 , Windows 7 and XPSoftwareLED Studio ( FWS-linsn )Communication TypeNet cable; 3G, WIFI(Sold separately)LanguageChinese, Traditional Chinese, English, French, Japanese, Russian, Thai, Spanish, Polish, Italian, Portuguese, Turkish, Dutch, Greek, Bulgarian, Romanian, Arabic, Korean, GermanCertificateCE, ROHS, FCC, ISO9001, TUVControl Card InputDVI, USB; RJ45, HDMI(Sold separately)Features:
1  Full waterproof cabinet never deformation and features with beautiful appearance and lightweight.
2  Ultra-slim cabinet decline the volume of flight case and transportation cost.
3  Seamless splice make more cabinet in one without any gap.
4  Fast lock and spring plunger design for fast install and dismantle. Especially suitable for stage show, concert, promotion, exhibition and sport game live use.
5  Die-casting aluminum magnesium alloy feature with low power consumption, automatic heat dissipation.
6  Power has been inset in the cabinet and signal work lamp help you fast detect fault and fast fix it.
7  IP66 waterproof rate make it suitable for any outdoor environment.
8  Lifetime free maintenance and offer online technical service.

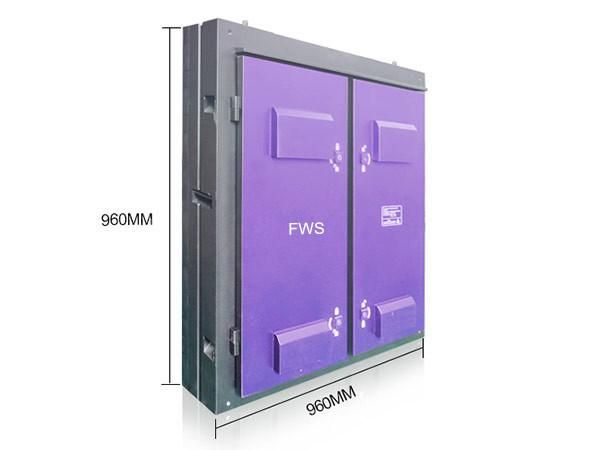

P6.67 cabient
