Part 3: Material Quality Level.

All of our Product materials we choose all top quality levels, including the SMD, IC components, also the PCB, screws, PSU brands etc, so that during the led screen using, it helps to cut down after sale serive costs, to make sure led display screen stable and less aftersale services.

Part 4: Technical Specification.

Item

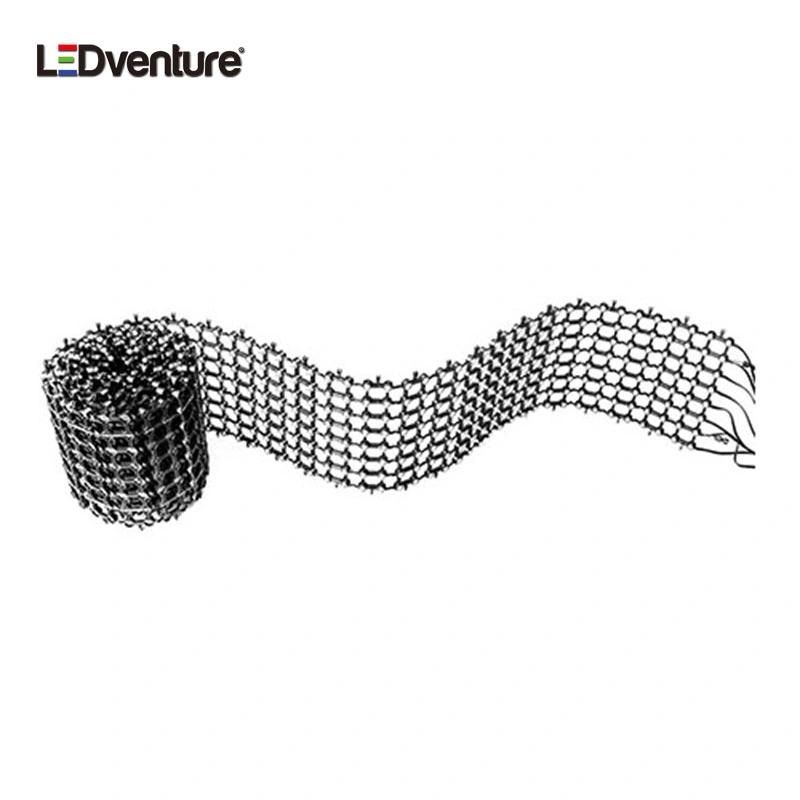

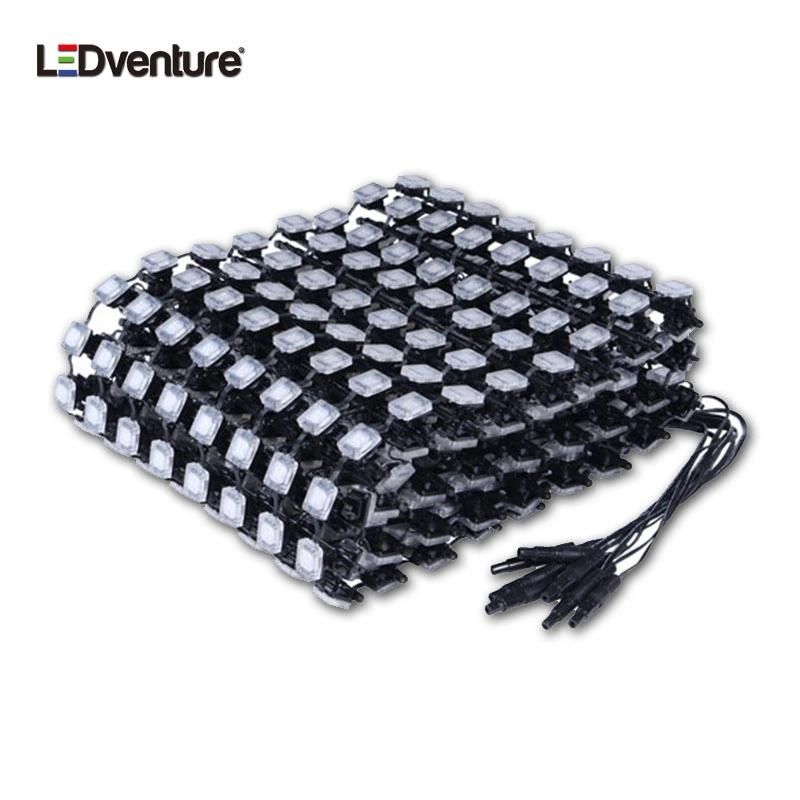

Outdoor flexible led display screen

Model Number

P37.5 to P150

Pixel Pitch

37.5mm-150mm

Pixel Density(pixels/M2)

45 -711 pixels

Pixel Configuration

SMD 3 IN 1

LED Type

NS, SMD

Module Size(m)

0.8x12.8m (P100)

Module Resolution(pixels)

8*128 (P100)

Min.Viewing Distance(m)

37-150

Brightness(nits)

>6000

Viewing Angle(degree)

≤140°

Average Power Consumption(W/M2)

400

Scan Mode

Constant current

Protection Level

IP65

Cabinet Size(m)

0.3x4.8m / 0.45x7.2m / 0.6x9.6mm / 0.8x12.8m / 1.2x19.2m

Color Temperature

The brightness of R.G.B. is adjustable according to software 100level; Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC110-240V, 50Hz/60Hz

Refresh Rate

> 1920hz

Color

65535 Levels

Horizontal/Vertical Viewing Angle

<140°

Gray Scale

16 bits

Effective Communication Distance(without relay)

Lifespan

≥100,000 hours

Environment Temperature

Storage: -40°C~+85°C , Operation: -20 °C~+45°C

Blind Spot Rate

<0.0001(led display industry standard is less than 0.0003)

Control Mode

Video frequency synchronization
