Basic Info.

Model NO. MT-P8 Pixel Density 15625 Pixels/Sqm Scanning Mode 1/5 Display Type LED Video Display Application Advertising Certification CE, RoHS, CCC Transport Package Woodcase etc Specification CE, ROHS, ISO9001 Trademark BST Origin Shenzhen, China HS Code 8528591090 Production Capacity 3000sqm/Month

Product Description

Double Side P8 SMD3535 outdoor Full Color Mobile LED Advertising Truck

Key Feature

1. System Function

Supporting Stabilizer------------------------ Hydraulic
Screen lifted raise (from the ground)-------- 8m
Screen Folded-------------------------------- Automatic
Lift Rotation-------------------------------- 360°
Wind Load------------------------------------ 72KM/H (47Mi/h)
Screen: Extending Time----------------------- Within 10 Minutes
Operating Person No. ----------------------- One Technician
Remote Operation---------------------------- Ok
Main System Controlling--------------------- Adopt CCU to control

2. Distribution System
Automatic Image-changing----------------- 3phase+N Image-exchanging
Automatic Switching---------------------- Outer Power supply
Collected-wire Roller-------------------- 3 sets 24VAutomatic

3. LED Screen System

Model	BST-OF-8
Pixel  Pitch	8mm
Unit  Size	1024mm x 768mm
LED  Type	1R1G1B
Pixel / Unit	128x96
Unit  Weight	52kg(steel) or 36kg(Aluminum)
Viewing  Angle	H140°   V70°
Application	Storage-40~60° C,     Working-20~50° C
Protection  Level	IP65
Power  Consumption	620W/panel  Max
	250W/Panel  Ave.
Driving	1/4
Frame  Refresh	≥60Hz
Data  Refresh  Rate	1200~4000Hz
Processing	16bit
Max    Brightness	5,500-6500nits
Power  Supply	AC90-240V,   50~60Hz
MTBF	≥1000  Hours
Life  Span	≥50000  Hours
Pixel  Failure	< 0.0003

Outdoor full color led digital signage display Main features:
1). Wide application field : Outdoor Commercial advertising LED display screen, LED display board for shopping mall,Stadium perimeter LED display ,bank&stock exchange LED display screen for rates showing,train & bus station LED display screen .
2). High brightness:7000cd/m2 Automatic or manual adjustment of the brightness of the display.
3).Top LED chip: Supplied by Silan of china & other high strictly selected LED chip to ensure the long lifetime and high brightness of our LED display system.
4). Clear vivid image quality: Throughout the show, the picture clear, bright color.
5).Installation is simple,easy to use: Easy and simple installation interface and user friendly software to ensure that customers use easily.

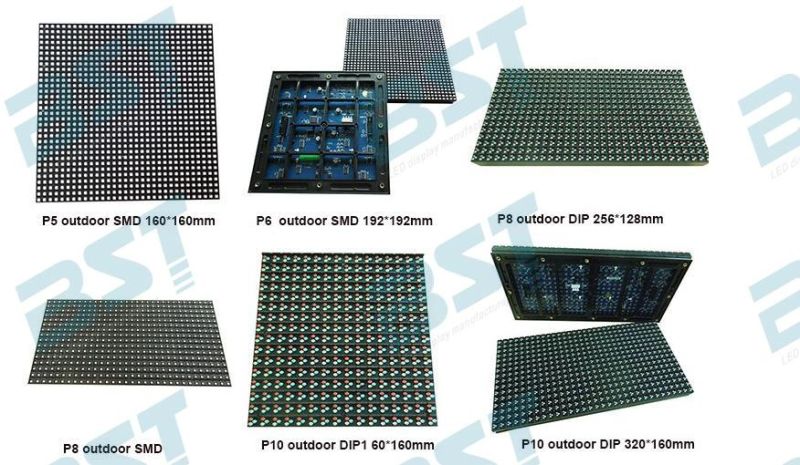

6).The list of available Models of our outdoor full color led display board : Outdoor led display screen:P5,P6,P8,P10,P12,P16,P20,P25.
7).Good heat dissipation;
8).Energy-saving to reduce cost;Environment friendly;
9).Cabinets Seamless splice;
10).Comprehensive Application
It can be used in different situations for mulit purposes such as lease market, advertisement, stadium,
shopmall etc.



Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

Our Services

1. We can provide customers a comprehensive solution delivery of series-related products
2. We can provide customers high quality products which allow they to scream
3. We can provide custom-made service.
4. We can provide customers two year free warranty, and support renewals extended
5. We can provide customers the free installation guidance and technical support
6. We willing to provide any countries and regions in the world with products and technical support. at present, our product has covered more than 100 countries and regions.
