Basic Info.

Model NO. Outdoor LED Display P6-8S (smd) Pixel Density 27778dots/M2 Scanning Mode 1/4 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, CCC, ISO9001 Product Name Outdoor LED Display P6-8s Driver IC Mbi5124 Bightness CD/Sqm 6500CD/M2 Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Operating Temperature -30~-60t Humidity 10%-95% Color Temperature 6500-9500k Transport Package The Factory Packaging Specification 192*192mm Trademark hongking Origin China HS Code 8528591090 Production Capacity 5000 Sqm/Year

Product Description

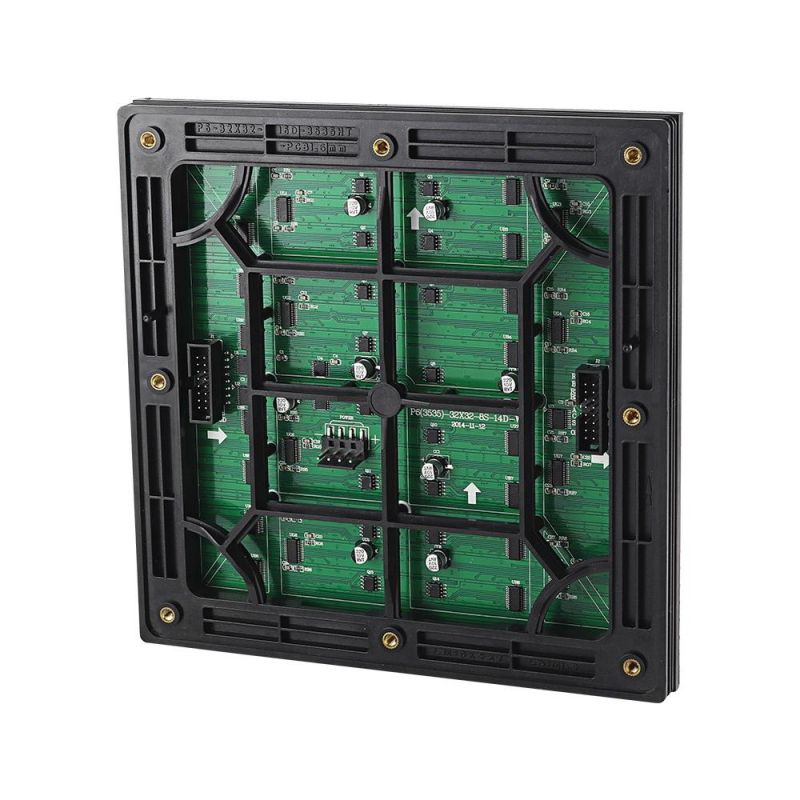

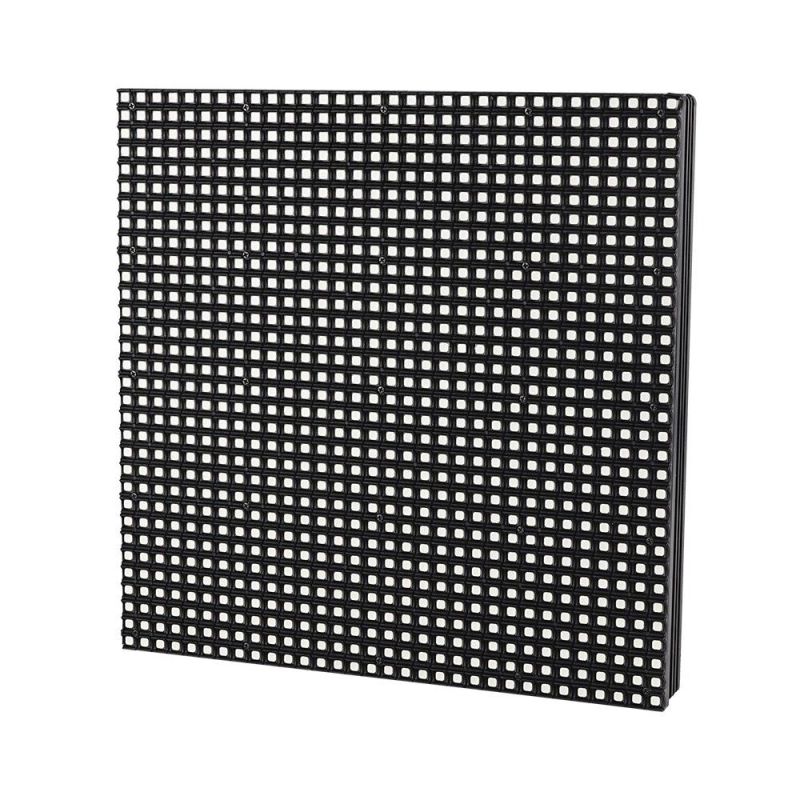

Outdoor NationStar  P6 LED Display Module screen Signage for Advertising

• Contact person : Phebe
• Mobile phone: 00 86 177 2460 2807




Product descripition:

NO.:	Product name	Technical parameter
1	Pixel Pitch(mm)	6mm
2	Pixel configuration	1R1G1B/SMD3535
3	Pixel density	10000dots/sqm
4	Brightness	≥6000 cd/sqm
5	Module size(W*H)	192mm×192mm
6	Module Resolution (W*H)	32 dots x 32dots
7	Module weight	530g
8	Cabinet size (W*H)	960mm×960mm
9	Cabinet weight (kg)	9.2kg
10	Finished cabinet weight (kg)	18.5kg/ 45kg
11	Led Lamp	Nationstar Copper /  gloden wire
12	Chips	Epsitar
13	Led pcb	1.6mm pcb
14	Drive IC	MBI5124
15	Drive mode	1/8 scan
16	Viewing Angle(V/H)	140ºC
17	Grey Scale	65536 degree
18	Life time	>100,000 Hours (50%)
19	MTBF	>50,000 Hours
20	Operating Voltage	AC110V/220V±10%
21	Screen Power Consumption	Max: 1000w/sqm ; Average:330w/sqm
22	Input Power Frequency	50/60Hz
23	Operating temperature	-30--60ºC
24	Humidity	10%-95%
25	Refresh Rate	≥1920HZ
26	Control Method	Synchronized with computer monitor
27	Color Temperature	6500K-9500K
28	LED control system	LINSN,Nova-star,Colorlight is selectable
29	Control Distance	100 m (no repeating); Optical fiber transmission: 500m- 15km
30	Accepting signal with video processor	PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI
31	Systems Operating Platform	Windows Xp / Windows 7 / windows 8 /8.1 / windows 10




Professional production:
Full Color LED Display,Indoor LED Display,Outdoor LED Display,Rental LED Display,Outdoor SMD LED Display,Outdoor DIP LED Display,Full Color LED Display Module,Single Color LED Display Module,Transparent LED Display,Advertising LED Screen

Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.

FAQ :
1. Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.
2. Q: What's the delivery time?
A: Usually below 100pcs is 3 days quick delivery.
3. Q: How long is the warranty period ?
A:  Non-artificial damage,  one years warranty
4. Q: Do you have the products in stock?
A: Yes ,of course
5. Q: Freight Cost?
A: The shipping cost depends on different weight;
We will choose the cheapest and safest way according your detail quantities.
6. Q: How does your factory do regarding the quality control?
A: Quality is priority. Every product will be fully assembled and carefully tested before packing and shipping.
