Basic Info.

Model NO. P2.5 IP Rating IP54 Certification CE, RoHS, CCC, ETL Module Size 320X 160 Cabinet Size 640*1920 Cabinet Material Alumium Warranty Two Years Transport Package Wooden Case or Flight Case Specification CE ROHS CCC Trademark Noveled Origin Shenzhen China HS Code 85312000 Production Capacity 2000 PCS/Week

Product Description

P2.5  indoor Full Color Poster Video LED Display  detail specification

Item	Indoor P2.5 -640*1920mm Poster LED Display
Pixel Pitch	2.5mm
LED Type	SMD2121
Module Size	320*160mm
Frame Size	640*1920mm
Brightness	>1200cd/m2
Pixel density	160,000dot/m2
Viewing angle	120° H and 60° v
Cabinet weight	20~40kg
Cabinet Material	Polymer nanocomposite die-casting aluminum
Average Power Consumption	200 W/m2
Max Consumption	512 W/m2
Driving Mode	1/32scan
Refresh Rate	>1920HZ
Color Depth	16Bit
voltage	200-240V
Operating temperature	-20-60 degree
Storage temperature	-40-70 degree
Operation humidity	10-90%
Storage humidity	10-90%
Life span (hrs)	> 55000
Control system	Linsn/Nova
Compliant standard	CE, CCC, FCC, RoHS

Feature
1 .Indoor Office Format, Quick Assemble
2. Design for indoor, brightess adjustable, seamless connection.
3 .Initiated scale as office format, can work as full size, can be made customized.
4. Easy maintenance, low cost on maintenance, quick assemble, hotplug in power.

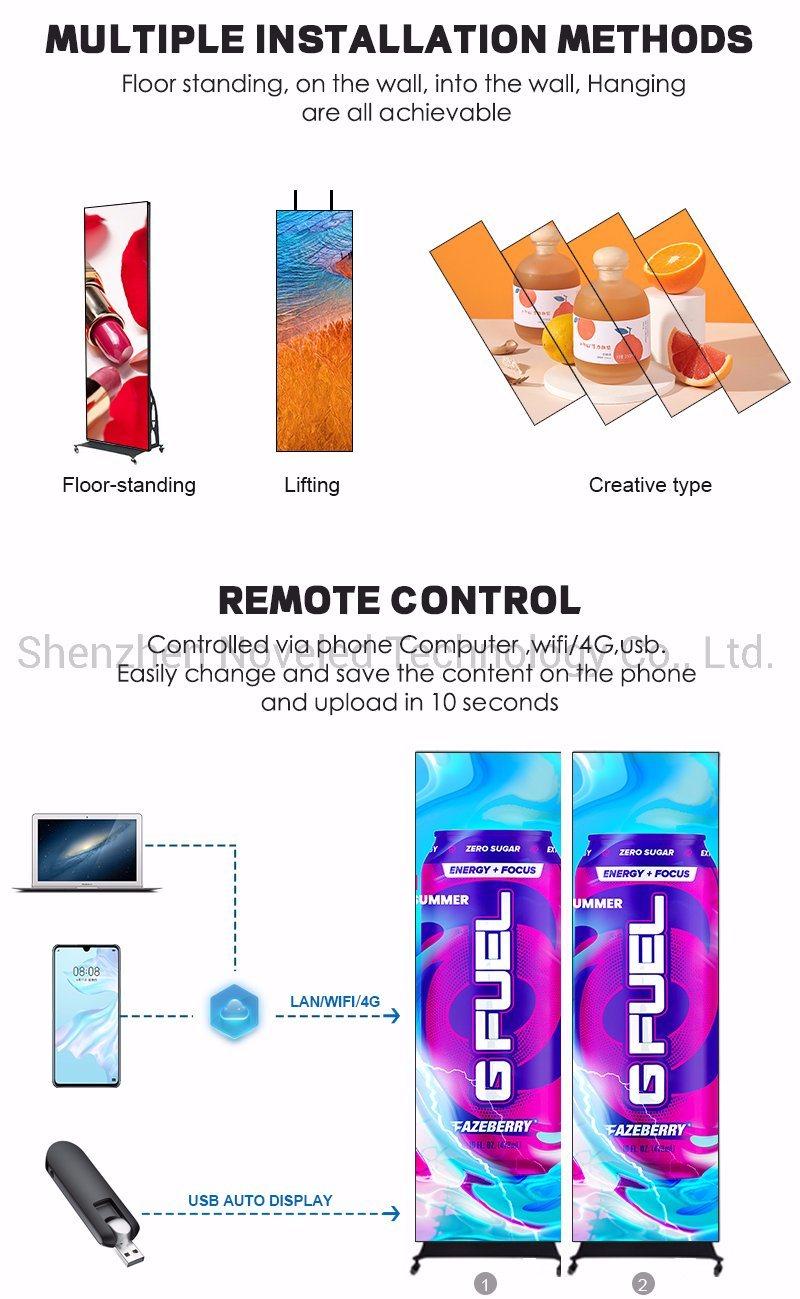

5 WIFI . 3G. LAN control

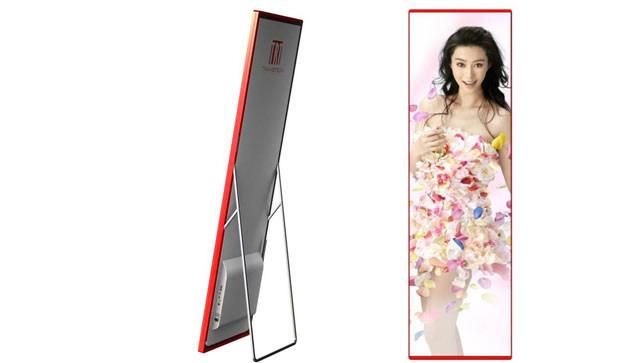

The   Super light screen is easy to installtion in the different place

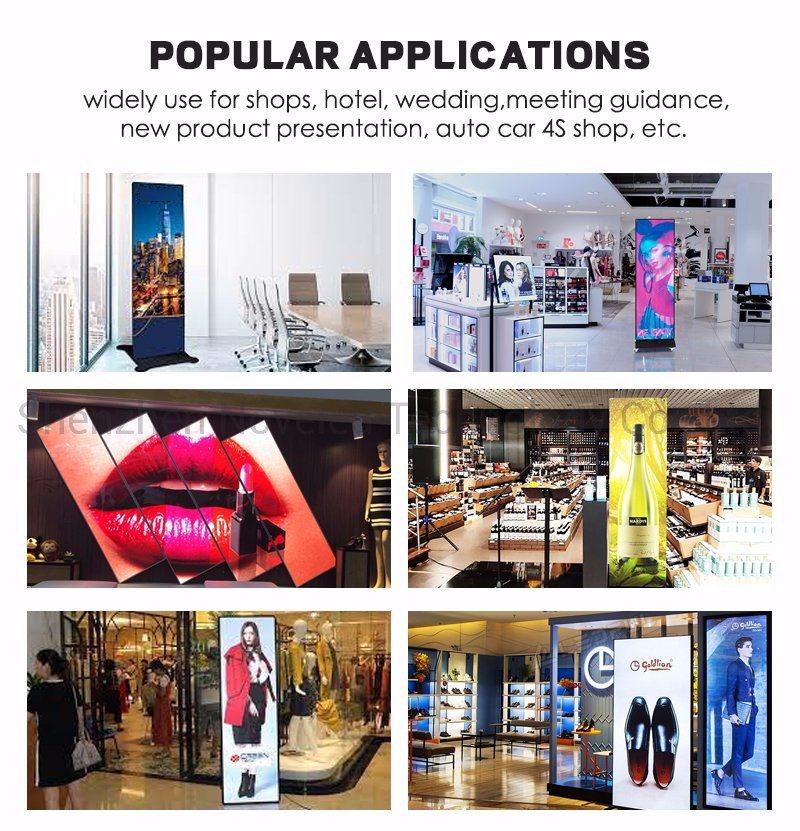

Application

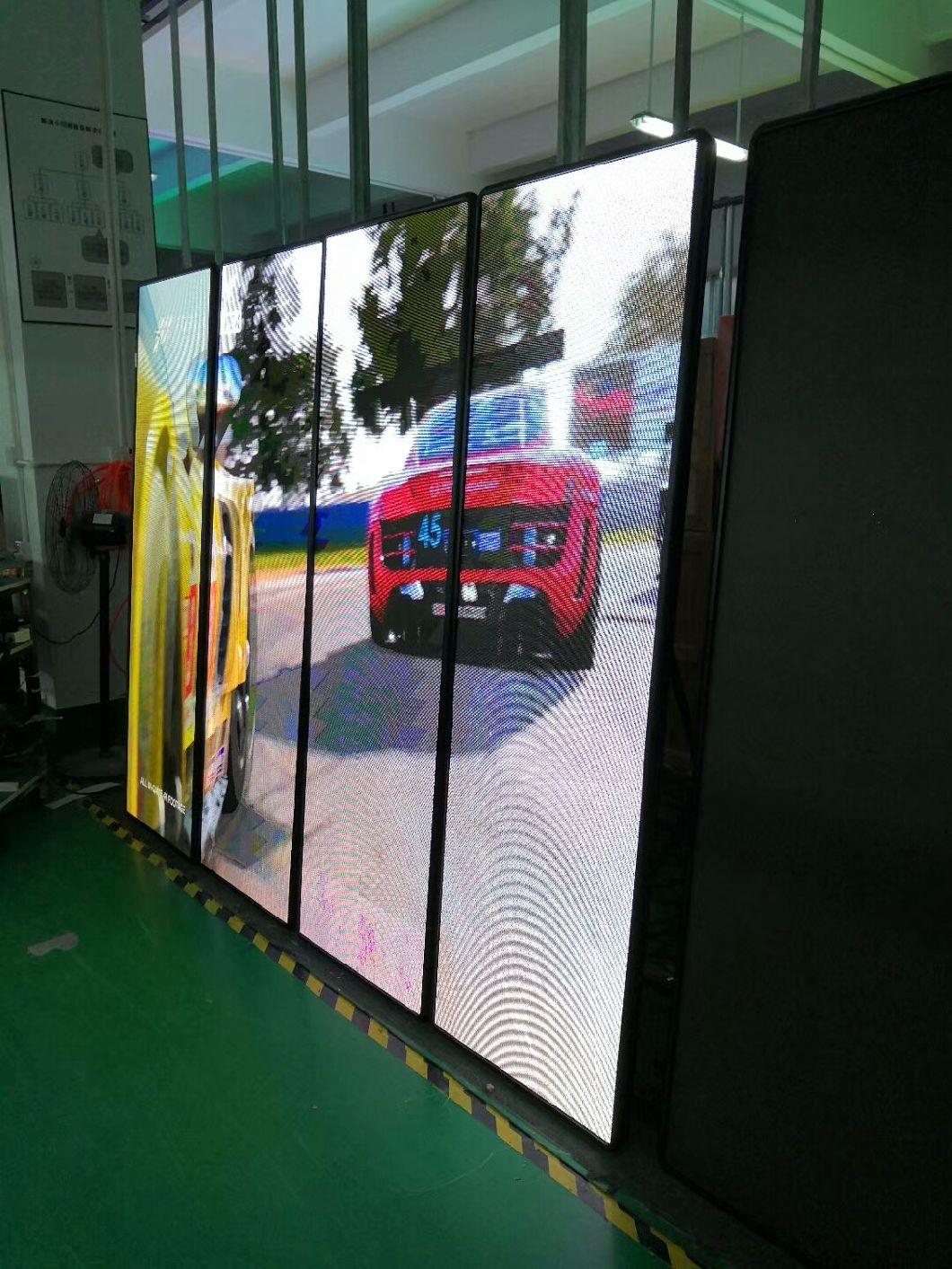

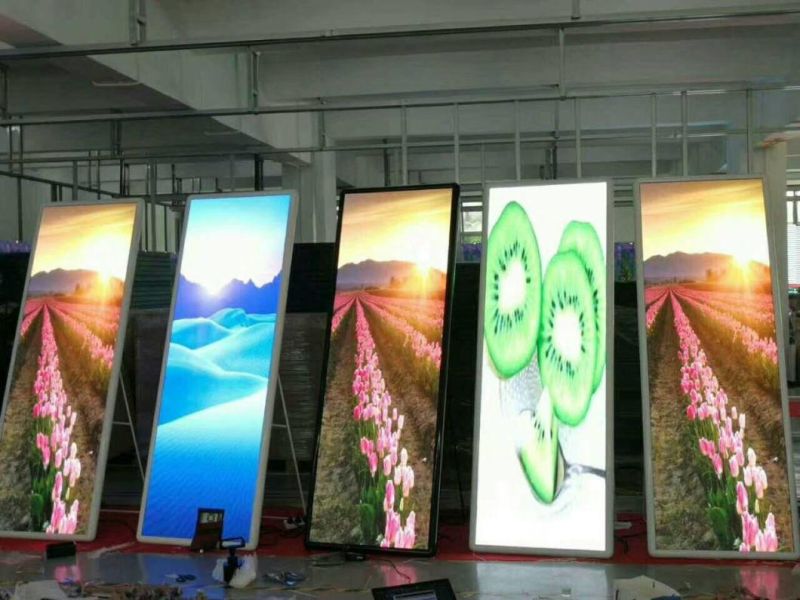

factory aging and testing
Packing and deliver

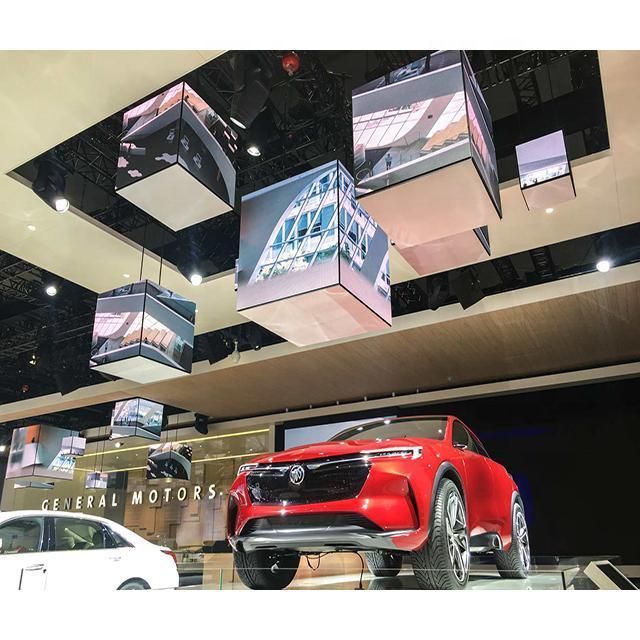

The other shopping mall hot sell item , such as cube led display , cylinder led display

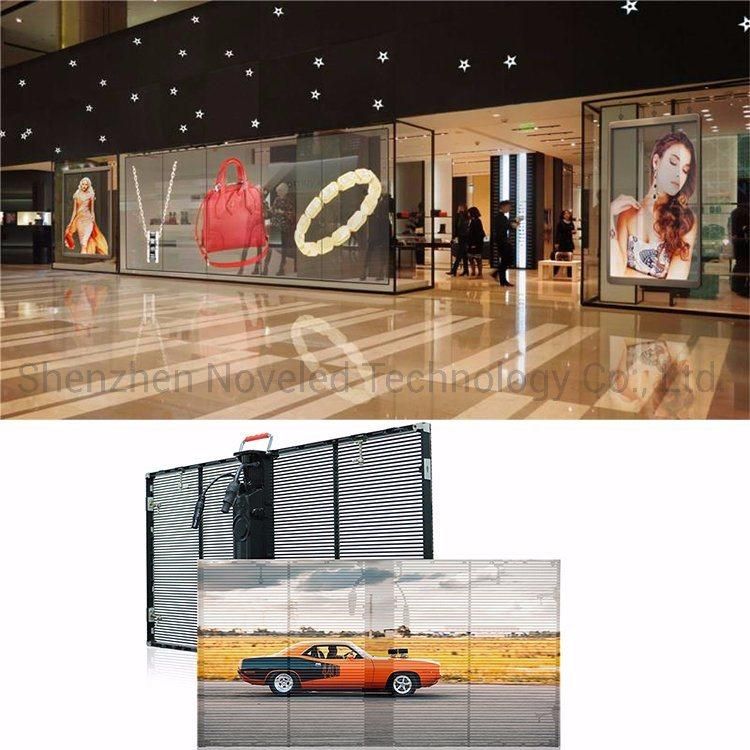

Indoor transparent led display in the shopping mall







the other hot sell indoor and outdoor led display panel

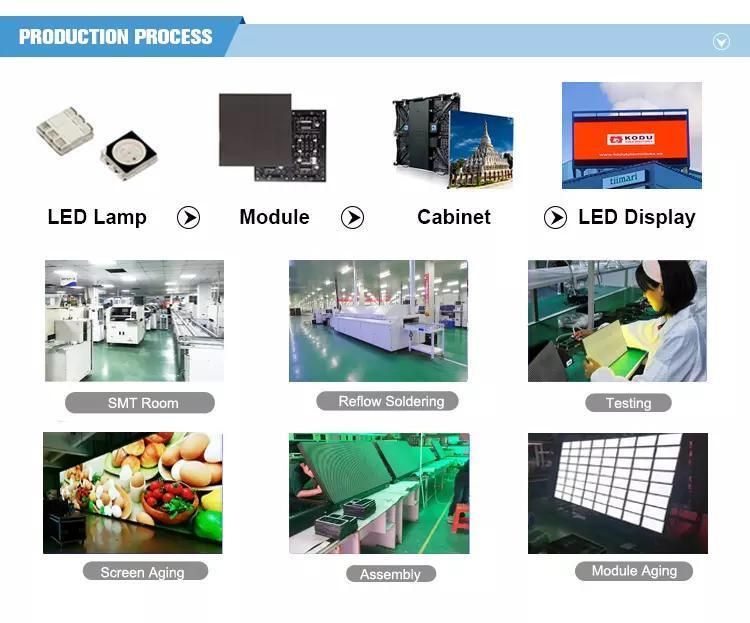

The factory manufature process
