Basic Info.

Model NO. LED poster screen System Operating Platform Windows7/8/10 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, RoHS, CCC, ISO9001 ISO14001 FCC001 ISO14001 FCC Product Name Poster LED Screen Driver IC High Refresh IC Bightness 1000CD/Sqm Grey Scale 65536 Degree Life Time More 100, 000 Hours (80%) Mtbf More 50, 000 Hours Refreshing Rate 3840Hz Transport Package Wooden Case Flight Case and Carton Specification 320*160mm Trademark hongking Origin Shenzhen China HS Code 8528591090 Production Capacity 50000 Sqm/Year

Product Description

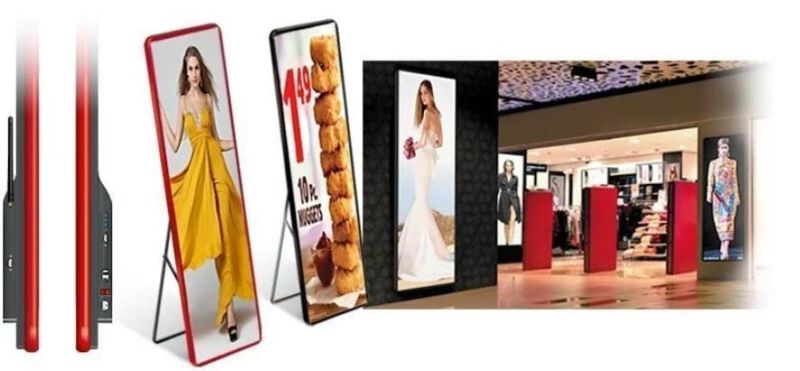

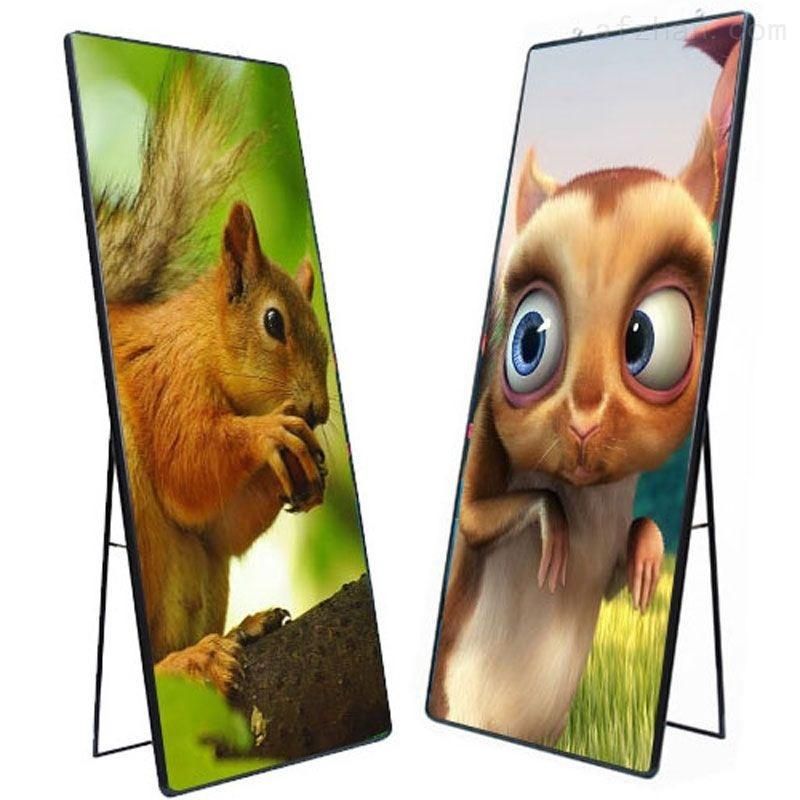

Shops Digital LED Poster Display Screen

Product Description:
Ultra-thin and light-weight, compared with traditional heavy-duty and large LED advertising displays, the poster mirror screen is lighter and more convenient because it can be set up, repositioned and operated very simply. Support Ethernet, SD card, Wifi, HDMI input and 4G remote control input, which can work perfectly online and offline! Multiple installation methods: folding brackets and wall mounting options

1. The automated process
All using SMD process, fully automated machine operation, reducing human error and damage and improves reliability.

2. low failure rate
Using sophisticated type of material, in terms of testing: instrument light intensity distribution, it is a direct measurement of the LED lamp light intensity, viewing angle, wavelength, and other optical properties; aging test LED lamps attenuation; an IC testing stand, strict control the quality of the IC. High-temperature aging at the end of the production process and cabinet vibration test, good control of Weld and other issues.

product Specification:

Pixel Pitch(mm)	P1.86 led poster screen
Pixel Density(dot/M2)	290000(dot/M2)
brightness	900cd/
LED module size (W * H)	320MM(W)* 160MM(H)
module Resolution(W * H)	173dots * 86dots
Pixel configuration	SMD1515
Drive IC	high refresh rate
Cabinet size (W*H)	640mm×1920mm
Cabinet Resolution	346dots * 1032dots
Viewing Angle(V/H)	140 ºC/140 ºC
Screen Power Consumption	Average:300w/set
Input Voltage	AC110V/220V±10%
weight	35KG/set
Operating Temperature	-20ºC~+60ºC
LED Lifetime	>100,000 Hours
MTBF	> 50000 hours
Refresh Rate	3840HZ
Control Method	Nova-star / HD
maintenance	back or front

Application
Widely used in indoor exhibition halls, hotels, shopping malls, supermarkets, multimedia advertisements, studios, public advertisements, etc.

01.Ultra Slim Light Weight Digital LED Poster
Custom made  slim aluminum frame and high precision cabinet design
LED poster display is easy transport with wheels on bottom
The LED poster is also light weight design with 35kg per set


02. Plug Play  LED Poster screen
Plug  Play Solution via USB, the LED poster can automatically play video, pictures, text, and other programs
once you connect the plug without repeating software settings and other work.
Simple setting, unique design, and user-friendly software, LED poster is an LED display product that is very suitable for end-users to use.

03. Digital LED Poster with Multiple Control Solutions
LED poster display supports HDMI/LAN/WiFi/USB Control

With built-in synchronous and asynchronous controller, the LED poster can be living streaming for events, or advertising media player without PC

Supports Windows system PC  mobile App(IOS/Android)

4G module controller for remote control(Optional)

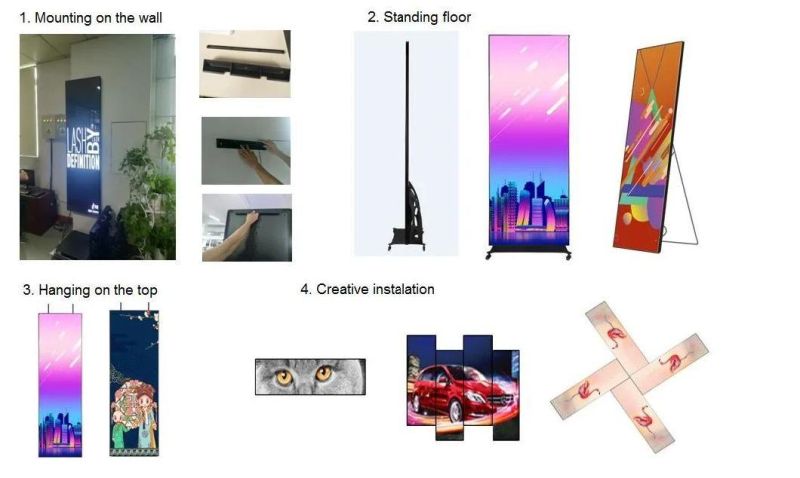

04. Flexible Installation for Digital LED Poster
led poster display supports multiple installations

Freestanding: no need extra structure, more easier and simpler

Hanging: from the ceiling for shop window advertising

Wall-mounted: perfect for indoor advertising applications

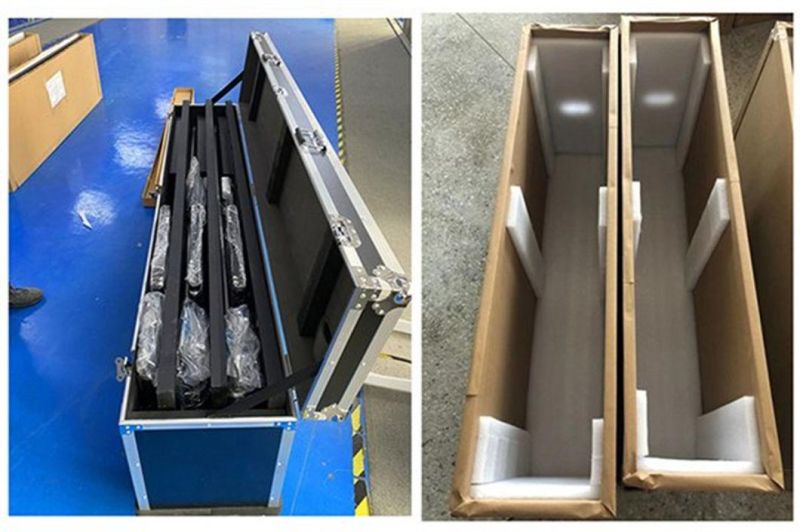

product packing

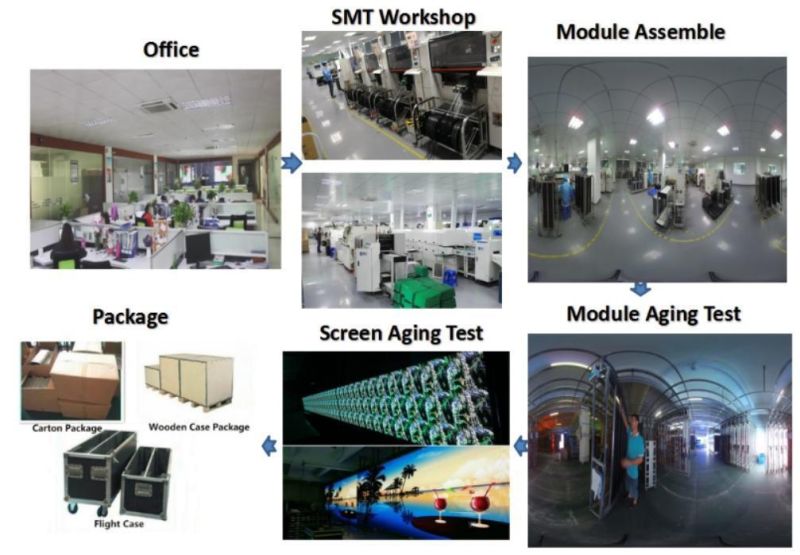

workshop show :


 Company descripition:
HONGKINGLED is a publicly listed LED display manufacturer. Our facilities cover an area of 1000 square meters. Our company strives to deliver stunning LED solutions that can satisfy all customer requirements. Standardization and flexible production allow us to offer competitive prices for a wide range of high quality products. Our valued clients can enjoy the benefits of attentive service and prompt delivery. For the past 6 years, we have made steady progress. Ingenuity and perseverance have firmly established us as pioneers in the LED display industry. Our company is dedicated to the research and development of LED related technologies. HONGKINGLED products are approved by CE, CCC, EMC and FC. We are fully certified by ISO standards.
