• Model NO.：SMLN-90W
• Color Temperature：Pure White
• Power：90W
• Technics：Die Cast
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：12
• Usage：Garden, Street, Main Road, High Way
• IP Rating：IP67
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Lamp Luminous Flux(Lm)：16200
• Distance Between Poles：10-15m
• Pole Height：12m
• Solar Cells：Mono or Poly High Efficiency A Grade
• Power Supply：Solar, Wind Power or Grid Power Hybrid Availabel
• Dim/Non-Dim：Both Can Do
• Approval：Ce,RoHS,Coc,IEC Soncap
• OEM/ODM/Customized：Available
• Warranty(Year)：5 Years
• Input Voltage(V)：DC12,24V
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Working Temperature(ºC)：-40ºC - 60ºC
• CRI (Ra>)：90
• Working Lifetime(Hour)：10000
• Beam Angle：145*100°
• Transport Package：Carton, Pallet
• Specification：1593X450X45mm
• Trademark：SunMaster
• Origin：Zhejiang China
• HS Code：9405409000
• Production Capacity：20000,Year
• Package size per unit product：110.00cm * 50.00cm * 20.00cm
• Gross weight per unit product：32.000kg

Basic Info.

Model NO. SMLN-90W Color Temperature Pure White Power 90W Technics Die Cast Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 12 Usage Garden, Street, Main Road, High Way IP Rating IP67 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Lamp Luminous Flux(Lm) 16200 Distance Between Poles 10-15m Pole Height 12m Solar Cells Mono or Poly High Efficiency A Grade Power Supply Solar, Wind Power or Grid Power Hybrid Availabel Dim/Non-Dim Both Can Do Approval Ce/RoHS/Coc/IEC Soncap OEM/ODM/Customized Available Warranty(Year) 5 Years Input Voltage(V) DC12/24V Lamp Luminous Efficiency(Lm/W) 180lm/W Working Temperature(ºC) -40ºC - 60ºC CRI (Ra>) 90 Working Lifetime(Hour) 10000 Beam Angle 145*100° Transport Package Carton, Pallet Specification 1593X450X45mm Trademark SunMaster Origin Zhejiang China HS Code 9405409000 Production Capacity 20000/Year

Packaging & Delivery

Package size per unit product 110.00cm * 50.00cm * 20.00cm Gross weight per unit product 32.000kg

Product Description

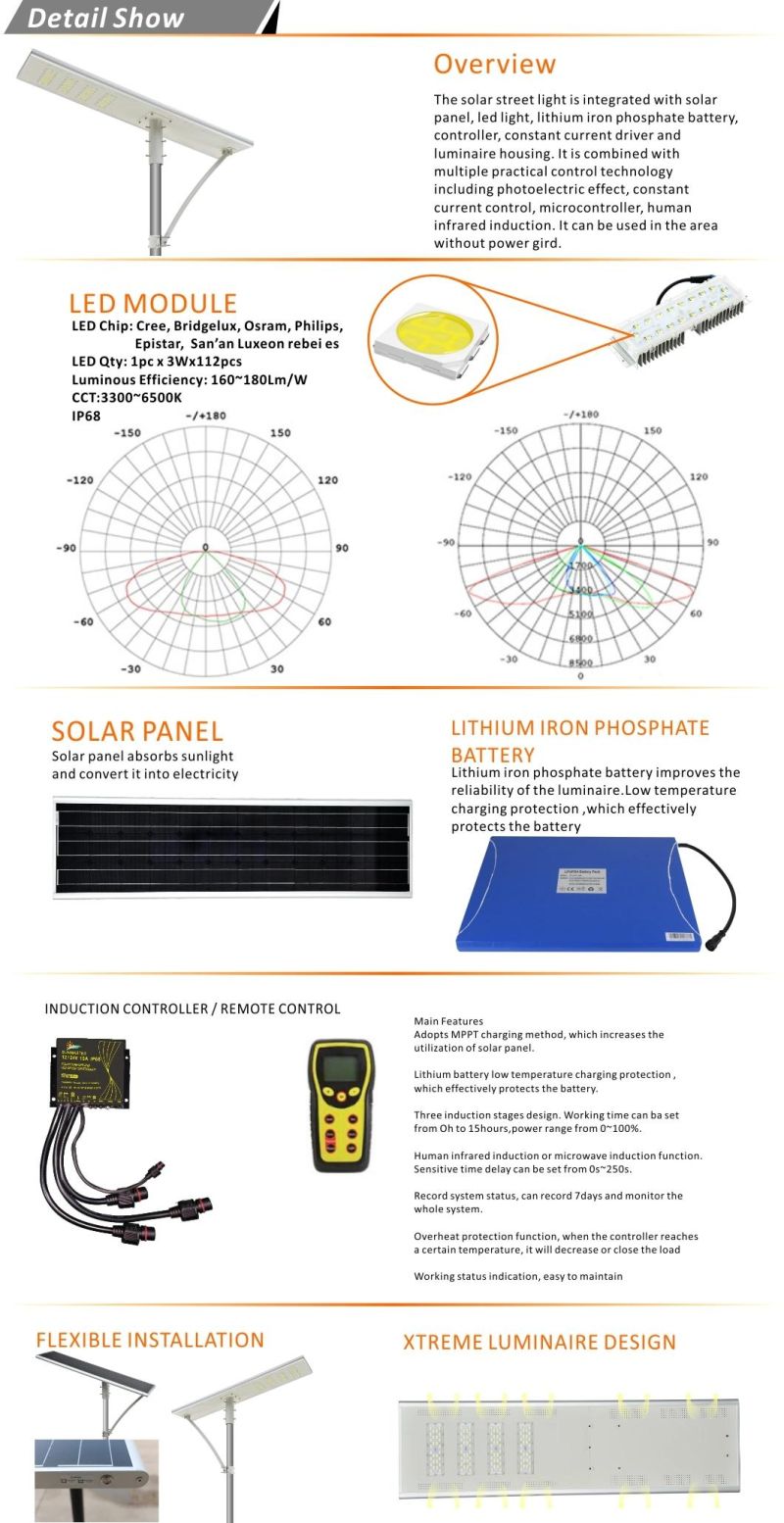

1.Integrated design solar panel,LED chips, battery,cotroller,motion sensor etc.
2.Without extra cable connection,save shipping and labour cost

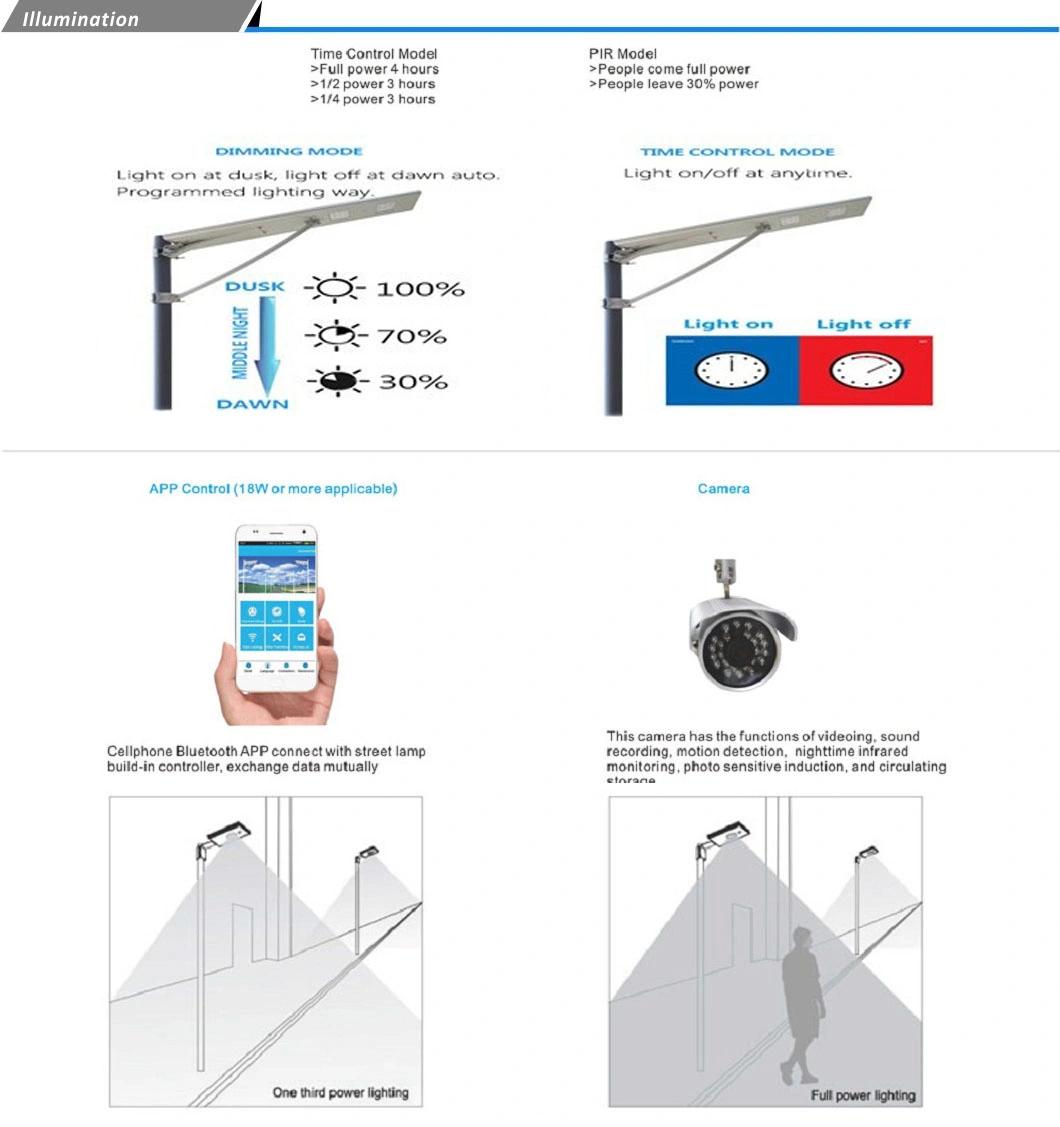

3.Energy saving by PIR motion sensor and environment friendly.
4.High capacity and long life Lithium battery,more than 8 years working life and high-temperature resistance, make the whole light a longer life.

Model NO.	SMLN-90W	Battery Type:	LiFePO4 27Ah/25.6V
Power:	90W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	1593*450*45mm
Viewing Angle:	120	Packing Dimension:	1640*505*150mm
Working temperature :	-20 ºC~ +70ºC	Product Weight	25.4kg
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	9-12m
Solar Panel:	18V 120W Mono-crystalalline	Warranty:	3 years
