• Model NO.：SMLN-20W
• Color Temperature：Cool White
• Power：20W
• Technics：Die Cast
• Illumination Time：12h
• Cell Type：LiFePO4 Lithium
• Charging Time (H)：8
• Usage：Garden, Street, Port Parking Lots Path
• IP Rating：IP65
• Certification：CE, RoHS, IEC Soncap
• Voltage：12,24V
• With Light Source：With Light Source
• Input Voltage(V)：DC12,24V
• Lighting Area：100m²
• Lighting Time：12hrs Each Day
• Lamp Luminous Efficiency(Lm/W)：180lm,W
• Approval：Ce,RoHS,Coc,IEC Soncap
• Solar Cells：Mono or Poly High Efficiency A Grade
• Warranty(Year)：10 Years
• Working Temperature(ºC)：-40ºC - 60ºC
• Working Mode：Full Power and Energy Saving Mode
• Battery：12ah
• Controller：PWM,MPPT
• Maintenance：10 Years Free Maintenance
• Back up Days：3 Days
• LED Chip Brand：USA Bridgelux 210lm,W
• CRI (Ra>)：75
• Transport Package：Carton, Pallet
• Specification：710X405X75mm
• Trademark：Sunmaster
• Origin：Zhejiang, China
• HS Code：9405409000
• Production Capacity：200000
• Package size per unit product：110.00cm * 50.00cm * 20.00cm
• Gross weight per unit product：32.000kg

Basic Info.

Model NO. SMLN-20W Color Temperature Cool White Power 20W Technics Die Cast Illumination Time 12h Cell Type LiFePO4 Lithium Charging Time (H) 8 Usage Garden, Street, Port Parking Lots Path IP Rating IP65 Certification CE, RoHS, IEC Soncap Voltage 12/24V With Light Source With Light Source Input Voltage(V) DC12/24V Lighting Area 100m² Lighting Time 12hrs Each Day Lamp Luminous Efficiency(Lm/W) 180lm/W Approval Ce/RoHS/Coc/IEC Soncap Solar Cells Mono or Poly High Efficiency A Grade Warranty(Year) 10 Years Working Temperature(ºC) -40ºC - 60ºC Working Mode Full Power and Energy Saving Mode Battery 12ah Controller PWM/MPPT Maintenance 10 Years Free Maintenance Back up Days 3 Days LED Chip Brand USA Bridgelux 210lm/W CRI (Ra>) 75 Transport Package Carton, Pallet Specification 710X405X75mm Trademark Sunmaster Origin Zhejiang, China HS Code 9405409000 Production Capacity 200000

Packaging & Delivery

Package size per unit product 110.00cm * 50.00cm * 20.00cm Gross weight per unit product 32.000kg

Product Description

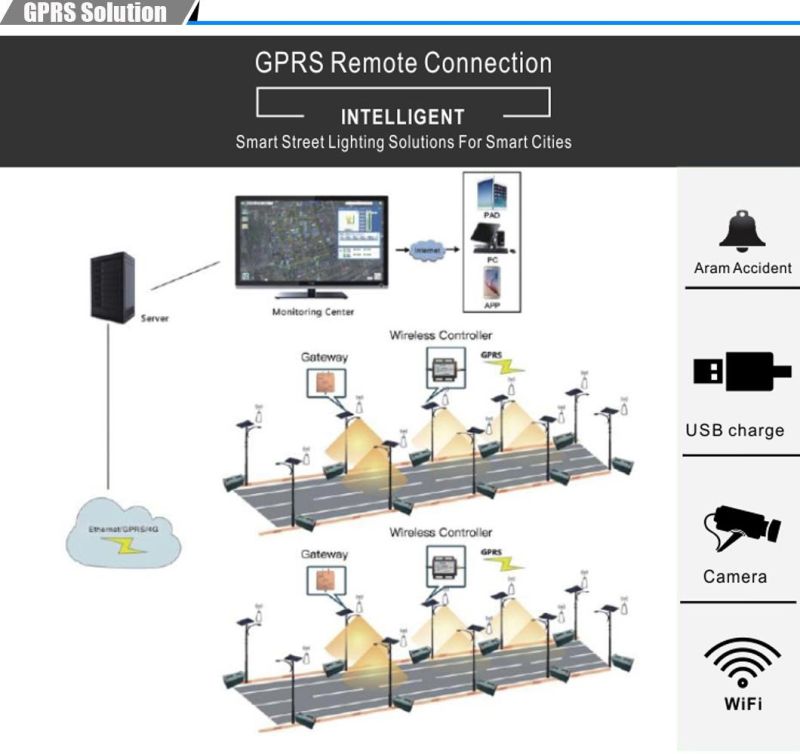

1.Pole mounted for outdoor use,GPRS monitoring remote control.
2.Fmaintance and easy to install.
3.Powered by Solar energy,environment friendly,inexhaustible,without any harmful substance.
4. Bridgelux/Cree/Samsung/Nicha/Epstar/Osram LED chip available

Model NO.	SMLN-20W	Battery Type:	LiFePO4 18Ah/12.8V
Power:	20W	Charging Time:	6-10 hours
Color Temperature:	6000-6500K	Discharging Time:	10-12 hours
Certificate:	CE/ROHS/IP65	Product Dimension:	710*405*75mm
Viewing Angle:	120	Packing Dimension:	750*450*120mm
Working temperature :	,-20 ~ +70	Product Weight	12KG
Lamp Efficiency:	170 lm/w	Material:	Aluminum Alloy
Led chip brand:	USA  Bridgelux LED chip	Install Height:	5-6 m
Solar Panel:	18V 50W Mono-crystalalline	Warranty:	3 years
