80W Integrated Solar Street Lamp with Smart Sensor
Shenzhen Alishine Energy Technology Co., Ltd.- Light Source：LED Light
- Color Temperature(CCT)：Cool White
- Lamp Body Material：Aluminum Alloy
- Lamp Power：80W
- Power Supply：Solar
- Average Life：50000h
Base Info
- Model NO.：AL-X80
- Application：Highway, Square, Garden
- IP Rating：IP65
- Certification：CE, RoHS, ISO
- Voltage：12V
- Solar Panel Life Time：25 Years
- Battery Type：Lithium Battery 12V 48ah
- LED Chip Brand：Bridgelux From USA with High Brightness
- Lumen (Lm)：110-120lm,W
- Charge Time(by Sun)：6-7hours (with Enough Strong Shine)
- Warranty Period：3years
- Mounting Height(M)：10m
- Space Between Light(M)：30-35m
- Net Weight：28.0kg
- Gross Weight for Carton：32.Kg
- Unit Size：1469*420*395mm
- Carton Size：1530*130*520mm,710*420*310mm
- Q′ty/CTN：1sets,CTN
- 40gp Container：376PCS
- 20gp Container：155PCS
- Transport Package：Neutral
- Origin：China
- HS Code：9405409000
- Production Capacity：80000 Pieces,Year
Description
AL-X80(Time control)CIR >70Ra Solar panel Max power: 36V100W (high efficiency monocrtystalline silicon ) Sensor distance 15-20M Solar panel Life time: 25 years Lamps material of main: aluminium alloy Battery Type: LiFePO4 lithium battery 24V 21AH Certificate: CE / ROHS / IP65 LED Max power: 12V 80W Warranty period: 3years Led chip brand: Bridgelux high power LED Mounting height(m): 8-10m Lumen (LM): 110-120lm/w Space between light(m): 15-20MM LED Life time: 50000hours Hoop diameter(mm) 60-76mm Lighting Viewing Angle: 65°x 120°(bar wing street light distribution ) N.W 17.8KG Charge time(by sun): 6-7hours (with enough strong shine) Unit size 1150*450*135mm Lighting time: Full power 15 hours ( save mode >30hours ) carton size 1190*490*220mm Working TEMP( ºC ) -25~+65ºC Q'ty/ctn: 1sets/ctn Charge / Storage 0 - 45ºC GW.for carton: 19.8KG CCT (k): 6500k-7000k 20GP container: 235PCS Working mode Working time :
The lamp will turn on at to matically after sunset, and off when sunrise.
Default working mode :
During working time ,when there are movements detected ,the lamp switches to 100% capacity ,when movements gone ,the lamp turns to 30% capacity to save power. 40GP container: 470PCS
Application of Government Projects High Brightness All-in-One Integrated Solar LED Street Light Outdoor Lamp Garden Lighting for Colombia India Nigeria Kenya Argentina :
street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting;
boat dock lighting;sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.

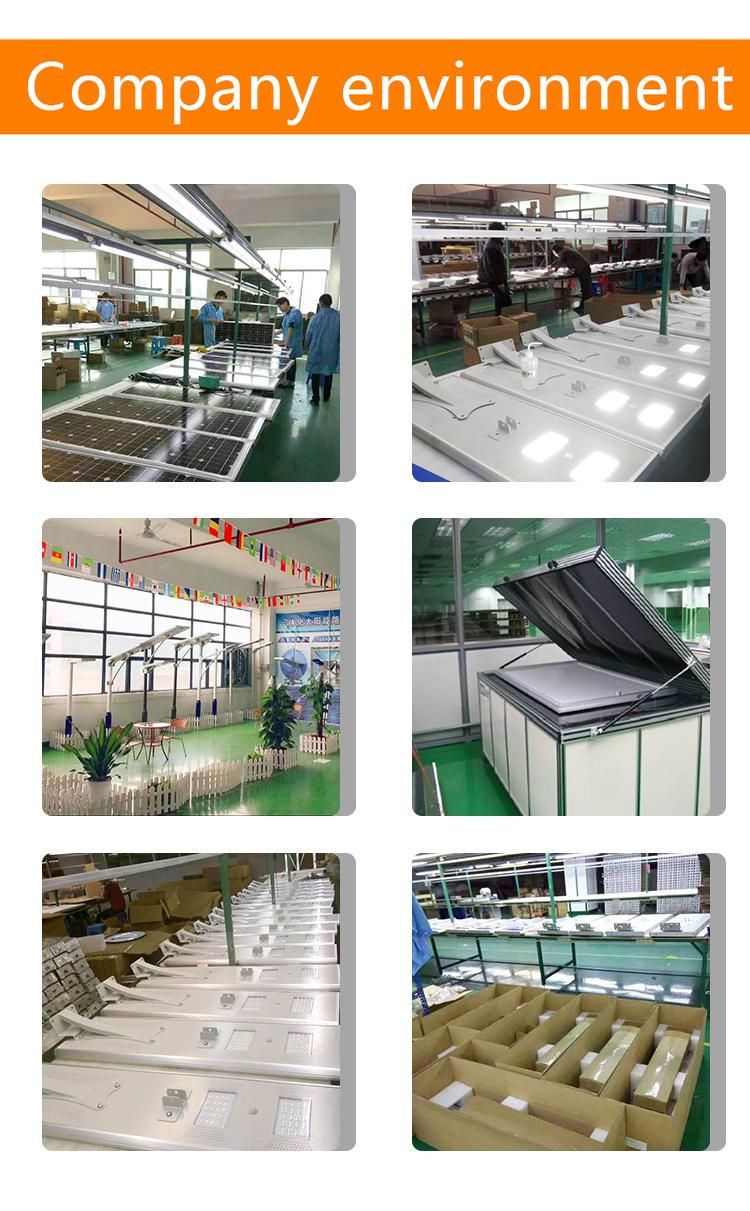

COMPANY INFO- ALISHINE
Shenzhen Alishine Energy Technology Co., Ltd was Established in 2016, in one group with Shangqi company established in 2004, our factory is located in ShenZhen,China,with convenient transportation access,
Covering an area of 4000 square meters, we now have over 94 employees, our company own professional R&D team and sales team,
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee all customer satisfaction.
Our main products are integrated solar street light, solar garden light, all in one solar street light, solar yard/apple/peach light,semi-separate solar street light, etc,
All of our solar lights have approved CE ROHS IP65 LVD IEC EMC and IES Certificates ..
Our products have been sold over 60 countries and our company brand--"Alishine" awarded a lots of reputation.
If you are interested in any of our products or would like to make your import business more easily, please feel free to contact us by Mobile
We are looking forward to forming successful business relationships with new clients around the world in the near future.
Why choose us - ALISHINE ?
1. About 13 years specializing in solar lighting system.
2. Complete supplying system with full range of integrated solar street lights,all in one solar led street/garden light,solar yard/moon/apple/peach,etc.
3. Strict process and quality control.
4. Good raw materials used in production.
5. Strong design and production capability.
Our service- ALISHINE
1. Reply your enquiry in 24 working hours.
2. Well-trained and passional sales & after- sale services,we can do everything to meet your needs.
3. Customized design is available.
4. Shipping port: Shenzhen,China mainland.
5. SAMPLES are prepared.Discouts are offered based on order quantities.
6. MOQ: 1pcs.
Shenzhen Alishine Energy Technology Co.,Ltd
Eda Feng
Add:4F,Block B1,Xingjianxing Science&Technology Park,No. 3333,Guangqiao Road,Guangming District,S henzhen.
