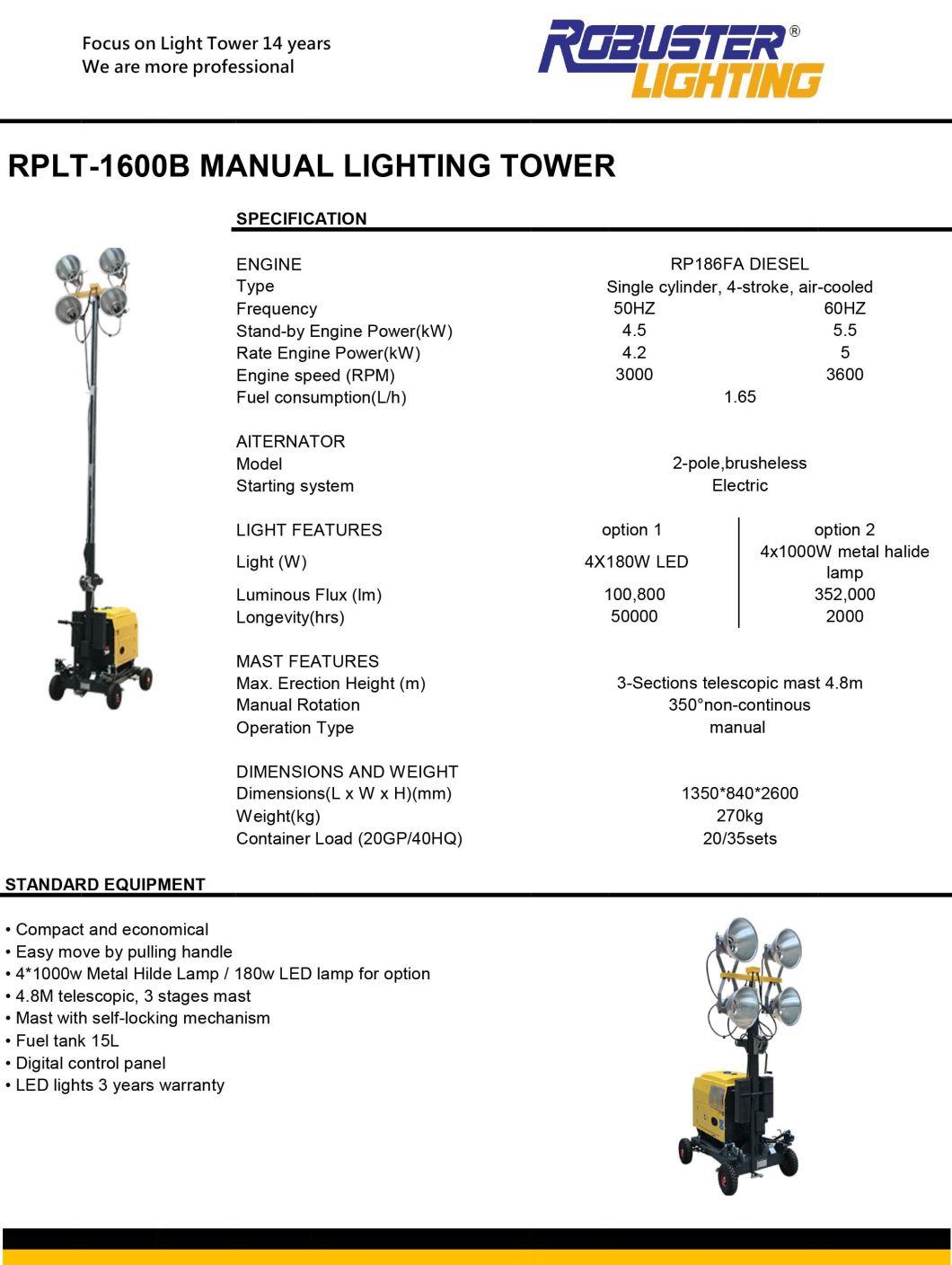

• Model NO.：RPLT-1600
• Rpm：3000,3600
• Alternator：2-Pole
• Voltage：120,220,230,240V
• Fuel Capacity：15L
• Transport Package：Plywood Pallet , Plywood Case , Cartons
• Specification：1350*840*2600
• Trademark：Robust Power
• Origin：China
• HS Code：9405409000
• Production Capacity：200set,Month

Basic Info.

Model NO. RPLT-1600 Rpm 3000/3600 Alternator 2-Pole Voltage 120/220/230/240V Fuel Capacity 15L Transport Package Plywood Pallet / Plywood Case / Cartons Specification 1350*840*2600 Trademark Robust Power Origin China HS Code 9405409000 Production Capacity 200set/Month

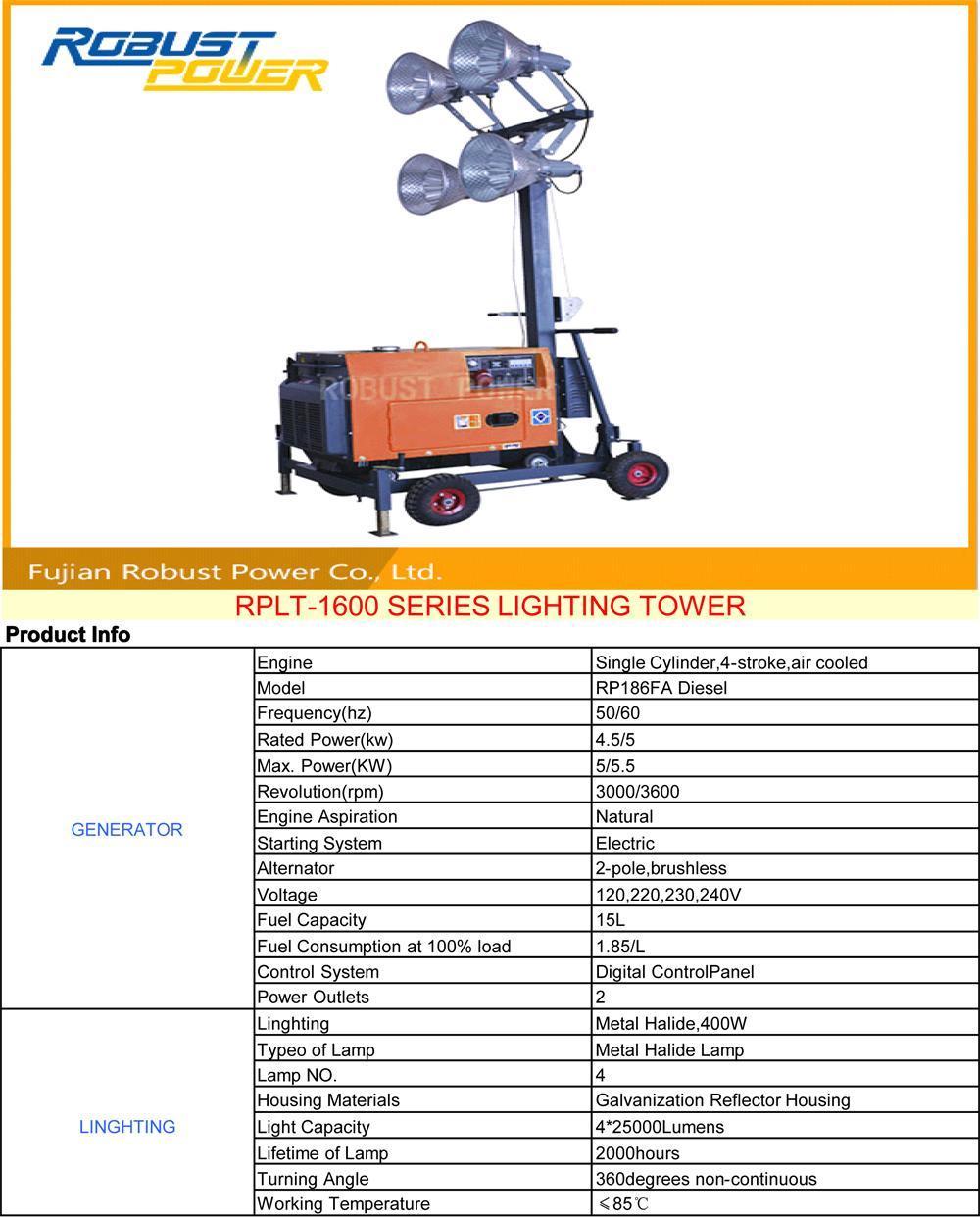

Product Description

-Compact and economical
-Easy move by pulling handle
-4* 1000w Metal Hilde Lamp 1180w LED lamp for option
-4.8M telescopic, 3 stages mast
-Mast with self-locking mechanism
-Fuel tank 15L
-Digital control panel

Light
Housing Material	Aluminium die cast
Type of lights	LED Lamp/Metal Halide Lamp/Moon Light
Power of lights	4*160W LED lamps                      4*400W Metal Halide Lamp        2*1000W Moon Light
Lumen Output	4*19200lm/ 4*25,000lm/2*110,000lm ( total )
Voltage	AC 110V-240V
Frequency	50/60Hz
Longevity	3 years/2000 Hrs/2000 Hrs
Waterproof grade	IP54
Color temperature	2100K-5700K

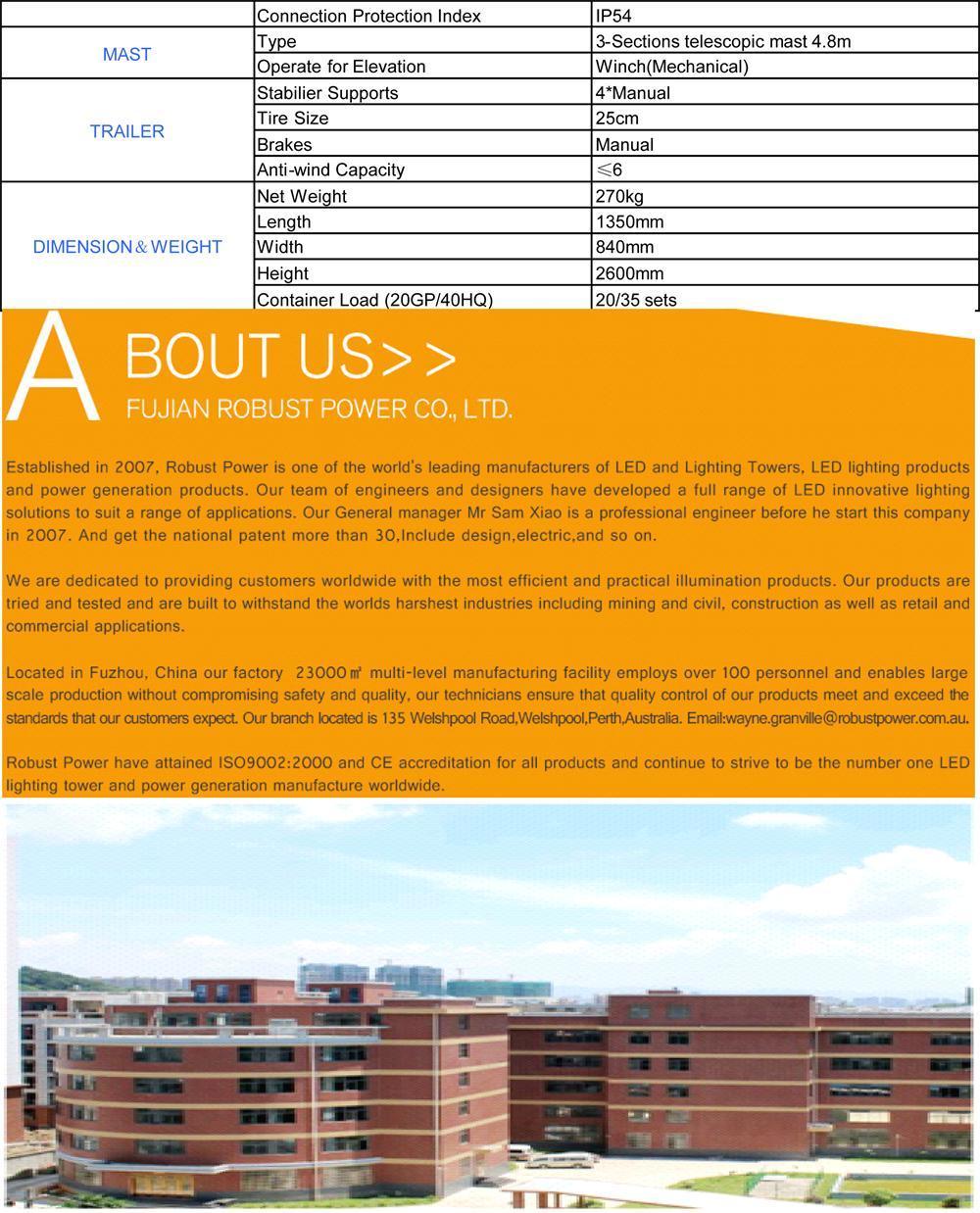

Mast
Material of mast	Galvanized iron
Mast lifting type	Manual mast
Mast section	3-section telescopic
Max. height of mast	4.8meters
Mast rotation system	Winch(Mechanical)
Engine
Engine model	RP186FA Single cylinder, 4-stroke, air cooled
Start system	Electric (Battery start)
Engine speed	3000rmp-3600rmp
Rated power	4.5KW/50HZ, 5KW/60HZ
Insulation	H
Fuel tank capacity	22L
Fuel consumption	1.85L/hr
Maximum Working Hours	10H
Waterproof grade	IP54
Trailer
Stabiliser Supports	4*Manual
Tire Size	25cm
Brakes	Manual
Packing
Net weight	270 kg
Dimention	1350X840X2600 MM
